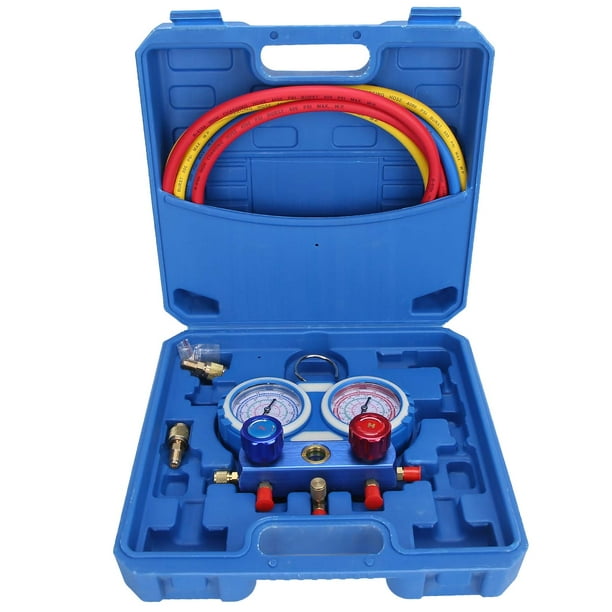

<div>Air Conditioning Manifolds,Refrigerant Gauge Valve,Fluoridation Gauge Valve,Air Conditioner Fluorine Gauge,Fluoridation Refilling Manifold,Refrigeration Equipment</div>

<ul><li>"Producto de importación</li><li>Specification:Item Type: Air Conditioning Manifold Set</li><li>Material: Copper + Rubber</li><li>Color: Blue</li><li>Weight: Approx. 2600g / 91.7oz</li><li>Size: Approx. 18x15x4cm / 7.1x5.9x1.6in</li><li>Purpose: Fluoride Pressure Measurement in Refrigeration Equipment</li><li>Accuracy Error Level: 1.5</li><li>Scope of Application: R12 / R22 / R134a / R404z / 410a</li><li>Connector Specification: 1/4 SAE x 1/4 SAE</li><li>Maximum Pressure Value: 800PSI</li><li>Burst Pressure Value: 4000PSI</li><li>Low Pressure Valve Display Value: -1-35bar -30-500psi</li><li>Display Value Of High Pressure Valve: -1-55bar -30-800psi</li><li></li><li>How to Use:</li><li>Before connecting to the system, please check whether the pointer of the pressure gauge is at the zero position. Otherwise, open the cover and adjust the zero adjustment screw to set the pointer to the zero position.</li><li></li><li>Connect with the system:</li><li>1. First close the low pressure valve blue and high pressure valve red;</li><li>2. After connecting the low pressure interface to the blue tube low pressure quick connector, connect it to the system low pressure and lock it;</li><li>3. The high-pressure interface is connected with the red tube high-pressure quick connector and then connected to the system high-pressure and locked;</li><li>4. The refrigerant interface is connected with the yellow tube and the vacuum pump and locked.</li><li></li><li>System vacuum note: this step must be carried out under the normal pressure of the system, otherwise the system should be decompressed first</li><li>1. After completing the above connections, turn on the vacuum pump;</li><li>2. Open the low pressure valve blue, high pressure valve red, and then open the high and low pressure quick connector, at this time the system starts to vacuum;</li><li>3. After a certain period of time 10-30min, check whether the system is completely vacuumed. If it is not vacuumed, check the leaks of the system and re-evacuate after repair;</li><li>4. At the same time, close the high and low pressure valves, and finally close the vacuum pump.</li><li></li><li>System filled with refrigerant</li><li>1. Disconnect the yellow tube from the vacuum pump, then connect it to the refrigerant bottle and tighten it, first open the refrigerator bottle position in the forward direction, open the valve core on the meter group, and exhaust the air in the yellow tube;</li><li>2. Turn the refrigerant bottle upside down, open the low-pressure valve and high-pressure valve to add refrigerant;</li><li>3. After reaching the specified amount according to the filling amount provided by each system manufacturer, close the high-pressure valve and low-pressure valve, and set the refrigerant bottle upright at the same time;</li><li>4. After turning on the system for a period of trial operation about 5-10min, check the system pressure and temperature;</li><li>5. If the refrigerant is insufficient, put the refrigerant bottle upright, slowly open the low-pressure valve, at this time it is strictly forbidden to open the high-pressure valve add a proper amount of gas refrigerant;</li><li>6. If it is too high, close the cylinder, slowly open the high-pressure valve, discharge an appropriate amount of refrigerant from the valve core of the meter group at this time, pay attention to the sprayed refrigerant hurting people, then close the high-pressure valve, and then re-test; repeat the above until it is normal .</li><li>7. After the operation is normal, close the refrigerant bottle and the high<br>Producto de importación No hay factura disponible;"</li></ul>

Características Adicionales

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

brand

Fluoridation Gauge Valve, Fluoridation Refilling Dual Fluoridation Refilling Manifold Air Conditioning Manifolds For Kitchen

"Producto de importación$$Specification:Item Type: Air Conditioning Manifold Set$$Material: Copper + Rubber$$Color: Blue$$Weight: Approx. 2600g / 91.7oz$$Size: Approx. 18x15x4cm / 7.1x5.9x1.6in$$Purpose: Fluoride Pressure Measurement in Refrigeration Equipment$$Accuracy Error Level: 1.5$$Scope of Application: R12 / R22 / R134a / R404z / 410a$$Connector Specification: 1/4 SAE x 1/4 SAE$$Maximum Pressure Value: 800PSI$$Burst Pressure Value: 4000PSI$$Low Pressure Valve Display Value: -1-35bar -30-500psi$$Display Value Of High Pressure Valve: -1-55bar -30-800psi$$$$How to Use:$$Before connecting to the system, please check whether the pointer of the pressure gauge is at the zero position. Otherwise, open the cover and adjust the zero adjustment screw to set the pointer to the zero position.$$$$Connect with the system:$$1. First close the low pressure valve blue and high pressure valve red;$$2. After connecting the low pressure interface to the blue tube low pressure quick connector, connect it to the system low pressure and lock it;$$3. The high-pressure interface is connected with the red tube high-pressure quick connector and then connected to the system high-pressure and locked;$$4. The refrigerant interface is connected with the yellow tube and the vacuum pump and locked.$$$$System vacuum note: this step must be carried out under the normal pressure of the system, otherwise the system should be decompressed first$$1. After completing the above connections, turn on the vacuum pump;$$2. Open the low pressure valve blue, high pressure valve red, and then open the high and low pressure quick connector, at this time the system starts to vacuum;$$3. After a certain period of time 10-30min, check whether the system is completely vacuumed. If it is not vacuumed, check the leaks of the system and re-evacuate after repair;$$4. At the same time, close the high and low pressure valves, and finally close the vacuum pump.$$$$System filled with refrigerant$$1. Disconnect the yellow tube from the vacuum pump, then connect it to the refrigerant bottle and tighten it, first open the refrigerator bottle position in the forward direction, open the valve core on the meter group, and exhaust the air in the yellow tube;$$2. Turn the refrigerant bottle upside down, open the low-pressure valve and high-pressure valve to add refrigerant;$$3. After reaching the specified amount according to the filling amount provided by each system manufacturer, close the high-pressure valve and low-pressure valve, and set the refrigerant bottle upright at the same time;$$4. After turning on the system for a period of trial operation about 5-10min, check the system pressure and temperature;$$5. If the refrigerant is insufficient, put the refrigerant bottle upright, slowly open the low-pressure valve, at this time it is strictly forbidden to open the high-pressure valve add a proper amount of gas refrigerant;$$6. If it is too high, close the cylinder, slowly open the high-pressure valve, discharge an appropriate amount of refrigerant from the valve core of the meter group at this time, pay attention to the sprayed refrigerant hurting people, then close the high-pressure valve, and then re-test; repeat the above until it is normal .$$7. After the operation is normal, close the refrigerant bottle and the high<br>Producto de importación No hay factura disponible;"
