<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Fuel Gauge Specification - Operating Voltage9~32VDC- Operating current70mA(24V);- Operating temperature-30~+75- Storage temperature-40~+85- Signal: 0-190ohm- Backlight: 8 Color LED- Range: Empty to 1/2 to Full Operation: 1, Press the Mode button (less than 1 second) to change the backlight color: Backlight changed in sequence: red (default) green blue white yellow yellow green orange Purple (automatic). Automatic: As the gauges was set with the automatic , the backlight will be off for 2 seconds then lighten up, And will switch the backlight color as above sequentially.2Users could select the input resistance as downbelow operations if you have Fuel /Water/Sewagelevel gauge.Hold the Mode button for 3 seconds toenter the setting mode, back light flickering for a while.The needle point at the E position, and you could selectthe corresponding parameter via pressing the button as down below form. Gauge Connection: 1Red --+9~32VDC2Black-- Signal Input3Orange--Blacklight+4Blue--Ground- Package: 1 PCS Gauge+Cable+Manual Fuel Level Sensor Specification: - Protection ank: IP67- Resolution range: 21 mm- Assembly: SAE standard 5 holes- Rated current for alarm switch: 500mA- Operating temperatures: - 40 to 85 Celsius- Fit for Fuel Level Gauge and Water Level Gauge- Sensor Length :100mm-600mm- Mounting: 5 pieces of M5 screws and 2 mm thick gasket- Output signal: 0~190 ohm (Standard European), Can be customized: - Sensor Length:100mm, 150mm, 200mm, 250mm, 300 mm ,350 mm ,400mm, 450 mm,500mm, 550mm, 600mm, 650mm, and so on- Output signal: 0~190 ohm (Standard European), 240~33 ohm (Standard American) and so on- The length and output signal of the sensor can be customized, if you need other sizes or output signal, please contact us at any time, we can customize any size for you~~ Attention: - Empty oil level : 0 ohm - Full oil level : 190 ohm - When the oil / water level is empty , there will be a space of 3-15mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~- When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you~ Package: 1 x Sensor 1 x Gasket 5 x Screws</li></ul>

Marca

FabricanteNombre del Fabricante

Peso del Producto Ensamblado

Dimensiones del producto ensamblado

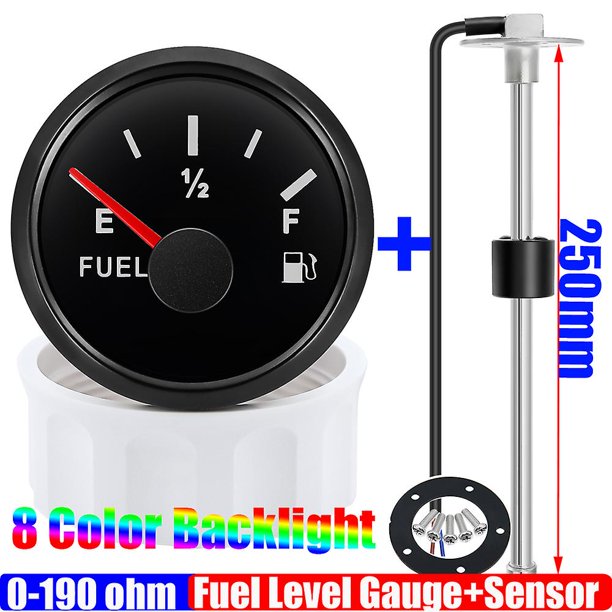

0-190 Ohm Fuel Float Level Sensor+52mm Fuel Level Gauge 8 Color Light Waterproof Pointer Oil Tank Meter Car Boat Marine 12v 24v

Fuel Gauge Specification - Operating Voltage9~32VDC- Operating current70mA(24V);- Operating temperature-30~+75- Storage temperature-40~+85- Signal: 0-190ohm- Backlight: 8 Color LED- Range: Empty to 1/2 to Full Operation: 1, Press the Mode button (less than 1 second) to change the backlight color: Backlight changed in sequence: red (default) green blue white yellow yellow green orange Purple (automatic). Automatic: As the gauges was set with the automatic , the backlight will be off for 2 seconds then lighten up, And will switch the backlight color as above sequentially.2Users could select the input resistance as downbelow operations if you have Fuel /Water/Sewagelevel gauge.Hold the Mode button for 3 seconds toenter the setting mode, back light flickering for a while.The needle point at the E position, and you could selectthe corresponding parameter via pressing the button as down below form. Gauge Connection: 1Red --+9~32VDC2Black-- Signal Input3Orange--Blacklight+4Blue--Ground- Package: 1 PCS Gauge+Cable+Manual Fuel Level Sensor Specification: - Protection ank: IP67- Resolution range: 21 mm- Assembly: SAE standard 5 holes- Rated current for alarm switch: 500mA- Operating temperatures: - 40 to 85 Celsius- Fit for Fuel Level Gauge and Water Level Gauge- Sensor Length :100mm-600mm- Mounting: 5 pieces of M5 screws and 2 mm thick gasket- Output signal: 0~190 ohm (Standard European), Can be customized: - Sensor Length:100mm, 150mm, 200mm, 250mm, 300 mm ,350 mm ,400mm, 450 mm,500mm, 550mm, 600mm, 650mm, and so on- Output signal: 0~190 ohm (Standard European), 240~33 ohm (Standard American) and so on- The length and output signal of the sensor can be customized, if you need other sizes or output signal, please contact us at any time, we can customize any size for you~~ Attention: - Empty oil level : 0 ohm - Full oil level : 190 ohm - When the oil / water level is empty , there will be a space of 3-15mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~- When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you~ Package: 1 x Sensor 1 x Gasket 5 x Screws
