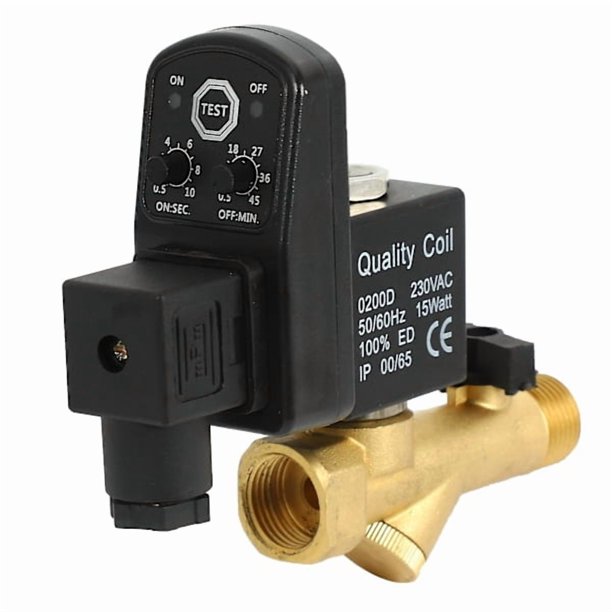

<div>Name: Electronic Drain Valve Model: 507292 Indicator Light: LED indicates on/off Voltage Range: +/-10% Protection Class: IP65 Insulation: Class H Maximum Working Pressure: 1.6 Mpa Maximum Temperature: 90 Celsius Temperature: -40 Celsius to 60 Celsius Maximum Current Consumption: 4 mA Voltage Supply: 24-240V AC/DC 50/60Hz Discharge Time (ON): 0.5--10 seconds Time Interval (OFF): 0.5--45 minutes Widely used in filters, separators, dryers, tanks, drip legs and other components of compressed air systems Clean the installation of compressed air systems. Pay attention to the direction of the valve when installing: the outlet must not use the hose that is not against the action of the air. The power supply should be with the voltage of the drain valve: the positive pole must be connected to contact "1" when using DC. When The drain valve is connected to the cable, brown is L, blue is the neutral wire N, yellow-green is the protective ground GND. Tighten the long screw on the terminal box to prevent water from burning. Warning! When installing the electronic drain valve, make sure that: The compressed air has been discharged (that is, under zero pressure). The power supply has been turned off. Color: Gold + Black Material: Metal Size: Flow: 5 mm Inlet/outlet size: 1/2 inch Package Contents: 1 x Electronic Drain Valve The above package content only, other products are not included. Note: Light and different displays may cause the color of the item in the picture to be slightly different from the real thing. The measurement allowed error is +/- 1-3 cm.</div>

<ul><li><ul><li>Wide Selection – We offer a broad range of products to meet your everyday needs.</li><li>Fast Shipping – Orders are processed quickly and delivered to your door on time.</li><li>Quality Assurance – Each item is carefully reviewed before being listed in our store.</li><li>Customer Support – Our team responds promptly to any questions or concerns you have.</li><li>Easy Returns – We provide a simple, straightforward return and refund process.</li></ul></li></ul>

Marca

Condición

Dimensiones del producto ensamblado

Electronic time-controlled 2-way automatic drain valve for air compressor, AC 220V, 1/2 inch Gold black
