<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Features:
Easy to be used. Can be applied to different types of 3D printers. The default trigger distance is 0.1mm.
High precision, leveling repeatability can be ± 0.05mm.
The average service life of the module is more than 500,000 times.
Compatible with almost all the 3D printer motherboards in the current market.
Good anti-interference ability, will not be affected by the platform
material, ambient light, ambient temperature and humidity, etc.
Adopt matrix grid non-linear leveling method for the automatic leveling. The advantage of this leveling method is that it can do leveling on a non-linear plane, such as an uneven surface printed PCB bed.
Specifications:
Compatible nozzle(Optional): For Makerbot,for MK8, for E3DV6
Weight:12g
Signal line: 1m/39.37inch
Related instructions:
As shown in the figures above
, the black wire frame is the effective printing range of the
printing platform. When the leveling point is set to 4 points in the
system, the value selection points of auto-leveling probe on the
printing platform will be all the red dots as shown above. All these red
dots divide the printing platform into small squares or rectangles.
Then the system will store the data for all points in the system. As a
result, the print platform is divided into multiple small platforms.
After leveling, when the print head moves, the system will take the
measurement data of the four points around the area according to the
real-time running area of the print head, and then calculate the
real-time height compensation amount of the print head according to the
data, to reach the goal of leveling the whole platform. For the Delta
model printers, after detecting, it will expand the dead zone data based
on the surrounding data.
Auto Leveling Parameters
X-axis direction offset: the offset of the leveling probe relative to the print nozzle in the X-axis direction
Y-axis direction offset: the offset of the leveling probe relative to the printing nozzle in the Y-axis direction
Z-axis direction offset: the distance from the platform to the print head when the leveling probe detects the platform
Probe stowed angle: the angle of the servo for the leveling probe when the probe is stowed/retracted/up (can ignore this when not in use)
Probe open angle: the angle of the servo for the leveling probe when the probe is deployed/down (can ignore this when not in use)
Number of leveling points:
The number of probe points that probe on the plane. The actual number
of detected points is equal to the square of the set value. For example,
if set to 4 points, 16 points are actually detected, and the maximum is
9, namely 81 points.
Probe trigger mode: Set the level state when the leveling probe is triggered.
Package Included:
1 x Auto-leveling module
1 x 1 meter signal line
Note: Do not use the leveling sensor when the nozzle temperature is higher than 45 degrees!!!
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

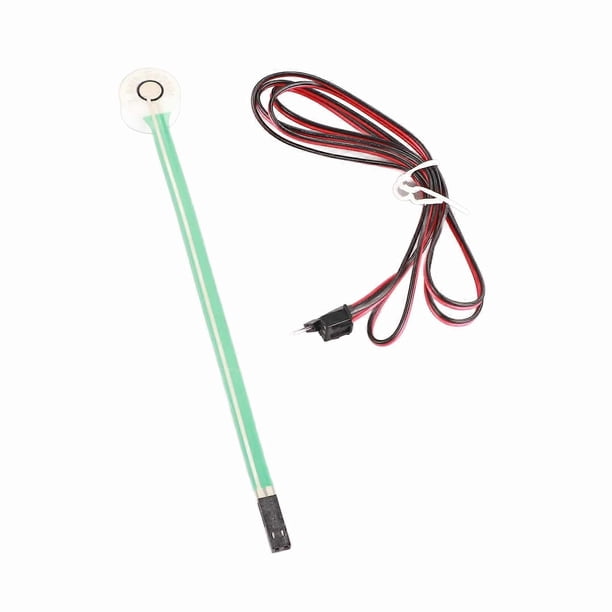

3D Printer Auto Leveling Module, Auto Leveling Probe Type Pressure Sensor (for Makerbot)

Features:
Easy to be used. Can be applied to different types of 3D printers. The default trigger distance is 0.1mm.
High precision, leveling repeatability can be ± 0.05mm.
The average service life of the module is more than 500,000 times.
Compatible with almost all the 3D printer motherboards in the current market.
Good anti-interference ability, will not be affected by the platform
material, ambient light, ambient temperature and humidity, etc.
Adopt matrix grid non-linear leveling method for the automatic leveling. The advantage of this leveling method is that it can do leveling on a non-linear plane, such as an uneven surface printed PCB bed.
Specifications:
Compatible nozzle(Optional): For Makerbot,for MK8, for E3DV6
Weight:12g
Signal line: 1m/39.37inch
Related instructions:
As shown in the figures above
, the black wire frame is the effective printing range of the
printing platform. When the leveling point is set to 4 points in the
system, the value selection points of auto-leveling probe on the
printing platform will be all the red dots as shown above. All these red
dots divide the printing platform into small squares or rectangles.
Then the system will store the data for all points in the system. As a
result, the print platform is divided into multiple small platforms.
After leveling, when the print head moves, the system will take the
measurement data of the four points around the area according to the
real-time running area of the print head, and then calculate the
real-time height compensation amount of the print head according to the
data, to reach the goal of leveling the whole platform. For the Delta
model printers, after detecting, it will expand the dead zone data based
on the surrounding data.
Auto Leveling Parameters
X-axis direction offset: the offset of the leveling probe relative to the print nozzle in the X-axis direction
Y-axis direction offset: the offset of the leveling probe relative to the printing nozzle in the Y-axis direction
Z-axis direction offset: the distance from the platform to the print head when the leveling probe detects the platform
Probe stowed angle: the angle of the servo for the leveling probe when the probe is stowed/retracted/up (can ignore this when not in use)
Probe open angle: the angle of the servo for the leveling probe when the probe is deployed/down (can ignore this when not in use)
Number of leveling points:
The number of probe points that probe on the plane. The actual number
of detected points is equal to the square of the set value. For example,
if set to 4 points, 16 points are actually detected, and the maximum is
9, namely 81 points.
Probe trigger mode: Set the level state when the leveling probe is triggered.
Package Included:
1 x Auto-leveling module
1 x 1 meter signal line
Note: Do not use the leveling sensor when the nozzle temperature is higher than 45 degrees!!!
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
.
