<ul><li>The LD24AJTA_MINI is a continuous conduction mode inductive step-down converter, designed for driving single or multiple series connected LED fficiently from a voltage source higher than the total LED chain voltage.
The device operates from an input supply between 6V and 25V and provides an externally adjustable output current of up to 910mA.
Depending upon the supply voltage and external components, the LD24AJTA_MINI can provide more than 22 of output power.
6-25V 910mA Step-down High Brightness LED Driver with 5000:1 Dimming
Working voltage : DC 6-25V(Perfect for 6V 9V 12V 18V 24V LED Driver)
Output Current: 30-910MA;By changing the RCS resistance, the maximum current can reach 1.2A
Maximum output power: 22W(24V)
Current regulation: 1 through adjustable resistance; 2 through PWM control
Single pin on/off and brightness control using DC voltage or PWM
Up to 1MHz switching frequency
Typical 5% output current accuracy
Inherent open-circuit LED protection
High efficiency (up to 97%)
High-Side Current Sense
Hysteretic Control: No Compensation
Adjustable Constant LED Current
Typical application:
Low voltage replacement LEDs
Automotive lighting
Low voltage industrial lighting
LED back-up lighting
Illuminated signs
SELV lighting
LCD TV backlighting
By modifying the RCS potentiometer, the maximum output current can be adjusted to 1.2A (pay attention to enhance heat dissipation)
Color: White
Material: PCB
Specification: 5 pieces
Package Contents:

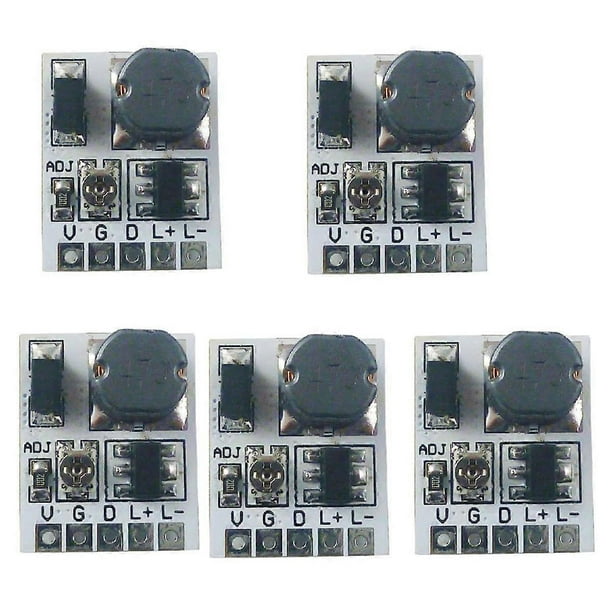

5*LED Driver Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

LD24AJTA_MINI DC 6-25V LED Dimming Control\nLD24AJTA_MINI DC 12V 24V LED Dimming Control

The LD24AJTA_MINI is a continuous conduction mode inductive step-down converter, designed for driving single or multiple series connected LED fficiently from a voltage source higher than the total LED chain voltage.
The device operates from an input supply between 6V and 25V and provides an externally adjustable output current of up to 910mA.
Depending upon the supply voltage and external components, the LD24AJTA_MINI can provide more than 22 of output power.
6-25V 910mA Step-down High Brightness LED Driver with 5000:1 Dimming
Working voltage : DC 6-25V(Perfect for 6V 9V 12V 18V 24V LED Driver)
Output Current: 30-910MA;By changing the RCS resistance, the maximum current can reach 1.2A
Maximum output power: 22W(24V)
Current regulation: 1 through adjustable resistance; 2 through PWM control
Single pin on/off and brightness control using DC voltage or PWM
Up to 1MHz switching frequency
Typical 5% output current accuracy
Inherent open-circuit LED protection
High efficiency (up to 97%)
High-Side Current Sense
Hysteretic Control: No Compensation
Adjustable Constant LED Current
Typical application:
Low voltage replacement LEDs
Automotive lighting
Low voltage industrial lighting
LED back-up lighting
Illuminated signs
SELV lighting
LCD TV backlighting
By modifying the RCS potentiometer, the maximum output current can be adjusted to 1.2A (pay attention to enhance heat dissipation)
Color: White
Material: PCB
Specification: 5 pieces
Package Contents:
5*LED Driver Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
