<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Item Type: Single Phase Meter

Product Material: Pure copper + plastic

Voltage: 230V AC

Current: 5 (80) A

Power: 800imp/kwh 50Hz

Insulation Performance: AC voltage 4kv for 1 minute, 1.2 / 50us waveform pulse voltage 6kv

:

DDS1891 single-phase electronic DIN track active energy meter is a new type of single-phase two-wire active energy meter, which uses microelectronics technology, and introduces large-scale integrated circuits, and uses advanced digital technology and SMT technology. Its completely independent intellectual property rights and minimum size.

The meter fully complies with the relevant technical requirements of the class 1 single-phase active meter specified by the international standard IEC62053-21. It can accurately and directly measure 50Hz or 60Hz active power consumption from a single-phase AC grid, and can display the total power consumption through the stepper motor type pulse register.

It has the characteristics of good reliability, small size, light weight, beautiful appearance and convenient installation.

Functions And Features:

1.35mm standard DIN rail installation, in line with standard DIN EN50022.

2. Unipolar width (modulus 18mm), in line with standard DIN43880.

3. Display the standard configuration 5 + 1 number (99999.1kWh) through the stepper motor type pulse register.

4. Standard configuration of passive pulse output (polarity), long-distance pulse output passive (polarity) can be selected. And easily contact with various AMR systems, in line with standards IEC 62053-31 and DIN 43864.

5. When the meter starts measuring, the pulse indicator flashes.

6. One-way measurement of single-phase two-wire active power, independent of the direction of the load current trend. Comply with standard IEC 62053-21.

7. Standard configuration S type connection, U type connection can be selected.

8. Extend the terminal cover to protect the safety of use. State (green) and energy pulse signal (red).

9. Directional measurement of AC active power consumption. The direction in which the load current flows does not matter. Comply with standard IEC 62053-21.

10. Direct connection operation, two types of wiring can be selected. The standard configuration is S-type wiring, but U-type wiring is possible.

11. Extend the terminal cover to protect the safety of use



Size: Approx. 88mm / 3.5in

63mm / 2.5in

75mm / 3in



44mm / 1.7in

45mm / 1.8in

68mm / 2.7in



35.5mm / 1.4in

5mm / 0.2in</li></ul>

Condición

Peso del Producto Ensamblado

Dimensiones del producto ensamblado

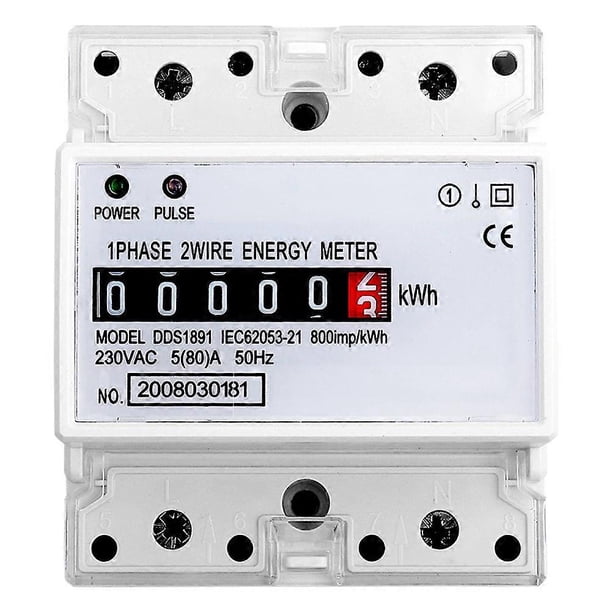

Single Phase Meter DDS1891 High Accuracy 4P LCD Electricity Rail Energy Meters 50Hz 230V

Item Type: Single Phase Meter

Product Material: Pure copper + plastic

Voltage: 230V AC

Current: 5 (80) A

Power: 800imp/kwh 50Hz

Insulation Performance: AC voltage 4kv for 1 minute, 1.2 / 50us waveform pulse voltage 6kv

:

DDS1891 single-phase electronic DIN track active energy meter is a new type of single-phase two-wire active energy meter, which uses microelectronics technology, and introduces large-scale integrated circuits, and uses advanced digital technology and SMT technology. Its completely independent intellectual property rights and minimum size.

The meter fully complies with the relevant technical requirements of the class 1 single-phase active meter specified by the international standard IEC62053-21. It can accurately and directly measure 50Hz or 60Hz active power consumption from a single-phase AC grid, and can display the total power consumption through the stepper motor type pulse register.

It has the characteristics of good reliability, small size, light weight, beautiful appearance and convenient installation.

Functions And Features:

1.35mm standard DIN rail installation, in line with standard DIN EN50022.

2. Unipolar width (modulus 18mm), in line with standard DIN43880.

3. Display the standard configuration 5 + 1 number (99999.1kWh) through the stepper motor type pulse register.

4. Standard configuration of passive pulse output (polarity), long-distance pulse output passive (polarity) can be selected. And easily contact with various AMR systems, in line with standards IEC 62053-31 and DIN 43864.

5. When the meter starts measuring, the pulse indicator flashes.

6. One-way measurement of single-phase two-wire active power, independent of the direction of the load current trend. Comply with standard IEC 62053-21.

7. Standard configuration S type connection, U type connection can be selected.

8. Extend the terminal cover to protect the safety of use. State (green) and energy pulse signal (red).

9. Directional measurement of AC active power consumption. The direction in which the load current flows does not matter. Comply with standard IEC 62053-21.

10. Direct connection operation, two types of wiring can be selected. The standard configuration is S-type wiring, but U-type wiring is possible.

11. Extend the terminal cover to protect the safety of use



Size: Approx. 88mm / 3.5in

63mm / 2.5in

75mm / 3in



44mm / 1.7in

45mm / 1.8in

68mm / 2.7in



35.5mm / 1.4in

5mm / 0.2in
