<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

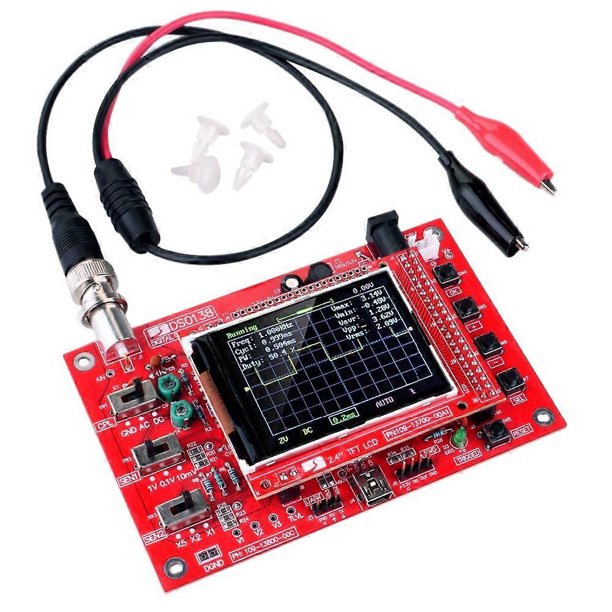

<ul><li>This kit uses ARM -M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.
Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter,
With automatic, regular and one-shot modes, easy to capture the moment waveform.
Comes 1Hz /3.3V square wave source.
With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./-
Maximum real-time sampling rate: 1Msps
Accuracy: 12Bit
Sample buffer depth: 1024 bytes
Analog Bandwidth: 0 - 200KHz
Vertical Sensitivity: 10mV/ - 5V/ (in 1-2-5 increments)
Adjustable vertical displacement with indication
Input impedance: 1MΩ
Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling methods include DC/AC/GND
Horizontal time base range: 10μs/ - 50s/ (in 1-2-5 increments)
With automatic, conventional and single trigger modes, it is convenient to capture instantaneous waveforms
Trigger with rising or falling edge
Adjustable trigger level position with indication
Waveform before trigger can be observed (negative delay)
Waveform display can be freeze at any time (HOLD function)
Comes with 1KHz /3.3V square wave source
Digital display with waveform parameters, the parameters that can be displayed are: frequency, period, pulse width, duty cycle, maximum value, minimum value, average value, -to- value, RMS
Save/recall the waveform, the waveform does not disappear when power off
Colour:Red
Material:ABS
Size:18 x 12.5 x 3cm
Package Contents:
1 * DIY Digital Oscilloscope Kit
1 * Probe
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error i</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

Oscilloscope Digital Assembled TFT with Probe Alligator Test Clip for ARM Detection Development Boa

This kit uses ARM -M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.
Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter,
With automatic, regular and one-shot modes, easy to capture the moment waveform.
Comes 1Hz /3.3V square wave source.
With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./-
Maximum real-time sampling rate: 1Msps
Accuracy: 12Bit
Sample buffer depth: 1024 bytes
Analog Bandwidth: 0 - 200KHz
Vertical Sensitivity: 10mV/ - 5V/ (in 1-2-5 increments)
Adjustable vertical displacement with indication
Input impedance: 1MΩ
Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling methods include DC/AC/GND
Horizontal time base range: 10μs/ - 50s/ (in 1-2-5 increments)
With automatic, conventional and single trigger modes, it is convenient to capture instantaneous waveforms
Trigger with rising or falling edge
Adjustable trigger level position with indication
Waveform before trigger can be observed (negative delay)
Waveform display can be freeze at any time (HOLD function)
Comes with 1KHz /3.3V square wave source
Digital display with waveform parameters, the parameters that can be displayed are: frequency, period, pulse width, duty cycle, maximum value, minimum value, average value, -to- value, RMS
Save/recall the waveform, the waveform does not disappear when power off
Colour:Red
Material:ABS
Size:18 x 12.5 x 3cm
Package Contents:
1 * DIY Digital Oscilloscope Kit
1 * Probe
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error i
