<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Feature:
1. USB POWERED: This IR thermal imaging camera module can be directly powered by USB 5V to generate infrared images, easy to operate.
2. EXCELLENT CHIP: Using AMG8833 infrared thermal sensor, the resolution is 8x8, and the maximum human body sensing distance is 7 meters.
3. GOOD PERFORMANCE: The thermal imager has high performance and high output resolution, sensitive and reliable, with strong practicability.
4. COMPACT SIZE: The infrared temperature sensor is equipped with shells, with small and compact structure, which is easy to install and use.
5. FOR ELECTRONICS: Infrared thermal imager has a measurement temperature of 0‑80°C and is widely used in testing electronic products.
Specification:
Item Type: Infrared Thermal Imager
Material: PCB
Temperature Accuracy:
High Performance Type High Gain: Typical ±2.5℃ ±4.5℉
High Performance Type Low Gain: Typical ±3.0℃ ±5.4℉
Human Detection Distance: Approx. 7 meter / 23ft or less (reference value)
Measuring Temperature: 0-80℃
Viewing Angle: Typical 60°
Optical Axes Gap: Within typical ±5.6°
Current Consumption:
Typical 4.5mA (normal mode)
Typical 0.2mA (sleep mode)
Typical 0.8mA (stand by mode)
Setup Time:
Typical 50ms (time to enable communication after setup)
Typical 15s (time to stabilize output after setup)
Number of Pixel: 64 (vertical 8 x horizontal 8)
External Interface: 1⊃2;C (fast mode)
Frame Rate: Typical 10 frames/sec or 1 frame/sec
Operating Modes: Normal, Sleep, Standby (10s or 60s flash)
Output Mode: Temperature Output
Calculation Method: No moving average or twice moving average
Temperature Output Resolution: 0.25℃/32.45℉
Number of Sensor Addresses: 2 (1 address c slave address)
Size: Approx. 38 x 36 x 17mm / 1.5 x 1.4 x 0.7in
Weight: Approx. 19g / 0.7oz.
Package List:
1 x Infrared Thermal Imager with Shell
Note:
Powered directly by USB 5V, it can be used when plugged in.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

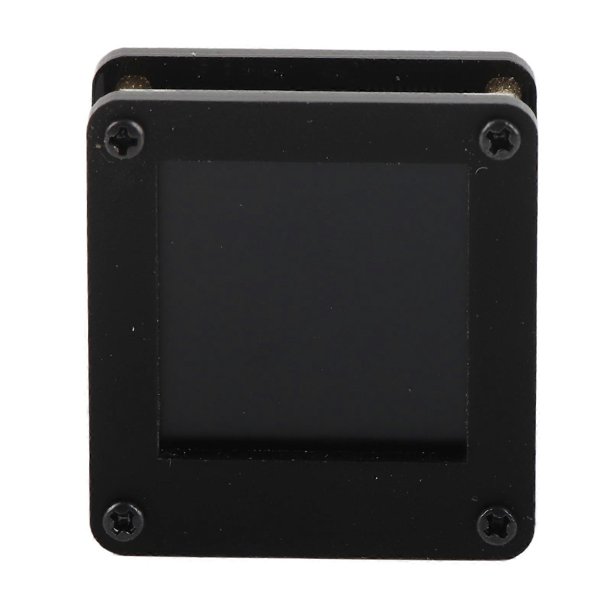

Handheld Temperature Measurement Sensor for AMG8833 Infrared Thermal Imager

Feature:
1. USB POWERED: This IR thermal imaging camera module can be directly powered by USB 5V to generate infrared images, easy to operate.
2. EXCELLENT CHIP: Using AMG8833 infrared thermal sensor, the resolution is 8x8, and the maximum human body sensing distance is 7 meters.
3. GOOD PERFORMANCE: The thermal imager has high performance and high output resolution, sensitive and reliable, with strong practicability.
4. COMPACT SIZE: The infrared temperature sensor is equipped with shells, with small and compact structure, which is easy to install and use.
5. FOR ELECTRONICS: Infrared thermal imager has a measurement temperature of 0‑80°C and is widely used in testing electronic products.
Specification:
Item Type: Infrared Thermal Imager
Material: PCB
Temperature Accuracy:
High Performance Type High Gain: Typical ±2.5℃ ±4.5℉
High Performance Type Low Gain: Typical ±3.0℃ ±5.4℉
Human Detection Distance: Approx. 7 meter / 23ft or less (reference value)
Measuring Temperature: 0-80℃
Viewing Angle: Typical 60°
Optical Axes Gap: Within typical ±5.6°
Current Consumption:
Typical 4.5mA (normal mode)
Typical 0.2mA (sleep mode)
Typical 0.8mA (stand by mode)
Setup Time:
Typical 50ms (time to enable communication after setup)
Typical 15s (time to stabilize output after setup)
Number of Pixel: 64 (vertical 8 x horizontal 8)
External Interface: 1⊃2;C (fast mode)
Frame Rate: Typical 10 frames/sec or 1 frame/sec
Operating Modes: Normal, Sleep, Standby (10s or 60s flash)
Output Mode: Temperature Output
Calculation Method: No moving average or twice moving average
Temperature Output Resolution: 0.25℃/32.45℉
Number of Sensor Addresses: 2 (1 address c slave address)
Size: Approx. 38 x 36 x 17mm / 1.5 x 1.4 x 0.7in
Weight: Approx. 19g / 0.7oz.
Package List:
1 x Infrared Thermal Imager with Shell
Note:
Powered directly by USB 5V, it can be used when plugged in.
