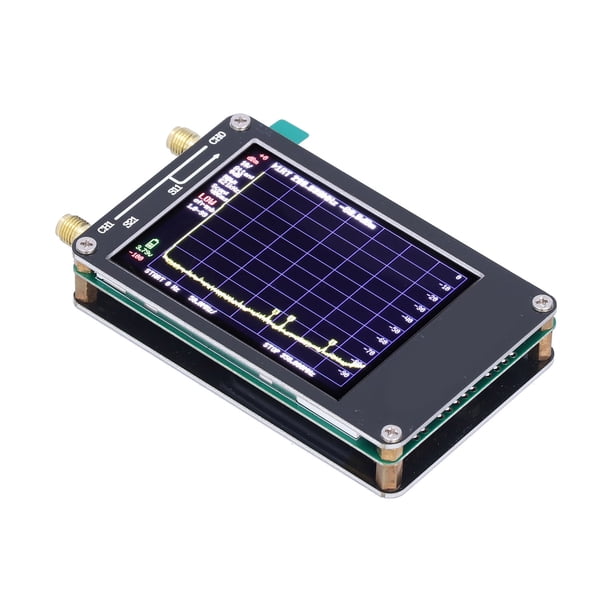

Name: Analizador de Espectro Portátil ANGGREK Otros
Brand: Anggrek
SKU: 00654503165218
Availability: OutOfStock

Walmart US Ecommerce Website

GENERAL MERCHANDISE

PHARMACY

GROCERIES

VUDU

SPARK


ADVERTISING

SAVINGS CATCHER

GIFTCARDS

INHOME

AFFILIATE

ONEAPP

LOTUS

HELP

SMART_REORDER

GROCERY

CONV_COMMERCE

GlobalAlertBar baja la app - 080726

title_shipToHome_date_delivery

Gato Hidraulico de Patin HANTEC Doble Piston Perfil bajo 3 Toneladas Hantec Herramienta Automotriz

title_shipToHome_not_available

Báscula Comercial Digital Lcd 40 Kg Recargable Tecla Tara

Wafflera Belga Hamilton Beach Negra

Batidora Classic KitchenAid K45SSWH Clásica 4.2 L Blanca

Procesador de Alimentos T-Fal 10 Piezas Negro

Gato Hidráulico de Patín Hantec 3 Toneladas Automotriz

Báscula Electronica Gutstark 40 kilos Comercial Digital

Sandwichera Hamilton Beach Panini Gourmet Negra

Cortadora y Detallador de Cabello Remington con 23 Pzas Rojo

Báscula Electrónica Multifunciones Rhino Barcom-40

Batidora de Mano Oster 5 Velocidades más 1 Turbo

Procesador de Alimentos Koblenz de Pulso con Capacidad de  900ml Negro

Kit Con Escoba Trapeador Colgador Recogedor Cubeta y Plumero Reynera

Diablito plegable Pretul DIA-60P de Acero

Sandwichera Hamilton Beach Antiadherente de 2 Rebanadas Negra

RASURADORA BARBA/NARIZ/OIDO PHILIPS RECARGABLE

Báscula Comercial Digital STAY ELIT DGIT-01

Carrito Plegable Multifuncional Hikeo con Ruedas y Toldo

Batidora De Pedestal Y Mano 2 En 1 Mezclador 7 Velocidades Tazón 2.5 Lt. Acero inoxidable Incluye 2 Batidores 2 Ganchos

Kit Mop Escoba Cubeta Y Accesorios Limpieza De Casa Reynera 6-0-5000 Reynera 6-0-5000

Diablo Pegable Pretul de Aluminio

Gato Hidráulico de Patín Mikels  OEM 2 Toneladas Base Circular con Estuche de Transporte GNM-2P

Bascula Digital Gramera De Cocina Pesa De 1 Gramo A 5 Kg RCA RCB1

Sandwichera Corte Rectangular 750W Panini Electrica con Recubrimiento Antiadherente Luz Indicadora

Complementos para tu compra

A Customer Also Viewed- P13n July 21, 2023

MTZ Team | Brand Box - Item Page

MTZ Team | Marquee 1  Item Page

MTZ Team | Marquee 2  Item Page

MTZ Team | Skyline Item Page

Productos Recomendados

MTZ Team | Sponsored Carousels - Product Page

New Item Page - Reviews Placeholder Module, Wednesday, August 23, 2023, 12:41:20:28 pm

Product Description Placeholder Module, Monday, February 13, 2023, 11:53:20:01 am

Product Specifications Placeholder Module, Monday, February 13, 2023, 11:55:48:74 am

Product Warranty Placeholder Module, Monday, February 13, 2023, 11:57:01:93 am

Refurbished Info Placeholder Module, Monday, February 13, 2023, 11:56:19:46 am

SellersSecondaryBuyBox Module, Monday, February 13, 2023, 11:52:40:61 am

<div>Producto de importación$$Specification:Item Type: Spectrum Analyzer$$ABS Shell: Approx. 58.7mm x 91.3mm x 17.1mm / 2.3 x 4 x 1in Excluding Protrusions$$Frequency Accuracy: &lt;2ppm$$Frequency Stability: &lt;1ppm$$Display: 2.8in TFT 320 x 240 Resistive Touch Screen$$USB Interface: USB Type C Communication Mode: CDC Serial$$Power Supply: USB 5V 150mA, Built in 650mAh Battery, Maximum Charging Current 300mA, Use Time 2 Hours Built in Battery Shipped$$How to Use:$$Low Input Mode Specifications: $$Input Frequency Range: 100kHz-350MHz$$Pre attenuator: 0dB-31dB, step 1dB manual and automatic input attenuation$$Absolute Maximum Input : +10dBm without attenuation$$Damage : +20dBm$$Third order Modulation IIP3 Input Intercept Point: +15dBm at 0dB attenuation$$1dB Compression Point: +2dBm at 0dB attenuation$$Power Detector Resolution: 0.5dB+/-1dB.$$The Lowest Recognizable Signal: -102dBm at 30kHz RBW.$$The phase noise at 100kHz offset is -90dB/Hz, and the phase noise at 1MHz offset is -115dB/Hz.$$When using a 30kHz resolution bandwidth of 70dB, there is no spur dynamic range.$$The resolution filters of 3, 10, 30, 100, 300, 600kHz can be manually selected. One of 57 resolution filters is automatically selected.$$The resolution on the screen is 51, 101, 145 or 290 measurement points.$$Using the maximum resolution filter, the scanning speed exceeds 1000 points  sec.$$Automatically optimize the actual scan points to ensure that the entire scan range is covered, no matter what resolution bandwidth is selected.$$Spur line suppression option is used to evaluate whether certain signals are generated internally or actually exist in the input signal.$$High Input Mode Specifications: High input mode is a low IF reception realized by the second receiver, without pre image and spurious filters$$Input Frequency Range: 240MHz to 960MHz$$The input impedance is related to the frequency and deviates from 50 ohms.$$Since there is no input band filter, strong input signals outside the range of 240MHz to 960MHz will cause in band signal distortion.$$Absolute maximum input  without attenuation +10dBm.$$The third order modulation product IIP3 with an input intercept point of -5dBm.$$The 1dB compression point is at -6dBm with no attenuation.$$The resolution of the power detector is 0.5dB, and the frequency linearity is +/-1dB.$$The absolute power  accuracy after power  calibration is +/- 1dB.$$Use the lowest discernible signal with a resolution bandwidth of -115dBm of 30kHz.$$Frequency accuracy is equal to the selected resolution bandwidth$$When using a 30kHz resolution bandwidth of 50dB, there is no spur dynamic range.$$The resolution filters of 3, 10, 30, 100, 300, 600kHz can be manually selected. One of 57 resolution filters is automatically selected.$$Optional 25dB to 40dB frequency dependent input attenuator. After activating the attenuator, the power  error increases to +/-10dB.$$The screen resolution is 51, 101, 145 or 290 measurement points.$$Using the maximum resolution filter, the scanning speed exceeds 1000 points sec.$$Automatically optimize the actual scan points to ensure that the entire scan range is covered, no matter what resolution bandwidth is selected.$$Low Output Mode Specifications: $$Sine  output, harmonics are lower than -40dB of the fundamental .$$The output frequency range<br>Producto de importación No hay factura disponible;</div>

<ul><li><ul><li>El analizador de espectro tiene dos entradas, entrada MF HF VHF 0,1 MHz-350 MHz, entrada UHF 240 MHz-960 MHz</li><li>El generador de señal de calibración integrado se utiliza para autoverificación automática y calibración de entrada baja. Cuando no se utiliza como analizador de espectro, se puede utilizar como generador de señal. La salida sinusal MF HF VHF es de 0,1 MHz a 350 MHz, la salida cuadrada de UHF está entre 240 MHz y 960 MHz</li></ul></li></ul>

Modelo / Estilo / Tipo

Cantidad de Piezas

País de Origen

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Tipo de Analizador de Espectro

Características Adicionales

Número de Piezas

Material

Ancho del Producto Ensamblado

Gama Color

Color

Altura del Producto Ensamblado

Marca

Analizador de Espectro Portátil ANGGREK Otros

<ul><li>El analizador de espectro tiene dos entradas, entrada MF HF VHF 0,1 MHz-350 MHz, entrada UHF 240 MHz-960 MHz</li><li>El generador de señal de calibración integrado se utiliza para autoverificación automática y calibración de entrada baja. Cuando no se utiliza como analizador de espectro, se puede utilizar como generador de señal. La salida sinusal MF HF VHF es de 0,1 MHz a 350 MHz, la salida cuadrada de UHF está entre 240 MHz y 960 MHz</li></ul>
