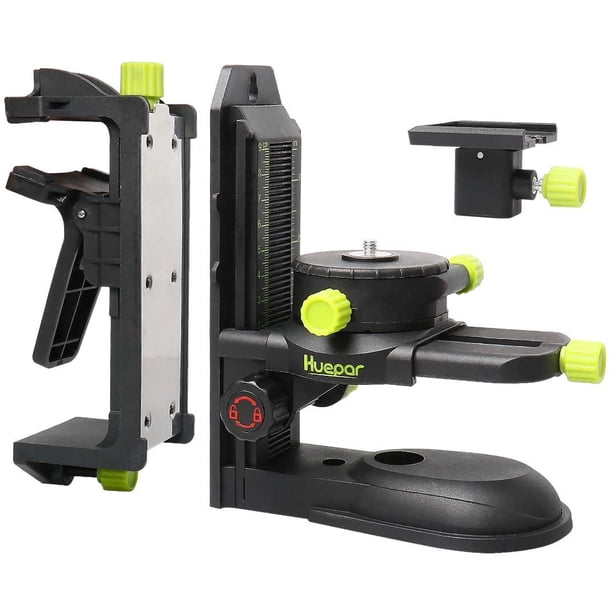

<div>Adaptador de nivel láser de soporte Huepar PV10+ con base magnética</div>

<ul><li>Laser Class: Class 2 (IEC/EN60825-1/2014), output power &lt;1mW

Specification of Huepar PV10+ Adjustable Base:

Magnetic Pivoting Bracket with Dedicated Window Adapter:
Heigth Adjustment Graduations: cm / inch
Main materials: PA6 plastic
Male Thread for Laser Level: 1/4"-20
Female Thread for Tripod: 1/4"-20 and 5/8"-11
The length of the male thread to the side of the bracket: 3-8.5cm
Load capacity: 3KG
Net Weight &amp; Size: 458g , 17.5 x 15.5 x 8.5 cm
Adjustment: 360-degree horizontal rotation, X-axis (adjust the horizontal position left and right), Y-axis (adjust the horizontal position front and back), Height adjustment.
The fine-tuning knob of the adapter helps adjusting pitch angle.
The adapter only compitable with: Huepar 901CG/R, 902CG/R, 903CG/R, GF360CG/R, AK360G/R, B02CG/R, B03CG/R, B21CG/R.

Multi-functional Auxiliary Back Clip:
The opening size of the clip: 1-5cm
The size of the steel sheet: 14 x 5.5cm
Net Weight &amp; Size: 242g , 18.5 x 8 x 5.5 cm
Adjustment: Opening size of clip, adjust the vertical angle of the bracket against the wall in to 90-degree

Package Included:
1 x Magnetic Pivoting Bracket
1 x Multi-functional Auxiliary Back Clip
1 x Huepar Dedicated Laser Window Adapter
1 x Operation Instruction
Laser Class: Class 2 (IEC/EN60825-1/2014), output power &lt;1mW

- 【Positioning Device for Line Lasers】: The bracket with 1/4"-20 male thread, the maximum depth from the 1/4''-20 thread to the back of the bracket is 8.5cm. It is compatible with most cross line laser levels with 1/4" female thread. Comes with an AD5/8 adapter for your laser level with 5/8" female thread.
- 【Multi-functional Auxiliary Back Clip】: A separate back clip included in the kit is compatible with most magnetic bases on the market, increasing the adsorption force of the magnets and stability. The Back Clip offers the ability to mount to any object up to 5cm thick. The vertical angle against the wall can be adjusted by the fine-tuning knobs as well as the opening size of the clip. A nail hole in the clip enables to be fixed firmly on the wall.
- 【Multi-directional Fine-tuning Bracket】: There are four fine adjustment knobs on the bracket, help to adjust the left and right position within 3cm, the front and back position within 5.5cm, the height within 9 cm, and the horizontal rotation 360°. An added locking knob enables to fix the working height and avoid sliding up and down. The graduations are marked in inches and centimeters for easy readouts.
- 【Multiple Installation Methods of the Bracket】: 1/4"-20 and 5/8"-11 female thread makes it possible to be attached to a tripod or laser pole. With the strong magnets, the bracket can be attached to the back clip at any height or other metal surfaces. Slots for screws, nails, raceways or optional straps are designed to make the installation much firmer. Huepar PV10+ Positioning Bracket is ideal for any job site.
- 【Huepar Dedicated Laser Window Adapter】: A dedicated adapter included helps to hang the laser tool, bringing the laser window closer to the wall. At this time, the bracket can be inverted or flipped sideways. The fine-tuning knob on the adapter is for adjusting pitch angle. Due to the special design of the groove, Huepar adapter is only suitable for certain models: Huepar B03CG, 901CG/R, 902CG/R, 903CG/R, GF360CG/R, AK360G/R, B02CG/R, B21CG/R, LS04CG, LS03CG, LS03DG.</li></ul>
