<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Item Type: Thread Inserts

Material: SUS304

Model: M2.5x0.45

Thread Specification: M2.5x0.45 (mm)

Outside Diameter Before Installation: Approx. 3.2 ~ 3.5mm / 0.1 ~ 0.1in

Diameter of Drilling Drill Bit for Installation: Approx. 2.6mm / 0.1in

1D/1.5D/2D/2.5D/3D:

Length After Installation: Approx. 2.5mm / 0.1in

3.8mm / 0.1in

5.0mm / 0.2in

6.3mm / 0.2in

7.5mm / 0.3in

Number of Turns Before Installation: 2.6/5.9/8.2/10.5/12.8

Thread Protective Sleeve Model Specification For Example: M3x0.5X1.5D, which means that after the screw set is completed, the female thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, that is, 1.5x3=4.5mm ), the length here refers to the length after installation.

How to Use:

1. Drilling

Use the drill bit of the size listed in the parameter table of the wire thread insert to drill the hole. Be careful not to drill the hole into a cone shape. The chips generated by the drill hole must be blown out with compressed air. After drilling, the counterbore should not exceed the depth of 0.4 pitch. Too large counterbore is not conducive to the screwing of the wire thread insert.

2. Tapping

Use special taps for wire thread inserts to tap. The depth of the tapping must exceed the installation length of the thread inserts. After tapping, use a compressed air spray gun to blow out the debris. When the thread accuracy is high, check the tapped bottom hole with a special bottom hole plug gauge for wire thread inserts.

3. Installation

Put the wire screw sleeve into the installation wrench (figure 5 on the right), insert the wire screw sleeve installation tail handle into the guide rod groove of the installation wrench, and turn the handle of the installation wrench to screw the wire screw sleeve into the screw hole. For installation of M14x2 or more phase thread thread inserts, you can use the "T" type slotting simple tool to install; Note: During the installation and screwing process of the thread inserts, there should be no pressing in the vertical direction to prevent jumping teeth. The correct method is slowly screw in the direction of thread rotation.

4. Remove the handle (break off the mounting handle)

Use a breaker to break the mounting handle. Use about 200g of coconut to hit the breaker instantly, and the handle can be removed. Do not use the mounting wrench to rotate in the opposite direction. Do not break the mounting handle. This situation is very easy. As a result, the tail shank was broken and the wire was pulled out.

5. Unscrew

When installation problems occur during the installation of the wire thread insert (such as jumping teeth), the thread insert needs to be removed, and a special sleeve remover should be used to remove the wire thread insert.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

brand

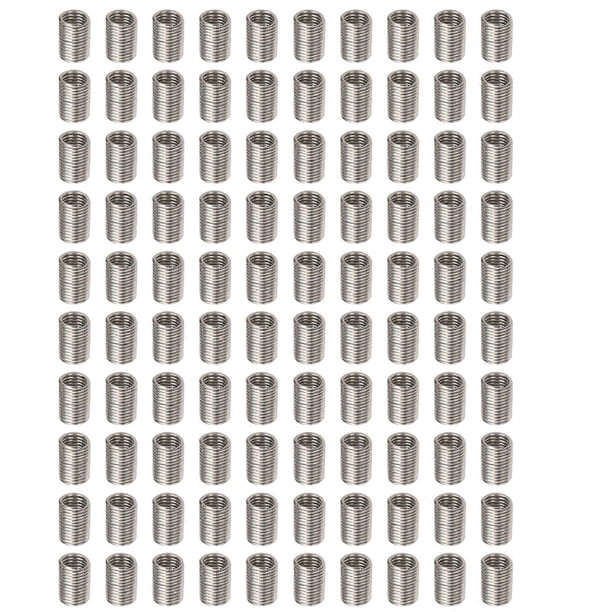

100Pcs Thread Inserts Male Female Reducing Nut Repair Tool Stainless Steel Fastener M2.5x0.453D

Item Type: Thread Inserts

Material: SUS304

Model: M2.5x0.45

Thread Specification: M2.5x0.45 (mm)

Outside Diameter Before Installation: Approx. 3.2 ~ 3.5mm / 0.1 ~ 0.1in

Diameter of Drilling Drill Bit for Installation: Approx. 2.6mm / 0.1in

1D/1.5D/2D/2.5D/3D:

Length After Installation: Approx. 2.5mm / 0.1in

3.8mm / 0.1in

5.0mm / 0.2in

6.3mm / 0.2in

7.5mm / 0.3in

Number of Turns Before Installation: 2.6/5.9/8.2/10.5/12.8

Thread Protective Sleeve Model Specification For Example: M3x0.5X1.5D, which means that after the screw set is completed, the female thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, that is, 1.5x3=4.5mm ), the length here refers to the length after installation.

How to Use:

1. Drilling

Use the drill bit of the size listed in the parameter table of the wire thread insert to drill the hole. Be careful not to drill the hole into a cone shape. The chips generated by the drill hole must be blown out with compressed air. After drilling, the counterbore should not exceed the depth of 0.4 pitch. Too large counterbore is not conducive to the screwing of the wire thread insert.

2. Tapping

Use special taps for wire thread inserts to tap. The depth of the tapping must exceed the installation length of the thread inserts. After tapping, use a compressed air spray gun to blow out the debris. When the thread accuracy is high, check the tapped bottom hole with a special bottom hole plug gauge for wire thread inserts.

3. Installation

Put the wire screw sleeve into the installation wrench (figure 5 on the right), insert the wire screw sleeve installation tail handle into the guide rod groove of the installation wrench, and turn the handle of the installation wrench to screw the wire screw sleeve into the screw hole. For installation of M14x2 or more phase thread thread inserts, you can use the "T" type slotting simple tool to install; Note: During the installation and screwing process of the thread inserts, there should be no pressing in the vertical direction to prevent jumping teeth. The correct method is slowly screw in the direction of thread rotation.

4. Remove the handle (break off the mounting handle)

Use a breaker to break the mounting handle. Use about 200g of coconut to hit the breaker instantly, and the handle can be removed. Do not use the mounting wrench to rotate in the opposite direction. Do not break the mounting handle. This situation is very easy. As a result, the tail shank was broken and the wire was pulled out.

5. Unscrew

When installation problems occur during the installation of the wire thread insert (such as jumping teeth), the thread insert needs to be removed, and a special sleeve remover should be used to remove the wire thread insert.
