<div>Producto de importación No hay factura disponible</div>

<ul><li>1、16 channels of analog voltage output, can cooperate with the host to collect the digital value after voltage signal conversion 2、The analog output initial voltage is 0V and the output range is 0~10V ±5%, durable and stable 3、The initial baud rate is 9600, the station number is 01, the baud rate and station number can be adjusted by instructions 4、Commonly used in industry, equipment monitoring, environmental monitoring and other occasion 5、High quality material can make sure the durability and stability of the product
Item Type: Voltage Acquisition Output Module Material: Engineering Plastic Power Supply Voltage (V): DC8-30 Maximum Working Current (mA): 120 Application Scenario: Cooperate with the host computer(PLC, HMI, PC are all available), collect the digital value after voltage signal conversion. Commonly used in industry. Equipment monitoring, environmental monitoring and other occasions Communication Description: Query the First-Way Voltage Output (DA1 Outputs 0.1V Voltage): Host Sending: 01/04/0000/0001/31CA/ Station number/function code/first address/quantity/check code/ Module Return: 01/04/02/00 64/B8 DB/ Station number/function code/bytes/voltage data/check code/ Query 1 to 8 Voltage Outputs (8 DA Outputs 0.1V Voltage): Host Send: 01/04/0000/0010/F1 C6/ Station number/function code/first address/quantity/check code/ Module Return: 01/04/10/0064006400640064006400640064006400640064 Station number/function code/byte number/voltage data 006400640064006400640064/BE29/ /Check code/ Set the First Voltage Output (DA1 Outputs 1V Voltage): Host Sending: 01/06/0000/03E8/89 74/ Station number/function code/address/voltage data/check code/ Module Return: 01/06/0000/03E8/8974/ Station number/function code/address/voltage data/check code/ Set 1 to 16 Voltage Outputs (16 DA Outputs 1V Voltage): Host Sends: 01/10/00 00/0010/20/03e8 03e8 03e8 03e8 03e8 03e8 03e8 Station number/function code/first address/quantity/byte Voltage data 03e803e8 03e8 03e8 03e8 03e8 03e8 03e8 03e8/B4 A9 /Check code/ Module Returns: 01/10/0000/0020/C1D1/ Station number/function code/first address/number of bytes/check code/&nbsp;
1 x&nbsp;Voltage Acquisition Output Module</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

brand

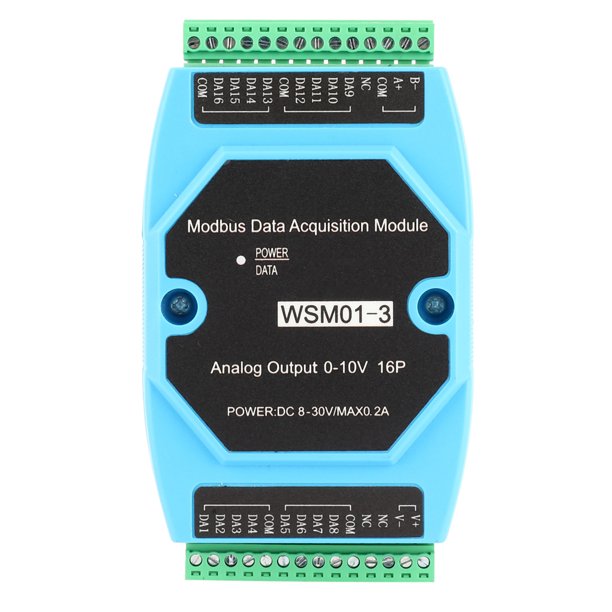

Voltage Acquisition Output Module for Equipment Monitoring 16DA 0-10V 1818200 WSM01-3

1、16 channels of analog voltage output, can cooperate with the host to collect the digital value after voltage signal conversion 2、The analog output initial voltage is 0V and the output range is 0~10V ±5%, durable and stable 3、The initial baud rate is 9600, the station number is 01, the baud rate and station number can be adjusted by instructions 4、Commonly used in industry, equipment monitoring, environmental monitoring and other occasion 5、High quality material can make sure the durability and stability of the product
Item Type: Voltage Acquisition Output Module Material: Engineering Plastic Power Supply Voltage (V): DC8-30 Maximum Working Current (mA): 120 Application Scenario: Cooperate with the host computer(PLC, HMI, PC are all available), collect the digital value after voltage signal conversion. Commonly used in industry. Equipment monitoring, environmental monitoring and other occasions Communication Description: Query the First-Way Voltage Output (DA1 Outputs 0.1V Voltage): Host Sending: 01/04/0000/0001/31CA/ Station number/function code/first address/quantity/check code/ Module Return: 01/04/02/00 64/B8 DB/ Station number/function code/bytes/voltage data/check code/ Query 1 to 8 Voltage Outputs (8 DA Outputs 0.1V Voltage): Host Send: 01/04/0000/0010/F1 C6/ Station number/function code/first address/quantity/check code/ Module Return: 01/04/10/0064006400640064006400640064006400640064 Station number/function code/byte number/voltage data 006400640064006400640064/BE29/ /Check code/ Set the First Voltage Output (DA1 Outputs 1V Voltage): Host Sending: 01/06/0000/03E8/89 74/ Station number/function code/address/voltage data/check code/ Module Return: 01/06/0000/03E8/8974/ Station number/function code/address/voltage data/check code/ Set 1 to 16 Voltage Outputs (16 DA Outputs 1V Voltage): Host Sends: 01/10/00 00/0010/20/03e8 03e8 03e8 03e8 03e8 03e8 03e8 Station number/function code/first address/quantity/byte Voltage data 03e803e8 03e8 03e8 03e8 03e8 03e8 03e8 03e8/B4 A9 /Check code/ Module Returns: 01/10/0000/0020/C1D1/ Station number/function code/first address/number of bytes/check code/&nbsp;
1 x&nbsp;Voltage Acquisition Output Module
