<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>The VL6180x three-in-one opto-electronic module integrates an IR VSEL (vertical-cavity surface-emitting laser) infrared vertical cavity surface-emitting source, proximity sensor, and ambient light sensor (ALS).
The VL6180X module implements a proximity sensor with the time-of-flight (ToF) measurement principle; The VL6180X includes a SPAD detector array that detects the time at which a single photon is ferred from the target to the target and back to the module, calculated in combination with the amplitude. The actual distance, regardless of the reflectivity of the object, this actual distance measurement capacity can also produce simple but reliable one-dimensional gesture control.
The ambient light sensor also has high sensitivity and precision under ultra-low light, wide sensing dynamic range, and ambient light (Lux) corrected output. All components used to support proximity sensors and ambient light sensors are integrated in a packaged optical module. The embedded design can be completed without the need for a mechanical spacer or an additional lens system.
Product Parameters:Infrared wavelength: 850 nm;Communication interface: IIC (400 kHz), address 0x29 (7-bit), two programmable GPIO;Optimal working temperature: -10 ~ 60 Celsius;Range range: 0 to 100mm Error 13mm Under certain external conditions, such as 100mm in dark environments;Temperature drift: 9 ~ 15mm Voltage drift: 3 ~ 5mm
Conversion time: 15 ms
Ambient light range: 1 ~ 100 kLux 16-bit output
Ambient light gain range: 1 to 40 (eight)
Ambient light sensitivity: 0.36 Lux / count (535 nm LED @ 1 kLux. Measured @ gain 20)
Angle response: 42 degrees
Linearity error: 5% (1-300 Lux), 10% (300 to 7500 Lux)
Gain error: 1% (gain 20), 7% (gain 1 to 10)
Instructions For Use
Vin: Power input pin. Voltage input range 3-5 V;
2v8: Output port, output2.8 V voltage, the 2.8 V output voltage generated by the on-board voltage regulator processing VIN</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

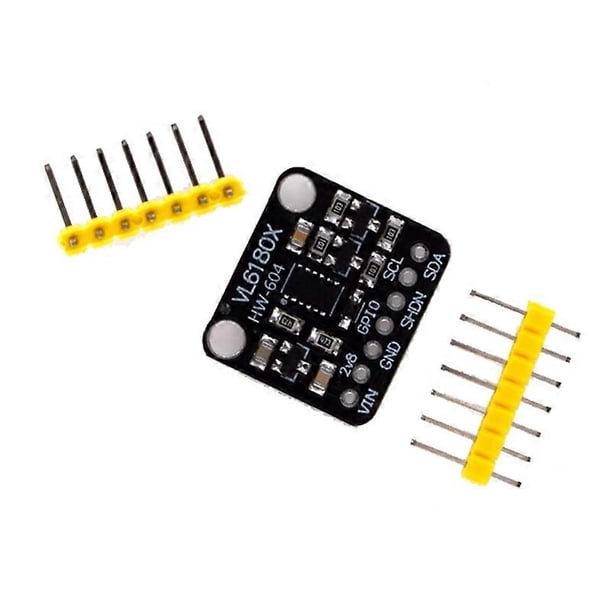

VL6180 VL6180X Range Finder Optical Ranging Sensor Module for Arduino I2C Interface 3.3V 5V IR Emitt

The VL6180x three-in-one opto-electronic module integrates an IR VSEL (vertical-cavity surface-emitting laser) infrared vertical cavity surface-emitting source, proximity sensor, and ambient light sensor (ALS).
The VL6180X module implements a proximity sensor with the time-of-flight (ToF) measurement principle; The VL6180X includes a SPAD detector array that detects the time at which a single photon is ferred from the target to the target and back to the module, calculated in combination with the amplitude. The actual distance, regardless of the reflectivity of the object, this actual distance measurement capacity can also produce simple but reliable one-dimensional gesture control.
The ambient light sensor also has high sensitivity and precision under ultra-low light, wide sensing dynamic range, and ambient light (Lux) corrected output. All components used to support proximity sensors and ambient light sensors are integrated in a packaged optical module. The embedded design can be completed without the need for a mechanical spacer or an additional lens system.
Product Parameters:Infrared wavelength: 850 nm;Communication interface: IIC (400 kHz), address 0x29 (7-bit), two programmable GPIO;Optimal working temperature: -10 ~ 60 Celsius;Range range: 0 to 100mm Error 13mm Under certain external conditions, such as 100mm in dark environments;Temperature drift: 9 ~ 15mm Voltage drift: 3 ~ 5mm
Conversion time: 15 ms
Ambient light range: 1 ~ 100 kLux 16-bit output
Ambient light gain range: 1 to 40 (eight)
Ambient light sensitivity: 0.36 Lux / count (535 nm LED @ 1 kLux. Measured @ gain 20)
Angle response: 42 degrees
Linearity error: 5% (1-300 Lux), 10% (300 to 7500 Lux)
Gain error: 1% (gain 20), 7% (gain 1 to 10)
Instructions For Use
Vin: Power input pin. Voltage input range 3-5 V;
2v8: Output port, output2.8 V voltage, the 2.8 V output voltage generated by the on-board voltage regulator processing VIN
