<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Feature:
1. This is an analog output of ultrasonic ranging module, output analog voltage and distance value is proportional.
2. Easy to connect with other systems, ensuring stable and reliable work.
3. Different range can be set according to different application scenarios.
4. This is a low cost but high quality distance sensor module with small power consumption.
5. Easy for installation, reliable quality ensuring stable and excellent performance.
Specification:
Condition: New
Item Type: Ultrasonic Module
Material: Semi-conductorElectric Specification

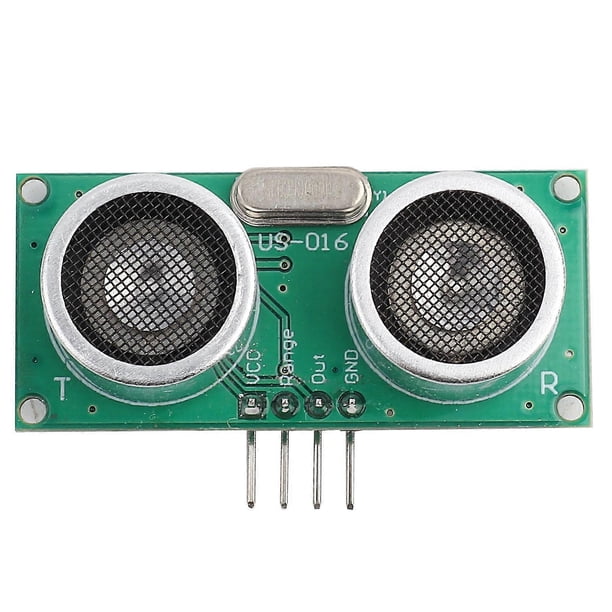

US-016 Ultrasonic Distance Measuring Module
Working Voltage
DC 5V
Working Current
3.8mA
Working Temperature
0~+70℃
Output Mode
Analog Voltage（0~Vcc）
Induction Angle
&lt;15°
Detecting Distance
2cm-300cm/0.8in-9.8ft
Detecting Accuracy
0.3cm+1%
Resolution
1mm
Pins:
VCC pin: connect to VCC power (dc 5V).
Range pin: set the range pin (range). When the module is powered on, the pin is high power, and the range is 3 meters/9.8ft. When the module is powered up, the pin is at a low power level, and the measuring range is 1m / 3.2ft. This pin has a pull resistance inside. When the range pin is suspended, the measuring range is 3 meters / 9.8ft.Out pin: analog voltage output pin (Out), analog voltage is directly proportional to the measured distance, and the output range is 0~Vcc.
GND pin: connect to external circuit ground.
v:* {behavior:url(#default#VML);}
o:* {behavior:url(#default#VML);}
x:* {behavior:url(#default#VML);}
.shape {behavior:url(#default#VML);}
Package List:
1 x Ultrasonic Module
Note:</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

US-016 Analog Voltage Output High Precision Ultrasonic Distance Measuring Module

Devolución hasta 30 días después de recibido.

Feature:
1. This is an analog output of ultrasonic ranging module, output analog voltage and distance value is proportional.
2. Easy to connect with other systems, ensuring stable and reliable work.
3. Different range can be set according to different application scenarios.
4. This is a low cost but high quality distance sensor module with small power consumption.
5. Easy for installation, reliable quality ensuring stable and excellent performance.
Specification:
Condition: New
Item Type: Ultrasonic Module
Material: Semi-conductorElectric Specification
US-016 Ultrasonic Distance Measuring Module
Working Voltage
DC 5V
Working Current
3.8mA
Working Temperature
0~+70℃
Output Mode
Analog Voltage（0~Vcc）
Induction Angle
&lt;15°
Detecting Distance
2cm-300cm/0.8in-9.8ft
Detecting Accuracy
0.3cm+1%
Resolution
1mm
Pins:
VCC pin: connect to VCC power (dc 5V).
Range pin: set the range pin (range). When the module is powered on, the pin is high power, and the range is 3 meters/9.8ft. When the module is powered up, the pin is at a low power level, and the measuring range is 1m / 3.2ft. This pin has a pull resistance inside. When the range pin is suspended, the measuring range is 3 meters / 9.8ft.Out pin: analog voltage output pin (Out), analog voltage is directly proportional to the measured distance, and the output range is 0~Vcc.
GND pin: connect to external circuit ground.
v:* {behavior:url(#default#VML);}
o:* {behavior:url(#default#VML);}
x:* {behavior:url(#default#VML);}
.shape {behavior:url(#default#VML);}
Package List:
1 x Ultrasonic Module
Note:
