<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>100% quality assurance tested, more responsive, less expensive, easier to install.The Power Gear 14-1130 and 140-1130 are relay boards that have high power relays that route the power to the electric motors for your Power Gear Slide Out System.The same fuse and breaker that is on the old board may be used on the new 140-1130. The 140-1130 controller will need the center wire on the wall switch to be a 12VDC (positive trigger) which on some models of controllers such as the 14-1098 are ground trigger.If the Relay board you took out has the part number 14-1130 or 140-1130 than this board will drop in. And you just need to move over your Thermal Circuit Breaker and Glass Fuse from your older board firstly then install them back.If you have the older Power Gear 14-1098 board on your RV this won' be a drop in replacement but it came be modified to work. It's slightly larger (so you'll need to have new holes to screw it down) and you'll also have to do some changes to your stock wiring. If you do the changes this will function for your system just fine.Application:Replace Number For RV: 14-1130, 140-1130,14-1098,14-1086.For Fleetwood 246063.NOTE: The Abbreviations on the Board might be Slightly Different as compare to pictures because different vendors use different abbreviations, but theOutput of this Board will be the Same.Replacement Instructions from 14-1098 (Old ) To 14-1130/140-1130 (New )1. Disconnect the slide out system from the power supply.2. Remove the 6-pin harness from the relay control by squeezing together the top of the plastic tabs on each side and pulling up from the control.3. Remove the circuit breaker and glass fuse from the relay control.4. Remove the mounting screws and the old control.5. Locate and move the center wire on the slide-out switch from groundto 12 VDC source through a 3AMP(preferred) fast acting standard automotive fuse.6. Remount the replacement control, reinstall the circuit breaker and glass fuse, reconnect the 6-pin connector to the control module. Colour:As shownMaterial:plasticPackage Contents:1 x Power Gear Slide Out Relay1set x AccessoriesOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

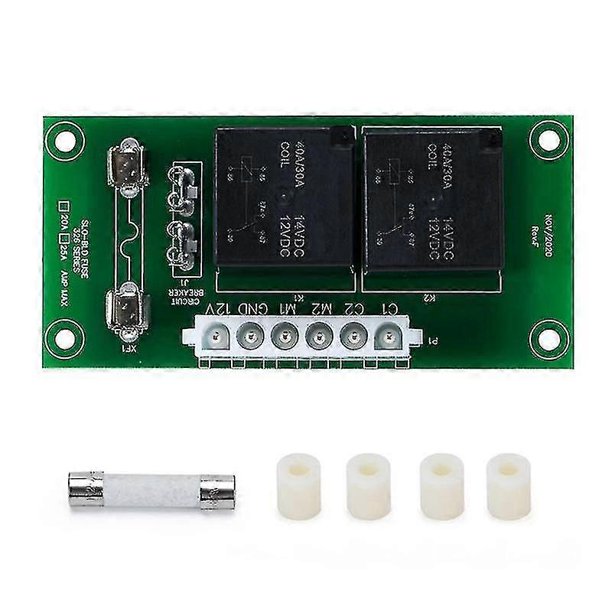

Rv Power Gear 14-1130 Or 140-1130 Slide Out Relay Control Board Fleetwood 246063

100% quality assurance tested, more responsive, less expensive, easier to install.The Power Gear 14-1130 and 140-1130 are relay boards that have high power relays that route the power to the electric motors for your Power Gear Slide Out System.The same fuse and breaker that is on the old board may be used on the new 140-1130. The 140-1130 controller will need the center wire on the wall switch to be a 12VDC (positive trigger) which on some models of controllers such as the 14-1098 are ground trigger.If the Relay board you took out has the part number 14-1130 or 140-1130 than this board will drop in. And you just need to move over your Thermal Circuit Breaker and Glass Fuse from your older board firstly then install them back.If you have the older Power Gear 14-1098 board on your RV this won' be a drop in replacement but it came be modified to work. It's slightly larger (so you'll need to have new holes to screw it down) and you'll also have to do some changes to your stock wiring. If you do the changes this will function for your system just fine.Application:Replace Number For RV: 14-1130, 140-1130,14-1098,14-1086.For Fleetwood 246063.NOTE: The Abbreviations on the Board might be Slightly Different as compare to pictures because different vendors use different abbreviations, but theOutput of this Board will be the Same.Replacement Instructions from 14-1098 (Old ) To 14-1130/140-1130 (New )1. Disconnect the slide out system from the power supply.2. Remove the 6-pin harness from the relay control by squeezing together the top of the plastic tabs on each side and pulling up from the control.3. Remove the circuit breaker and glass fuse from the relay control.4. Remove the mounting screws and the old control.5. Locate and move the center wire on the slide-out switch from groundto 12 VDC source through a 3AMP(preferred) fast acting standard automotive fuse.6. Remount the replacement control, reinstall the circuit breaker and glass fuse, reconnect the 6-pin connector to the control module. Colour:As shownMaterial:plasticPackage Contents:1 x Power Gear Slide Out Relay1set x AccessoriesOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
