<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>1. USB serial port control relay, serial port control, , overcurrent protection
2. USB serial port control relay, newly upgraded and advanced version, with new optocoupler protection circuit to prevent interference and high-speed transmission
3. The output terminal of the relay can be regarded as an electronic switch, controlling the on and off of the circuit. There is actually no voltage output at the load end of the module.
4. When there is no voltage in the relay coil, the relay does not pull in, and the common terminal (COM) is connected to the normally closed terminal (NC). When there is voltage, the relay pulls in, and the common terminal (COM) is connected to the normally open terminal (NO).
5. USB serial port control relay
Relay path: 5V
Power supply method: Type-c interface/pin header
Control interface: Type-c interface/pin header
Microcontroller chip: GD32F103C8T6
Baud rate: 115200bps
LED indicator light: power indicator light and relay status indicator light
Circuit design: With overcurrent protection and optocoupler protection functions
Output type: relay common terminal, normally open terminal, normally closed terminal
Load type: Load powered at 10A/30VDC, 10A/250VAC
Product size: About 58x32mm
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use
Colour:As Shown
Material:PCB
Type: DSTUR-T40 4 Channel
Package Contents:
1x Serial Port Control Relay (Type C)
1x Type-C Cable (50cm)
1x 10Pin 2.54mm Female To Female Cable (20cm)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

title_shipToHome_date_free_delivery

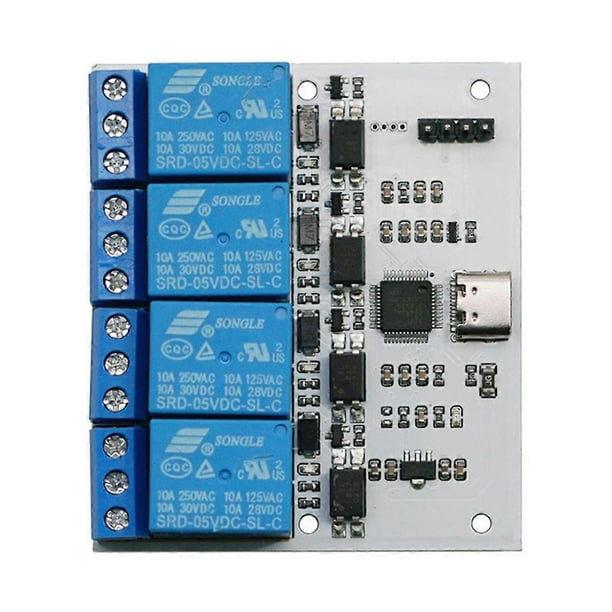

Relay Module 4 Channel USB to CH340 Serial Control Relay Module

Devolución hasta 30 días después de recibido.

1. USB serial port control relay, serial port control, , overcurrent protection
2. USB serial port control relay, newly upgraded and advanced version, with new optocoupler protection circuit to prevent interference and high-speed transmission
3. The output terminal of the relay can be regarded as an electronic switch, controlling the on and off of the circuit. There is actually no voltage output at the load end of the module.
4. When there is no voltage in the relay coil, the relay does not pull in, and the common terminal (COM) is connected to the normally closed terminal (NC). When there is voltage, the relay pulls in, and the common terminal (COM) is connected to the normally open terminal (NO).
5. USB serial port control relay
Relay path: 5V
Power supply method: Type-c interface/pin header
Control interface: Type-c interface/pin header
Microcontroller chip: GD32F103C8T6
Baud rate: 115200bps
LED indicator light: power indicator light and relay status indicator light
Circuit design: With overcurrent protection and optocoupler protection functions
Output type: relay common terminal, normally open terminal, normally closed terminal
Load type: Load powered at 10A/30VDC, 10A/250VAC
Product size: About 58x32mm
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use
Colour:As Shown
Material:PCB
Type: DSTUR-T40 4 Channel
Package Contents:
1x Serial Port Control Relay (Type C)
1x Type-C Cable (50cm)
1x 10Pin 2.54mm Female To Female Cable (20cm)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
