<div>¡El producto es muy bueno, ¡ creo que te gustará!</div>

<ul><li>1、Made of aluminum alloy material, lightweight, resistant to friction, scratch‑resistant, drop‑proof and corrosion‑resistant 2、Using PI control algorithm, low noise, low vibration and low heat with stable performance 3、Convenient to set current, 16 levels optional, the peak output current can be up to 2.2A 4、Can drive 4, 6, 8 wire 2‑phase stepping motors, with automatic parameter adjustment function for different motors 5、Adopt multi-layer board and surface mount seal, high reliability, enough margin for power devices
Item Type: Rail Slide Stage Material: Steel, electroless nickel plating Model: SPX615-L Moving Direction: X axis Table Size: Approx. 60 x 60mm / 2.4 x 2.4in Table Height: Approx. 20mm / 0.8in Moving Amount: Approx. 15mm / 0.6in Load (kg): 10 Maximum Speed (mm/s): 10 Parallelism (μm): 15 Straightness (μm): Within 3 Single-phase Positioning Accuracy (μm): 15 Repeat Positioning Accuracy (μm): ±1.5 Sensor: NPN open circuit output limit + origin 2-Phase Stepping Motor: 1.3A/phase Power Supply: Up to DC48V Input Pulse Frequency: Maximum 300KHz How to Use: 1. Install the sliding table 2. Connect the drive data cable&nbsp;
1 x Slide Table1 x Data Line1 x Drive4 x Bolt</li></ul>

Dimensiones del producto ensamblado

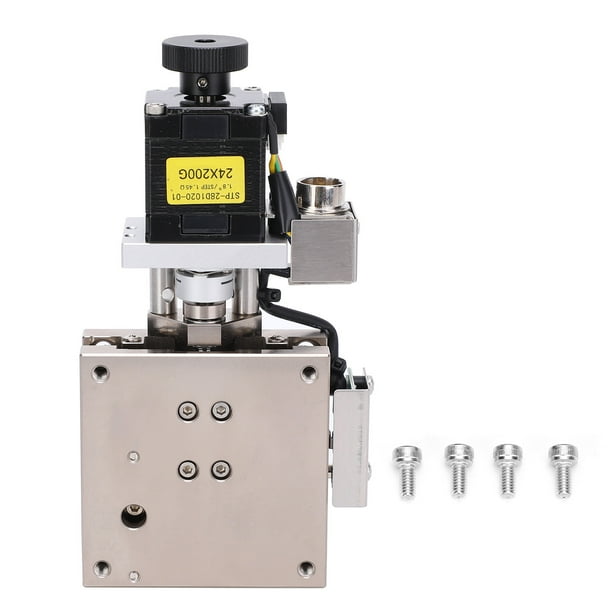

Rail Slide Stage Automatic Cross Roller X Sliding Platform with Drive Motor SPX615‑L

1、Made of aluminum alloy material, lightweight, resistant to friction, scratch‑resistant, drop‑proof and corrosion‑resistant 2、Using PI control algorithm, low noise, low vibration and low heat with stable performance 3、Convenient to set current, 16 levels optional, the peak output current can be up to 2.2A 4、Can drive 4, 6, 8 wire 2‑phase stepping motors, with automatic parameter adjustment function for different motors 5、Adopt multi-layer board and surface mount seal, high reliability, enough margin for power devices
Item Type: Rail Slide Stage Material: Steel, electroless nickel plating Model: SPX615-L Moving Direction: X axis Table Size: Approx. 60 x 60mm / 2.4 x 2.4in Table Height: Approx. 20mm / 0.8in Moving Amount: Approx. 15mm / 0.6in Load (kg): 10 Maximum Speed (mm/s): 10 Parallelism (μm): 15 Straightness (μm): Within 3 Single-phase Positioning Accuracy (μm): 15 Repeat Positioning Accuracy (μm): ±1.5 Sensor: NPN open circuit output limit + origin 2-Phase Stepping Motor: 1.3A/phase Power Supply: Up to DC48V Input Pulse Frequency: Maximum 300KHz How to Use: 1. Install the sliding table 2. Connect the drive data cable&nbsp;
1 x Slide Table1 x Data Line1 x Drive4 x Bolt
