<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>This is a breakout board for the PCA9306 dual bidirectional voltage-level translator. Because different parts sometimes use different voltage levels to communicate, voltage level translators can be the key to making different parts play nice.The PCA9306 is a dual bidirectional I2C-bus and SMBus voltage-level translator that's operational on the low side from 1.0 V to 3.6 V and on the high side from 1.8 V to 5.5 V. Simply apply your low- and high-side reference voltages to the VREF1 and VREF2 respectively, connect your I/O and drive the Enable pin high to open bidirectional voltage translation without the use of a direction pin!
Features:
2-bit bidirectional translator for SDA and SCL lines in mixed-mode I2C-bus applications
Standard-mode, Fast-mode, and Fast-mode Plus I2C-bus and SMBus compatible
Less than 1.5 ns maximum propagation delay to accommodate Standard-mode and Fast-mode I2C-bus devices and multiple masters
Allows voltage level translation between: 1.0 V Vref(1) and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias; 1.2 V Vref(1)and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias;1.8 V Vref(1)and 3.3 V or 5 V Vbias; 2.5 V Vref(1) and 5 V Vbias; 3.3 V Vref(1) and 5 V Vbias
Provides bidirectional voltage translation with no direction pin
Low 3.5 Ω ON-state connection between input and output port provides less signal distortion
Specification:
Model:PCA9306
Type:Level Translator Breakout
Color:red
Package list:
1 x PCA9306 breakout board</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

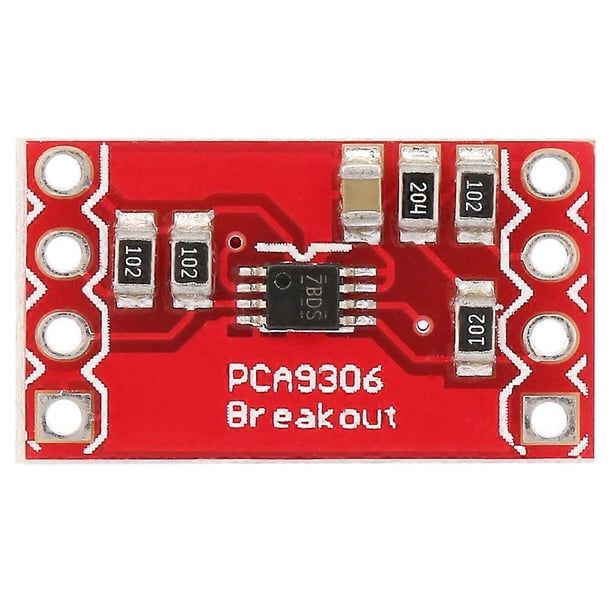

PCA9306 Dual Bidirectional VoltagE Level Translator Breakout Board Module

This is a breakout board for the PCA9306 dual bidirectional voltage-level translator. Because different parts sometimes use different voltage levels to communicate, voltage level translators can be the key to making different parts play nice.The PCA9306 is a dual bidirectional I2C-bus and SMBus voltage-level translator that's operational on the low side from 1.0 V to 3.6 V and on the high side from 1.8 V to 5.5 V. Simply apply your low- and high-side reference voltages to the VREF1 and VREF2 respectively, connect your I/O and drive the Enable pin high to open bidirectional voltage translation without the use of a direction pin!
Features:
2-bit bidirectional translator for SDA and SCL lines in mixed-mode I2C-bus applications
Standard-mode, Fast-mode, and Fast-mode Plus I2C-bus and SMBus compatible
Less than 1.5 ns maximum propagation delay to accommodate Standard-mode and Fast-mode I2C-bus devices and multiple masters
Allows voltage level translation between: 1.0 V Vref(1) and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias; 1.2 V Vref(1)and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias;1.8 V Vref(1)and 3.3 V or 5 V Vbias; 2.5 V Vref(1) and 5 V Vbias; 3.3 V Vref(1) and 5 V Vbias
Provides bidirectional voltage translation with no direction pin
Low 3.5 Ω ON-state connection between input and output port provides less signal distortion
Specification:
Model:PCA9306
Type:Level Translator Breakout
Color:red
Package list:
1 x PCA9306 breakout board
