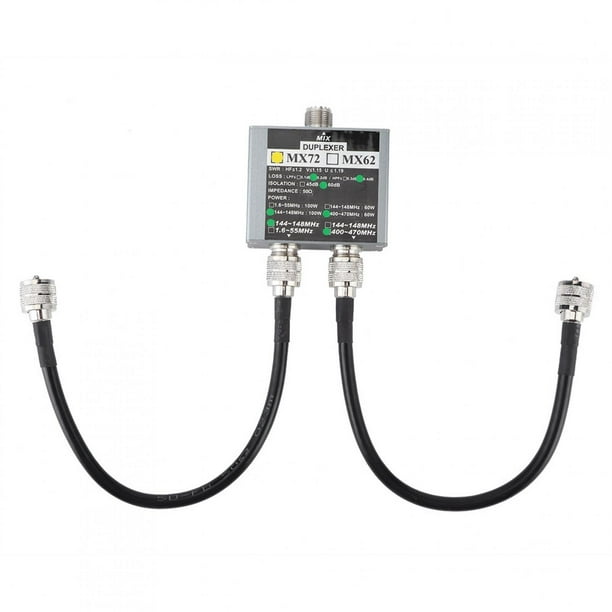

<div>MX72 VHfUHF Duplexer 144-148MHz  400-470MHz Different Frequency Indoor Antenna Combiner</div>

<ul><li>1、The MX72N duplexer is a series of inductance coils and capacitors that acts as a band-pass filter. 2、The MX72N duplexer can be used in two different ways. 3、Combines the output of the HF/VHF transceiver and the output of the UHF transceiver so that both transceivers can be connected to the same antenna. 4、Can also be used to separate UHF/VHF transmissions from UHF transmissions so that one transceiver can be connected to two antennas. 5、Used in different frequency, can not transmit at the same time.
<div><div>Condition: 100% Brand New<br>Item Type: UHF+VHF Duplexer<br>Material: Alloy<br>Color: As picture shown<br>Cable Length: Approx. 30cm/11.8in<br>Operating Frequency: 144 - 148MHz &amp; 400 - 470MHz<br>Endurance:<br>144 - 148MHz: 100W<br>400 - 470MHz: 60W<br>Isolation: 60dB<br>Insertion Loss:<br>144 - 148MHz: &lt; 0.2dB <br>400 - 470MHz: &lt; 0.4dB<br>Standing Wave Ratio:<br>VHF: &lt; 1.15, UHF: &lt; 1.19<br>Impedance: 50 ohms<br>Coaxial Feeder: 5D-FB (30cm)<br>Size(WxHxD): Approx. 74 x 33 x 63mm/2.9 x 1.3 x 2.5in<br>Interface: MJ-MP MP</div></div>
1 x MX72N UHF+VHF Duplexer</li></ul>

País de Origen

Contiene sustancias químicas

Contiene gas comprimido (aerosol)

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

¿Contiene componentes electrónicos?

Condición

Material

Ancho del Producto Ensamblado

Gama Color

Contiene pesticida

Altura del Producto Ensamblado

brand

MX72 VHfUHF Duplexer 144-148MHz 400-470MHz Different Frequency Indoor Antenna Combiner

1、The MX72N duplexer is a series of inductance coils and capacitors that acts as a band-pass filter. 2、The MX72N duplexer can be used in two different ways. 3、Combines the output of the HF/VHF transceiver and the output of the UHF transceiver so that both transceivers can be connected to the same antenna. 4、Can also be used to separate UHF/VHF transmissions from UHF transmissions so that one transceiver can be connected to two antennas. 5、Used in different frequency, can not transmit at the same time.
<div><div>Condition: 100% Brand New<br>Item Type: UHF+VHF Duplexer<br>Material: Alloy<br>Color: As picture shown<br>Cable Length: Approx. 30cm/11.8in<br>Operating Frequency: 144 - 148MHz &amp; 400 - 470MHz<br>Endurance:<br>144 - 148MHz: 100W<br>400 - 470MHz: 60W<br>Isolation: 60dB<br>Insertion Loss:<br>144 - 148MHz: &lt; 0.2dB <br>400 - 470MHz: &lt; 0.4dB<br>Standing Wave Ratio:<br>VHF: &lt; 1.15, UHF: &lt; 1.19<br>Impedance: 50 ohms<br>Coaxial Feeder: 5D-FB (30cm)<br>Size(WxHxD): Approx. 74 x 33 x 63mm/2.9 x 1.3 x 2.5in<br>Interface: MJ-MP MP</div></div>
1 x MX72N UHF+VHF Duplexer
