<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Feature:

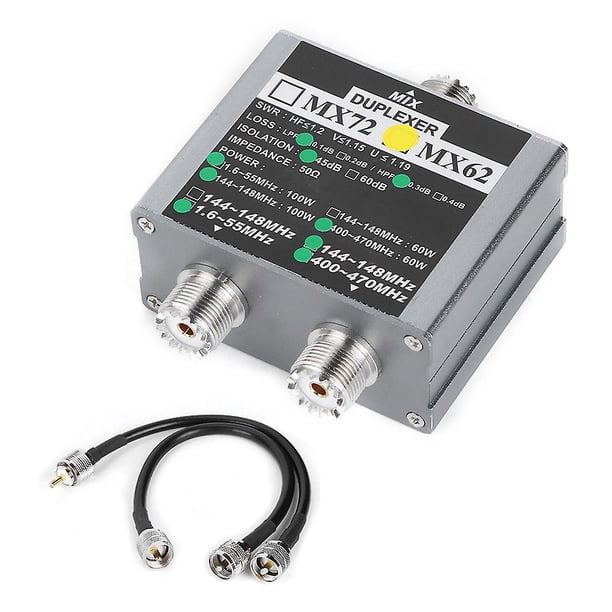

1. The MX62N duplexer is a series of inductance coils and capacitors that acts as a band‑pass filter.
2. Combines the output of the HF/VHF transceiver and the output of the UHF transceiver so that both transceivers can be connected to the same antenna.
3. Can also be used to separate UHF/VHF transmissions from UHF transmissions so that one transceiver can be connected to two antennas.
4. The MX62N duplexer can be used in two different ways, used in different frequency, can not transmit at the same time.
5. The MX62 VHF + UHF duplexer is designed for indoor use, usage frequency is 1.6‑55MHz / 144‑148MHz&amp;400‑470MHz.
Specification:
Condition: 100% New
Item Type: UHF+VHF Duplexer
Material: Alloy
Color: As Pictures ShownSize(W x H x D): Approx. 74 x 33 x 63mm/2.9 x 1.3 x 2.5in
Operating Frequency: 1.6 - 55MHz/144 - 148MHz &amp; 400 - 470MHz.Endurance:
1.6-55MHz &amp; 144-148MHz: 100W
400-470MHz: 60W
Isolation: 45 dB
Insertion Loss:
1.6-55MHz: 0.1dB or Less
144-148MHz &amp; 400-470MHz: 0.3dB or Less
SWR: HF: 1.2 or Less, VHF: 1.15 or Less, UHF: 1.19 or Less
Impedance: 50 Ohm
Coaxial Feeder: 5D-FB (Length: Approx. 30cm/11.8in)
Interface: MJ-MP MPNote: The MX62 VHF+UHF Duplexer is designed for indoor use.If you use the MX62 VHF+UHF Duplexer outdoors, it should only be used for short periods of time under good weather conditions. Do not use the MX62 VHF+UHF duplexer outdoors when there is any kind of precipitation.
Package List:
1 x Duplexer2 x Frequency Dividing Line
Note:
The MX62 VHF+UHF Duplexer is designed for indoor use.If you use the MX62 VHF+UHF Duplexer outdoors, it should only be used for short periods of time under good weather conditions. Do not use the MX62 VHF+UHF duplexer outdoors when there is any kind of precipitation.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

MX62 VHfUHF 144 148 MHz 400 470 MHz Duplexer Combiner for indoor antennas with different frequencies

Feature:
1. The MX62N duplexer is a series of inductance coils and capacitors that acts as a band‑pass filter.
2. Combines the output of the HF/VHF transceiver and the output of the UHF transceiver so that both transceivers can be connected to the same antenna.
3. Can also be used to separate UHF/VHF transmissions from UHF transmissions so that one transceiver can be connected to two antennas.
4. The MX62N duplexer can be used in two different ways, used in different frequency, can not transmit at the same time.
5. The MX62 VHF + UHF duplexer is designed for indoor use, usage frequency is 1.6‑55MHz / 144‑148MHz&amp;400‑470MHz.
Specification:
Condition: 100% New
Item Type: UHF+VHF Duplexer
Material: Alloy
Color: As Pictures ShownSize(W x H x D): Approx. 74 x 33 x 63mm/2.9 x 1.3 x 2.5in
Operating Frequency: 1.6 - 55MHz/144 - 148MHz &amp; 400 - 470MHz.Endurance:
1.6-55MHz &amp; 144-148MHz: 100W
400-470MHz: 60W
Isolation: 45 dB
Insertion Loss:
1.6-55MHz: 0.1dB or Less
144-148MHz &amp; 400-470MHz: 0.3dB or Less
SWR: HF: 1.2 or Less, VHF: 1.15 or Less, UHF: 1.19 or Less
Impedance: 50 Ohm
Coaxial Feeder: 5D-FB (Length: Approx. 30cm/11.8in)
Interface: MJ-MP MPNote: The MX62 VHF+UHF Duplexer is designed for indoor use.If you use the MX62 VHF+UHF Duplexer outdoors, it should only be used for short periods of time under good weather conditions. Do not use the MX62 VHF+UHF duplexer outdoors when there is any kind of precipitation.
Package List:
1 x Duplexer2 x Frequency Dividing Line
Note:
The MX62 VHF+UHF Duplexer is designed for indoor use.If you use the MX62 VHF+UHF Duplexer outdoors, it should only be used for short periods of time under good weather conditions. Do not use the MX62 VHF+UHF duplexer outdoors when there is any kind of precipitation.
