<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Feature:
1. This converter is used for connecting MDB coin receivers, bill receivers and card readers.
2. You can not only just use the RS232 port of the computer but you can also use for Android motherboard or any other motherboard with RS232 or USB port.
3. If you only have a USB port, you can use the additional USB to RS232 transfer case to create a virtual COM port on your PC or Android board.
4. Supports MDB, coin receiver, bill receiver, cash interface (10H and 60H) and USD interface (40H).
5. Allows the PC to control the coin acceptor, the change dispenser, the smart card reader, the magnetic card, the credit card reader, the bill acceptor and the bill verification.
6. Complies with all NAMA MDB specifications and is compatible with any vending equipment that complies with MDB. The hardware interface comes with cables, user guide and user agreement.
7. A single MDB to RS232 converter can connect up to eight (8) MDB compatible devices.
8. The interface adapter is designed to convert the MDB protocol of the vending machine to the RS‑232 serial protocol.
9. The adapter is used as a slave of the main control system. The main device can be any control system that supports RS‑232 serial communication, such as a PC.
10. This adapter is designed to convert MDB bill acceptor (BA) and MDB coin changer protocols to RS‑232 serial protocol. IU is used as a slave of the master control system.
Specification:
Conditon: 100% New
Item Type: MDB to RS232 Converter
Material: ABS Plastic
Color: As Pictures ShownStart Bit: 1
Data Bits: 8
Stop Bit: 1
Between Bytes: 1 Ms
Response (Maximum): 50 Ms
Master Polling Time: 150-300 Milliseconds
IU Waits for the Main Polling Time Before Rejecting BA and coin changer (Maximum): 3 Seconds
Minimum Voltage: 20V DC
Nominal Voltage: 24-34V DC (or 24-30V AC)
Maximum Voltage: 39V DC
Idle Current Consumption: &lt;0.05A
Cable: Standard Computer Serial Cable, Standard MDB Cable.
Package List:
1 x MDB to RS232 Converter1 x Manual</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

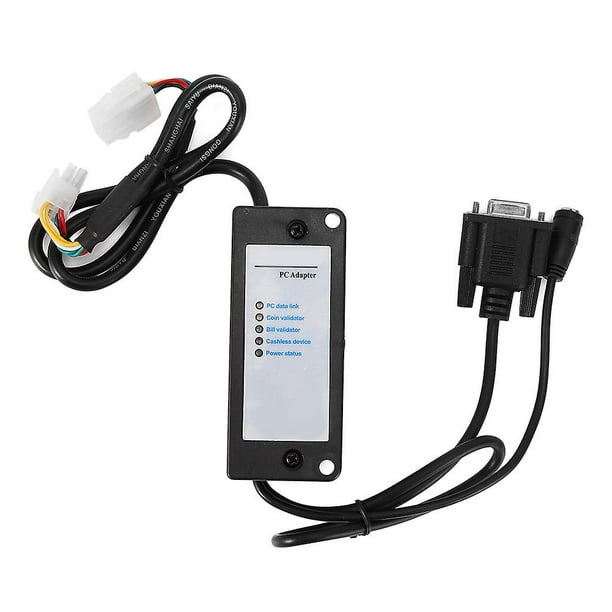

MDB to PC Payment Device Converter RS232 Adapter Bill Acceptor Computer Serial Port Transfer Box

Feature:
1. This converter is used for connecting MDB coin receivers, bill receivers and card readers.
2. You can not only just use the RS232 port of the computer but you can also use for Android motherboard or any other motherboard with RS232 or USB port.
3. If you only have a USB port, you can use the additional USB to RS232 transfer case to create a virtual COM port on your PC or Android board.
4. Supports MDB, coin receiver, bill receiver, cash interface (10H and 60H) and USD interface (40H).
5. Allows the PC to control the coin acceptor, the change dispenser, the smart card reader, the magnetic card, the credit card reader, the bill acceptor and the bill verification.
6. Complies with all NAMA MDB specifications and is compatible with any vending equipment that complies with MDB. The hardware interface comes with cables, user guide and user agreement.
7. A single MDB to RS232 converter can connect up to eight (8) MDB compatible devices.
8. The interface adapter is designed to convert the MDB protocol of the vending machine to the RS‑232 serial protocol.
9. The adapter is used as a slave of the main control system. The main device can be any control system that supports RS‑232 serial communication, such as a PC.
10. This adapter is designed to convert MDB bill acceptor (BA) and MDB coin changer protocols to RS‑232 serial protocol. IU is used as a slave of the master control system.
Specification:
Conditon: 100% New
Item Type: MDB to RS232 Converter
Material: ABS Plastic
Color: As Pictures ShownStart Bit: 1
Data Bits: 8
Stop Bit: 1
Between Bytes: 1 Ms
Response (Maximum): 50 Ms
Master Polling Time: 150-300 Milliseconds
IU Waits for the Main Polling Time Before Rejecting BA and coin changer (Maximum): 3 Seconds
Minimum Voltage: 20V DC
Nominal Voltage: 24-34V DC (or 24-30V AC)
Maximum Voltage: 39V DC
Idle Current Consumption: &lt;0.05A
Cable: Standard Computer Serial Cable, Standard MDB Cable.
Package List:
1 x MDB to RS232 Converter1 x Manual
