<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Features:
1. Fully support for MACH3 and other computer software that supports parallel port control.
2. USB power supply and peripheral power supply are separated to ensure computer security.
3. 12-24V wide peripheral voltage input, with anti-reverse connection function.
4. All input signals are isolated by optical coupling, and can be connected to emergency stop, tool setting, limit, etc.
5. One-way relay output port can control the spindle switch. The output port is P17 port.
6. One-way optocoupler isolated 0-10V analog voltage output can control the inverter with the corresponding analog interface to control the spindle speed. The output port is the P1 port.
7. Open all 17 ports, can be connected with optocoupler drive, can control 5-axis stepper motor.
8. P1 acts as a PWM output and can control the spindle governor with optocoupler input.
9. Can be connected to the common cathode/anode drive with input level of 5V.
Specification:
Input voltage range: 12-24VDC
Package weight: Approx. 335g/11.8oz
Package
l
ist:
1 * Stepper Motor Interface Board
1 * USB Cable
1 * Parallel Port Cable</li></ul>

Peso del Producto Ensamblado

Marca

Dimensiones del producto ensamblado

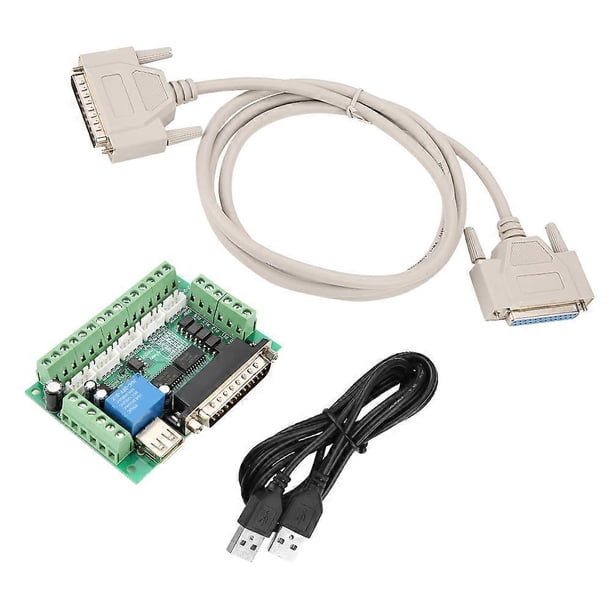

MACH3 5 Axis USB Interface Breakout Board for CNC Stepper Motor

Features:
1. Fully support for MACH3 and other computer software that supports parallel port control.
2. USB power supply and peripheral power supply are separated to ensure computer security.
3. 12-24V wide peripheral voltage input, with anti-reverse connection function.
4. All input signals are isolated by optical coupling, and can be connected to emergency stop, tool setting, limit, etc.
5. One-way relay output port can control the spindle switch. The output port is P17 port.
6. One-way optocoupler isolated 0-10V analog voltage output can control the inverter with the corresponding analog interface to control the spindle speed. The output port is the P1 port.
7. Open all 17 ports, can be connected with optocoupler drive, can control 5-axis stepper motor.
8. P1 acts as a PWM output and can control the spindle governor with optocoupler input.
9. Can be connected to the common cathode/anode drive with input level of 5V.
Specification:
Input voltage range: 12-24VDC
Package weight: Approx. 335g/11.8oz
Package
l
ist:
1 * Stepper Motor Interface Board
1 * USB Cable
1 * Parallel Port Cable
