Name: Light Module, Easy Installation Portable Light Intensity Detection Board, Industry Home For Qualitative Detection Ambient Light Intensity ANGGREK Otros
Brand: Anggrek
SKU: 00593979763101
Availability: OutOfStock

Walmart US Ecommerce Website

GENERAL MERCHANDISE

PHARMACY

GROCERIES

VUDU

SPARK


ADVERTISING

SAVINGS CATCHER

GIFTCARDS

INHOME

AFFILIATE

ONEAPP

LOTUS

HELP

SMART_REORDER

GROCERY

CONV_COMMERCE

GlobalAlertBar baja la app - 080726

MTZ Team | Brand Box - Item Page

MTZ Team | Marquee 1  Item Page

MTZ Team | Marquee 2  Item Page

MTZ Team | Skyline Item Page

Productos Recomendados

MTZ Team | Sponsored Carousels - Product Page

New Item Page - Reviews Placeholder Module, Wednesday, August 23, 2023, 12:41:20:28 pm

Product Description Placeholder Module, Monday, February 13, 2023, 11:53:20:01 am

Product Specifications Placeholder Module, Monday, February 13, 2023, 11:55:48:74 am

Product Warranty Placeholder Module, Monday, February 13, 2023, 11:57:01:93 am

Refurbished Info Placeholder Module, Monday, February 13, 2023, 11:56:19:46 am

SellersSecondaryBuyBox Module, Monday, February 13, 2023, 11:52:40:61 am

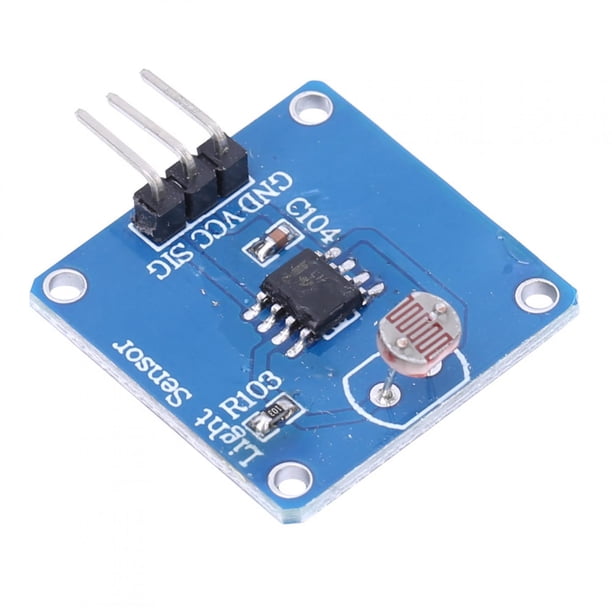

<div>"Producto de importación$$Specification:Item Type:Light Sensor Module$$Voltage: DC 2.7/5/5.5V$$Current @VCC=5V: 0.5-6mA$$Bright Resistance @10lux: 5-20K Ohm $$Control interface: a total of 3 pins GND, VCC, SIG, GND is ground, VCC is the power supply, SIG is the signal output pin;$$Photosensitive resistor: Model GM5528, the smaller the surrounding light intensity, the smaller the resistance, and vice versa;$$Positioning hole: 4 M2 screw positioning holes, the hole diameter is 2.2mm, which makes the module easy to install and position, and realize the module combination.$$Package List:6 x Light Sensor Module$$Note:A0 port is a 10-bit analog-to-digital conversion interface. The full value after AD conversion is 1023. In general, the reference voltage set by Catduino motherboard is VCC here is 5V, 5V is 1023, due to photoresistor and 10K ohm resistor. Connected in series between 5V and GND, according to the principle of resistor divider, 1023-AD0/AD0=R/10K. Among them, AD0 is the value after AD conversion read from A0 port, and R is the resistance value of the photoresistor to be tested. Through this formula, the resistance value can be calculated and the intensity of ambient light can be judged.<br>Producto de importación No hay factura disponible;"</div>

<ul><li><ul><li>Light Sensor Module,Light Intensity Detection Board,Photosensitive Sensor,Light Module,Brightness Detection Sensor</li><li>Voltage follower output analog value with strong anti-interference ability.</li><li>The power supply can be 2.7~5.5V DC.</li><li>4 pcs M2 screw positioning holes for easy installation.</li><li>The module is an electronic module based on 5528 photoresistor for qualitative detection of ambient light intensity.</li><li>The greater the intensity of the ambient light, the smaller the resistance of the photoresistor; conversely, the greater the resistance of the photoresistor.</li></ul></li></ul>

Modelo / Estilo / Tipo

Material

País de Origen

Ancho del Producto Ensamblado

Peso del Producto Ensamblado

Color

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

brand

Light Module, Easy Installation Portable Light Intensity Detection Board, Industry Home For Qualitative Detection Ambient Light Intensity ANGGREK Otros

<ul><li>Light Sensor Module,Light Intensity Detection Board,Photosensitive Sensor,Light Module,Brightness Detection Sensor</li><li>Voltage follower output analog value with strong anti-interference ability.</li><li>The power supply can be 2.7~5.5V DC.</li><li>4 pcs M2 screw positioning holes for easy installation.</li><li>The module is an electronic module based on 5528 photoresistor for qualitative detection of ambient light intensity.</li><li>The greater the intensity of the ambient light, the smaller the resistance of the photoresistor; conversely, the greater the resistance of the photoresistor.</li></ul>
