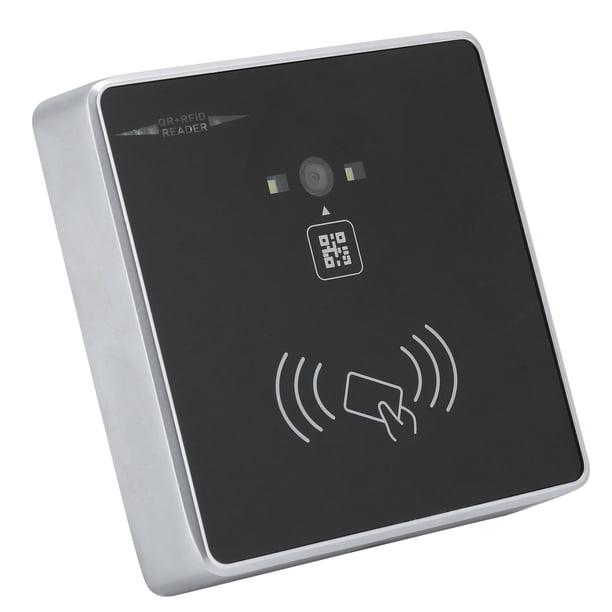

Name: Lector de Tarjetas ANGGREK Código QR Alta Tasa de Reconocimiento
Brand: Anggrek
SKU: 00689873834952
Availability: OutOfStock

Walmart US Ecommerce Website

GENERAL MERCHANDISE

PHARMACY

GROCERIES

VUDU

SPARK


ADVERTISING

SAVINGS CATCHER

GIFTCARDS

INHOME

AFFILIATE

ONEAPP

LOTUS

HELP

SMART_REORDER

GROCERY

CONV_COMMERCE

GlobalAlertBar baja la app - 080726

MTZ Team | Brand Box - Item Page

MTZ Team | Marquee 1  Item Page

MTZ Team | Marquee 2  Item Page

MTZ Team | Skyline Item Page

Productos Recomendados

MTZ Team | Sponsored Carousels - Product Page

New Item Page - Reviews Placeholder Module, Wednesday, August 23, 2023, 12:41:20:28 pm

Product Description Placeholder Module, Monday, February 13, 2023, 11:53:20:01 am

Product Specifications Placeholder Module, Monday, February 13, 2023, 11:55:48:74 am

Product Warranty Placeholder Module, Monday, February 13, 2023, 11:57:01:93 am

Refurbished Info Placeholder Module, Monday, February 13, 2023, 11:56:19:46 am

SellersSecondaryBuyBox Module, Monday, February 13, 2023, 11:52:40:61 am

<div>Producto de importación$$Specification:Item Type: Card Reader Optional Style: ID Card, IC CardMaterial: Zinc Alloy + Acrylic$$Card Reader Type: for EM card$$Barcode Type: QR, barcode$$Communication Method: For Wiegand 26/34/RS232/RS485/TTL$$Working Frequency: 125 Khz$$Decoding Mode: Image decoding$$Reading Direction barcode: 45° inclined plane with the lens as the center point$$Scan Coding Features: Automatic induction, buzzer prompt$$Working Voltage: 8-12V$$Working Current: 800mA$$Card Reading Distance card: Approx. 3 ~ 6cm / 1.2 ~ 2.4in$$Reading Distance QR: Approx. 0 ~ 20cm / 0 ~ 7.9in$$Reading Speed: &lt;200ms$$Operating System: For WindowsXP/7/8/10/Linux$$Light: Standby state blue light is on normally, card reading/scanning state green light is on for about 0.5s$$Built-in Horn: BuzzerLine Sequence Definition:           for Wiegand 26/34   RS485   RS232       Red wire: 12V   Red wire: 12V   Red wire: 12V       Black wire: GND   Black wire: GND   Black wire: GND       Green Wire: D0   Brown wire: 485A   Blue wire: RX       White Wire: D1   Orange wire: 485B   Yellow wire: TX  Note: $$1. The access control card reader cannot store user data and information, and cannot add card users, password users, and fingerprint users. It is only an expanded card or password unlocking tool, which can only be used with access control integrated machines, card time attendance machines and other equipment.$$2. When installing/removing, please turn off the power first and do not operate with power.$$3. The maximum reading distance is in a non-interference environment, the card reader is installed in the correct way, and the card is measured parallel to the surface of the card reader, any electromagnetic interference environment will affect the reading distance.$$4. Do not install the card reader on the surface of magnetic or metal objects. Magnetic and metal materials will seriously affect the RF signal$$5. Do not install the card reader near devices that produce interference electromagnetic fields, such as motors, AC/DC converters, UPS, relays, monitors, etc.$$6. The power supply should make sure sufficient power, try to use a linear power supply, and the door lock and controller should be powered separately. Install the power supply as close as possible to the electrical equipment to avoid interference and transmission loss.$$7. It is recommended to pay attention to separate the strong and weak current when wiring, and the separation requirement is greater than 20cm. The power cord should be a multi-stranded wire with a sufficiently thick wire diameter.$$Package List:1 x Card Reader $$Note:<br><br>Producto de importación No hay factura disponible;</div>

<ul><li><ul><li>Adopt standard 86 box industry standard, fast scanning speed and high recognition rate.</li><li>Strong compatibility, can be connected to any controller that supports for Wiegand input.</li><li>Widely used in business office building visitor entry management, scenic tourist staff management, community visitor entry and exit management, smart home, etc.</li><li>Achieve perfect upgrades for traditional credit card systems in various industries.</li><li>Small size, easy to carry and store, convenient to use and with  performance.</li></ul></li></ul>

Modelo / Estilo / Tipo

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Color

Conexiones

Contenido del Empaque

Wi-Fi

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

brand

Lector de Tarjetas ANGGREK Código QR Alta Tasa de Reconocimiento

<ul><li>Adopt standard 86 box industry standard, fast scanning speed and high recognition rate.</li><li>Strong compatibility, can be connected to any controller that supports for Wiegand input.</li><li>Widely used in business office building visitor entry management, scenic tourist staff management, community visitor entry and exit management, smart home, etc.</li><li>Achieve perfect upgrades for traditional credit card systems in various industries.</li><li>Small size, easy to carry and store, convenient to use and with  performance.</li></ul>
