<div>¡El producto es muy bueno, ¡ creo que te gustará!</div>

<ul><li>1、The driver uses advanced 32-bit special motor control chip and vector closed-loop control technology 2、Stepping closed-loop circuit system, no loss of movement synchronization 3、Improve motor output moment of force and speed 4、Current is adjusted depending on the load, reducing motor temperature rise 5、Fit for all kinds of machinery load conditions (including low rigidity belt wheel and pulley) without adjusting the gain parameters
<div>Description:
 HSS86 is a two-phase hybrid stepper motor servo driver, adopting new
32-bit control technology and vector control technology that can prevent
 loss of movement synchronization and ensures accuracy. High-speed moment of force attenuation is far lower than the traditional open-loop driver,
which can greatly increase high - speed performance and torque of
stepper motor.Load-based current control technology can effectively
reduce temperature rise of motor and prolong motor service life.
Built-in position and alarm output signal is convenient for PC
monitoring and controlling. Position out-of-tolerance alarm function
ensures machining equipment safe operation.The driver is a great
replacement for traditional open loop stepping driver and can replace
part of traditional AC servo system.

Features:
<ul><li>
		The driver uses advanced 32-bit special motor control chip and vector closed-loop control technology.
	</li><li>
		 Stepping closed-loop circuit system, no loss of movement synchronization.
	</li><li>
		 Improve motor output moment of force and speed.
	</li><li>
		 Current is adjusted depending on the load, reducing motor temperature rise.
	</li><li>
		 Fit for all kinds of machinery load conditions (including low rigidity
belt wheel and pulley) without adjusting the gain parameters.
	</li><li>
		 Motor runs smoothly, vibrates mildly, and improves acceleration and deceleration dynamic performance.
	</li><li>
		 Zero speed static ability of no vibration after completion of positioning.
	</li><li>
		 Impulse response frequency is up to 200kHz.
	</li><li>
		 Maximum 51200 steps/rotation, 16 kinds of optional segment.
	</li><li>
		It supports over current protection, over voltage protection, position out-of-tolerance protection.
	</li></ul>




	Specifications:


	Voltage: AC20V~80V / DC30~110V


	Peak Output Current: 8.0A (current changes along with load)


	Logic Input Current: 7~20mA


	Pulse Frequency: 0~200KHz


	Encoder Lines: 1000
 Insulation Resistance: &gt;=500MΩ


	Motor Rated Voltage: 70V

</div></li></ul>

Peso del Producto Ensamblado

Marca

FabricanteNombre del Fabricante

Dimensiones del producto ensamblado

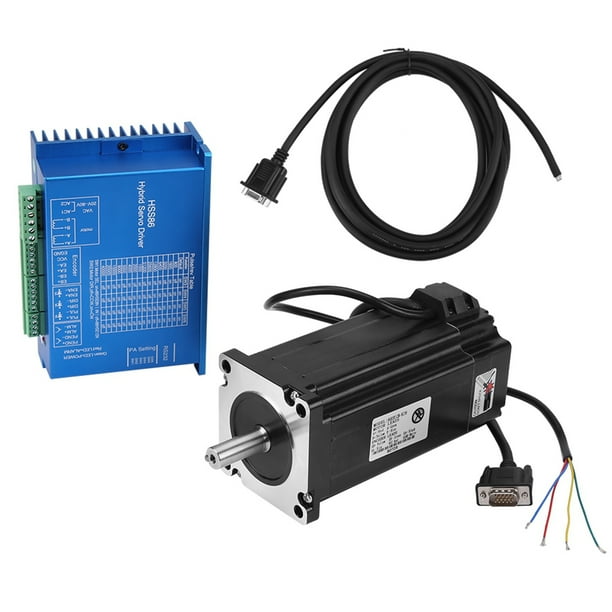

HSS86 Hybrid Servo Driver NEMA34 Closed Loop High Speed Stepper Servo Motor 12N.M 0~3000RPM

1、The driver uses advanced 32-bit special motor control chip and vector closed-loop control technology 2、Stepping closed-loop circuit system, no loss of movement synchronization 3、Improve motor output moment of force and speed 4、Current is adjusted depending on the load, reducing motor temperature rise 5、Fit for all kinds of machinery load conditions (including low rigidity belt wheel and pulley) without adjusting the gain parameters
<div>Description:
 HSS86 is a two-phase hybrid stepper motor servo driver, adopting new
32-bit control technology and vector control technology that can prevent
 loss of movement synchronization and ensures accuracy. High-speed moment of force attenuation is far lower than the traditional open-loop driver,
which can greatly increase high - speed performance and torque of
stepper motor.Load-based current control technology can effectively
reduce temperature rise of motor and prolong motor service life.
Built-in position and alarm output signal is convenient for PC
monitoring and controlling. Position out-of-tolerance alarm function
ensures machining equipment safe operation.The driver is a great
replacement for traditional open loop stepping driver and can replace
part of traditional AC servo system.

Features:
<ul><li>
		The driver uses advanced 32-bit special motor control chip and vector closed-loop control technology.
	</li><li>
		 Stepping closed-loop circuit system, no loss of movement synchronization.
	</li><li>
		 Improve motor output moment of force and speed.
	</li><li>
		 Current is adjusted depending on the load, reducing motor temperature rise.
	</li><li>
		 Fit for all kinds of machinery load conditions (including low rigidity
belt wheel and pulley) without adjusting the gain parameters.
	</li><li>
		 Motor runs smoothly, vibrates mildly, and improves acceleration and deceleration dynamic performance.
	</li><li>
		 Zero speed static ability of no vibration after completion of positioning.
	</li><li>
		 Impulse response frequency is up to 200kHz.
	</li><li>
		 Maximum 51200 steps/rotation, 16 kinds of optional segment.
	</li><li>
		It supports over current protection, over voltage protection, position out-of-tolerance protection.
	</li></ul>




	Specifications:


	Voltage: AC20V~80V / DC30~110V


	Peak Output Current: 8.0A (current changes along with load)


	Logic Input Current: 7~20mA


	Pulse Frequency: 0~200KHz


	Encoder Lines: 1000
 Insulation Resistance: &gt;=500MΩ


	Motor Rated Voltage: 70V

</div>
