<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Features:
1 way VGA signal input, 2-way AV signal input, 1-way reversing signal input
1-way HDMI signal input, and the IC supports HDMI1.2
Support wide voltage input, and can normally work between 9V-24V
The standard backlight 6PIN interface, can be an external high-voltage board
The driver board integrated LCD screen LED backlight drive board,
The standard LVDS signal output, can support single 6, single 8, double 6, double 8 standard LVDS signal LCD screen, but only support the screen power supply for the 3.3V LCD screen
The standard keypad interface, and supports two-color LED indicator
Support TTL signal output,Can support AT070TN92,
AT065TN14
,AT080TN52
, AT090TN12
, AT090TN10
, AT070TN90, AT070TN93,
AT070TN94, etc., universal 50PIN interface TTL LCD screen
With the LCD screen adapter board, can support the following LCD screen:
EJ070NA01-1024X600 resolution,
EJ080NA04B-1024X768 resolution,
ZJ070NA01, model of the universal 40PIN high score LCD screen
With the LCD screen adapter board, you can also support 4.3,5,6,7 inch, 40PIN common screen, the definition see AT0543TN24V, 1
The drive board maximum output display resolution, 1920X1080 over, 1440X900 display resolution, the need to look at the work of the IC, increase the heat sink to reduce the IC's operating temperature)
The VGA part of the IC can be directly input YPBPR signal, the need to achieve through software programs
The driver board can increase the remote control function, need to achieve through the software program
Support reversing control, and display in AV2, the reverse voltage support within 50V voltage input
Specifications:
Type: HDMI VGA 2AV Reversing Driver Board
Input
voltage: 9V-24V
Weight: 79g
Package includes:
1 x
Reversing Driver Board with cable
1 x remote control
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

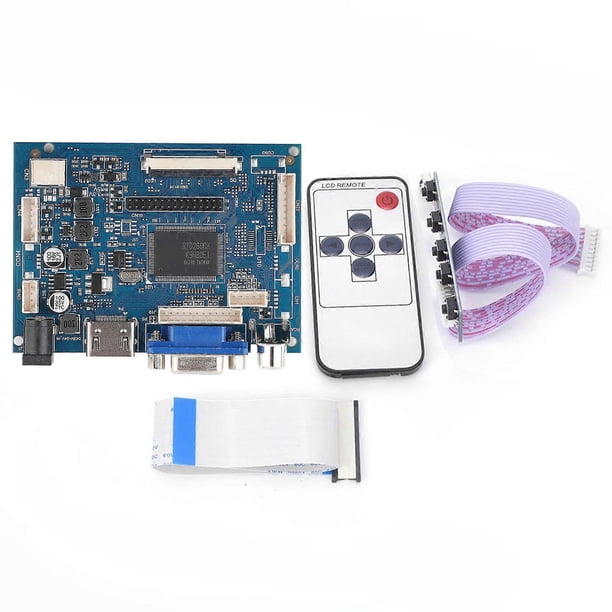

HDMI VGA 2AV Reversing Driver Board for 7inch AT070TN92 800x480 LCD Display

Features:
1 way VGA signal input, 2-way AV signal input, 1-way reversing signal input
1-way HDMI signal input, and the IC supports HDMI1.2
Support wide voltage input, and can normally work between 9V-24V
The standard backlight 6PIN interface, can be an external high-voltage board
The driver board integrated LCD screen LED backlight drive board,
The standard LVDS signal output, can support single 6, single 8, double 6, double 8 standard LVDS signal LCD screen, but only support the screen power supply for the 3.3V LCD screen
The standard keypad interface, and supports two-color LED indicator
Support TTL signal output,Can support AT070TN92,
AT065TN14
,AT080TN52
, AT090TN12
, AT090TN10
, AT070TN90, AT070TN93,
AT070TN94, etc., universal 50PIN interface TTL LCD screen
With the LCD screen adapter board, can support the following LCD screen:
EJ070NA01-1024X600 resolution,
EJ080NA04B-1024X768 resolution,
ZJ070NA01, model of the universal 40PIN high score LCD screen
With the LCD screen adapter board, you can also support 4.3,5,6,7 inch, 40PIN common screen, the definition see AT0543TN24V, 1
The drive board maximum output display resolution, 1920X1080 over, 1440X900 display resolution, the need to look at the work of the IC, increase the heat sink to reduce the IC's operating temperature)
The VGA part of the IC can be directly input YPBPR signal, the need to achieve through software programs
The driver board can increase the remote control function, need to achieve through the software program
Support reversing control, and display in AV2, the reverse voltage support within 50V voltage input
Specifications:
Type: HDMI VGA 2AV Reversing Driver Board
Input
voltage: 9V-24V
Weight: 79g
Package includes:
1 x
Reversing Driver Board with cable
1 x remote control
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
.
