<div>¡El producto es muy bueno, ¡ creo que te gustará!</div>

<ul><li>1、Three‑proof paint spraying works for protecting circuit boards and related equipment from environmental erosion. Has good resistance to high and low temperature, excellent insulation, moisture resistance, leakage resistance, shock resistance, aging resistance, anti‑corona, etc. 2、This DC signal isolator support 35mm standard rail installation, possess strong versatility 3、The product provide input/output/power supply/shell isolation, have strong anti‑interference ability, high reliability 4、Universal for two‑wire system, three‑wire system transmitter. DC24V power supply, provides isolated power distribution for the transmitter on site, and at the same time isolates and transmits the current signal generated by the transmitter from the site to the control room, PLC, DCS and other input terminal interface current source 5、The internal use of good‑efficiency magnetic isolation technology, the input, output, and power supply are isolated from each other, come with the characteristics of high accuracy, high linearity, low temperature drift, etc.
Item Type: DC Signal Isolator Material: ABS Model: GLG Channel: 1 in 1 out PWR (15-, 16+): 24V DC Input: 0-5V Distribution Voltage: DC24V 2-Wire System: (9-, 13+) 3-Wire System: (9+, 10-, 13+) Power Supply: (9+,10-) Output: Channel 1 (1+, 2-): 0-5V Output Current: Load≤500Ω Output Voltage: Load≥10KΩ Accuracy: 0.1% FS Working Temperature Range: -20~+55℃ Electromagnetic Compatibility: Comply with GB/T 18268 (1EC61326-1) Applicable Field Equipment: Two-wire, three-wire transmitter, current source
1 x DC Signal Isolator</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

brand

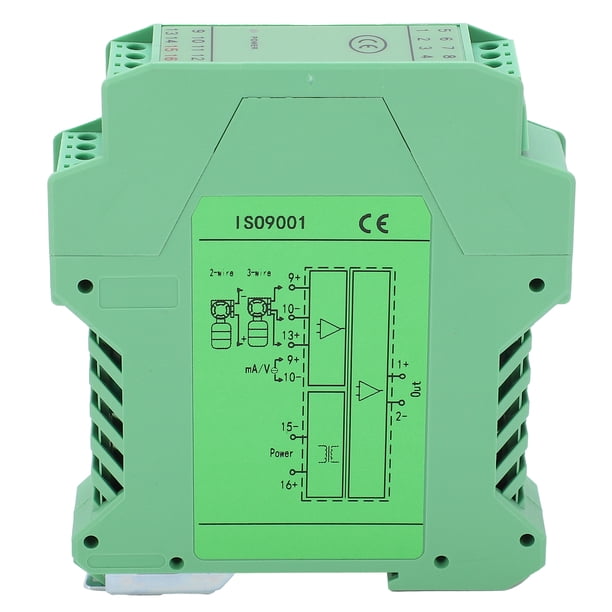

DC Signal Isolator Current Voltage Transmitter DIN Rail Mount 1‑in 1‑out 0‑5V to 0‑5V GLG

1、Three‑proof paint spraying works for protecting circuit boards and related equipment from environmental erosion. Has good resistance to high and low temperature, excellent insulation, moisture resistance, leakage resistance, shock resistance, aging resistance, anti‑corona, etc. 2、This DC signal isolator support 35mm standard rail installation, possess strong versatility 3、The product provide input/output/power supply/shell isolation, have strong anti‑interference ability, high reliability 4、Universal for two‑wire system, three‑wire system transmitter. DC24V power supply, provides isolated power distribution for the transmitter on site, and at the same time isolates and transmits the current signal generated by the transmitter from the site to the control room, PLC, DCS and other input terminal interface current source 5、The internal use of good‑efficiency magnetic isolation technology, the input, output, and power supply are isolated from each other, come with the characteristics of high accuracy, high linearity, low temperature drift, etc.
Item Type: DC Signal Isolator Material: ABS Model: GLG Channel: 1 in 1 out PWR (15-, 16+): 24V DC Input: 0-5V Distribution Voltage: DC24V 2-Wire System: (9-, 13+) 3-Wire System: (9+, 10-, 13+) Power Supply: (9+,10-) Output: Channel 1 (1+, 2-): 0-5V Output Current: Load≤500Ω Output Voltage: Load≥10KΩ Accuracy: 0.1% FS Working Temperature Range: -20~+55℃ Electromagnetic Compatibility: Comply with GB/T 18268 (1EC61326-1) Applicable Field Equipment: Two-wire, three-wire transmitter, current source
1 x DC Signal Isolator
