<div>¡El producto es muy bueno, ¡ creo que te gustará!</div>

<ul><li>1、Display Interface: The CNC controller provides display interface for parameter classification, alarm log, system diagnosis, etc., which is convenient for debugging and maintenance. 2、Multiple Commands: Up to 40 kinds of G commands, dual spindle analog output, support drilling cycle, tapping cycle, with strong practicability. 3、Other Functions: Support multiple level operation authority, convenient equipment management, and have a time limited system lock function. 4、Functional Parts: 3.5in TFT LCD display with resolution of 480 x 320, 5pcs MDI software keys and U disk interface, easy to operate. 5、Wide Applications: Commonly used in CNC drilling machines, milling machines, automation equipment, automatic welding robots, coordinate robots, etc.
Item Type: CNC Motion Controller Product Material: ABS Linkage Axes Number: Full linkage Analog Spindle: 2 Spindle Monitoring: Yes Small Command Unit: 0.001 mm Large Command Value: ±99999999 x small command unit Rapid Feed Rate: 12000mm/min Rapid Feedrate Override: F0, 25%, 50%, 100 Cutting Feed Rate: 12000mm/min Feed Rate Override: 0-150% Electronic Gear Ratio: 1-65535:1-65535 Automatic Acceleration and Deceleration: Yes Positioning: G00 (Possible linear interpolation positioning) Interpolation: Linear (G01), arc (G02/G03/G12), spiral interpolation Return to Reference Point: Return to reference point automatically (G28) LCD: 3.5in TFT LCD screen, resolution 480x320 MDI Software Keys: 5 Single Step Feed: x1, x10, x100 Communication Interface: U disk interface External Handwheel Interface: Yes I/O Interface: 24/24 (expandable to 96/96) Pause (Seconds): Yes Exact Stop Status: Yes Exact Stop: Yes Store Itinerary Check: Yes MDI Operation: Yes, support multiple stage operation Reset: Yes Jump Switch: Yes Single Stage Operation: Yes Program Protection Switch: Yes Self Diagnosis Function: Yes Emergency Stop: Yes Power Supply: DC 24V Coordinate System: Machine coordinate system (G53), workpiece coordinate system (G92, G54-G59), local coordinate system (G52), coordinate system plane designation Automatic Coordinate System Setting: Yes Decimal Point Input: Yes Auxiliary Functions: M2 digits, M code customization, manual, MDI, automatic control of the spindle forward, reverse, and stop; control the start and stop of the coolant; control the start and stop of the lubrication, etc. Spindle Function: Double spindle Tapping: Support Spindle Analog Output: Yes, dual spindle Tool Function: Support centering tool setting, 3 point centering tool setting Tool Compensation Memory: -9999.999-9999.999, 99 Tool Compensation: Length compensation of each axes Editing Functions: Parameter, diagnosis, bit by bit input, program editing, MDI multiple segment execution Storage Capacity: 128M Number Of Stored Programs: N Program Name Display: Chinese, English, number, combination Program Line Search: Yes Skip Optional Program Segment: Yes Program Switch: Yes Display: Chinese, English Processing Time, Number of Parts Display: Yes Spindle Speed, M/S Command: Yes Usage Scenarios: Good choice of CNC drilling machines, CNC milling machines, special machine tools, automation equipment, automatic welding robots, feeding robots, coordinate robots, etc.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

brand

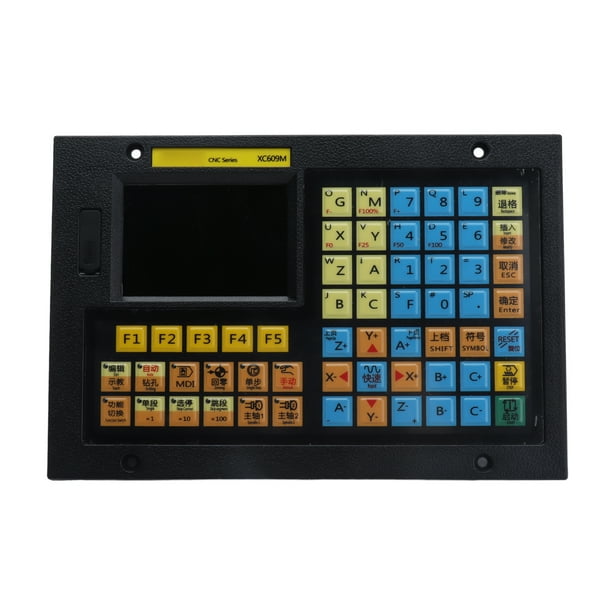

CNC Motion Controller 3.5in LCD Display Linkage Milling Drilling Machine Control System DC 24V5 Axes

1、Display Interface: The CNC controller provides display interface for parameter classification, alarm log, system diagnosis, etc., which is convenient for debugging and maintenance. 2、Multiple Commands: Up to 40 kinds of G commands, dual spindle analog output, support drilling cycle, tapping cycle, with strong practicability. 3、Other Functions: Support multiple level operation authority, convenient equipment management, and have a time limited system lock function. 4、Functional Parts: 3.5in TFT LCD display with resolution of 480 x 320, 5pcs MDI software keys and U disk interface, easy to operate. 5、Wide Applications: Commonly used in CNC drilling machines, milling machines, automation equipment, automatic welding robots, coordinate robots, etc.
Item Type: CNC Motion Controller Product Material: ABS Linkage Axes Number: Full linkage Analog Spindle: 2 Spindle Monitoring: Yes Small Command Unit: 0.001 mm Large Command Value: ±99999999 x small command unit Rapid Feed Rate: 12000mm/min Rapid Feedrate Override: F0, 25%, 50%, 100 Cutting Feed Rate: 12000mm/min Feed Rate Override: 0-150% Electronic Gear Ratio: 1-65535:1-65535 Automatic Acceleration and Deceleration: Yes Positioning: G00 (Possible linear interpolation positioning) Interpolation: Linear (G01), arc (G02/G03/G12), spiral interpolation Return to Reference Point: Return to reference point automatically (G28) LCD: 3.5in TFT LCD screen, resolution 480x320 MDI Software Keys: 5 Single Step Feed: x1, x10, x100 Communication Interface: U disk interface External Handwheel Interface: Yes I/O Interface: 24/24 (expandable to 96/96) Pause (Seconds): Yes Exact Stop Status: Yes Exact Stop: Yes Store Itinerary Check: Yes MDI Operation: Yes, support multiple stage operation Reset: Yes Jump Switch: Yes Single Stage Operation: Yes Program Protection Switch: Yes Self Diagnosis Function: Yes Emergency Stop: Yes Power Supply: DC 24V Coordinate System: Machine coordinate system (G53), workpiece coordinate system (G92, G54-G59), local coordinate system (G52), coordinate system plane designation Automatic Coordinate System Setting: Yes Decimal Point Input: Yes Auxiliary Functions: M2 digits, M code customization, manual, MDI, automatic control of the spindle forward, reverse, and stop; control the start and stop of the coolant; control the start and stop of the lubrication, etc. Spindle Function: Double spindle Tapping: Support Spindle Analog Output: Yes, dual spindle Tool Function: Support centering tool setting, 3 point centering tool setting Tool Compensation Memory: -9999.999-9999.999, 99 Tool Compensation: Length compensation of each axes Editing Functions: Parameter, diagnosis, bit by bit input, program editing, MDI multiple segment execution Storage Capacity: 128M Number Of Stored Programs: N Program Name Display: Chinese, English, number, combination Program Line Search: Yes Skip Optional Program Segment: Yes Program Switch: Yes Display: Chinese, English Processing Time, Number of Parts Display: Yes Spindle Speed, M/S Command: Yes Usage Scenarios: Good choice of CNC drilling machines, CNC milling machines, special machine tools, automation equipment, automatic welding robots, feeding robots, coordinate robots, etc.
