<div>¡El producto es muy bueno, ¡ creo que te gustará!</div>

<ul><li>1、OFFLINE LASER ENGRAVING: Adopt for GRBL1.1f firmware, possess stable performance. With optional offline module, realize offline tool setting and engraving. Laser directly into the picture for engraving, no programming, no design, simple and convenient 2、ADJUSTABLE POWER: The laser supports PWM or TTL signal control, and the power is adjustable from 0-100%. Spindle supports PWM power 0-100% adjustable. Enhanced spindle drive can support 20000rpm spindle 3、STABLE OVERCURRENT PROTECTION: Provide stepper motor overcurrent protection to avoid damage, upgrade integrated stepper motor drive, 2A high current with high stability. Added power button switch 4、GOOD HEAT DISSIPATION: Professional shell protection, the fan actively dissipates heat, and does not heat up for a long time. Increase the fan port for forced heat dissipation, increase the shell to protect the control board during transportation, and avoid short circuit problems during use 5、SHORT CIRCUIT PROTECTION FUNCTION: Cancel the drive module, use an integrated imported stepping motor drive, with short circuit protection, integrated heat dissipation aluminum alloy 6、AUTOMATICALLY IDENTIFY WITH OPTOCOUPLER ISOLATION: Add offline recognition, can insert offline module and computer at the same time. Offline will automatically identify whether there is computer control. The spindle drive increases the optocoupler isolation, so that the control board generates less heat, and the spindle speed regulation is more linear and safer 7、IMPROVED USB INTERFACE: The original USB interface is patch welding, easy to drop due to transportation collision and improper use, and now it is changed to a plug in, very powerful
Item Type: CNC Engraving Machine Control Board Connection: USB (USB CH340) Software: For GRBL Controller, for UniversalGcodeSender Main Control Chip: For Atmel 328P Spindle Drive Chip: For MOSFET (recommended 24V, current within 10A) Spindle PWM Speed Regulation: Support Support Stepper Motor: 12V, within 1.5A, it is recommended that the maximum current be less than 2A, and heating. (any stepper motor 42, 57) Laser Engraving: Support Power Interface: 5.5-2.5mm DC interface Supports: For GRBL Contol or Candle (3 axes); Laser for Grbl Support System: For Windows XP 7 8 10 Support Laser: 12V 5A maximum Spindle Motor Interface: Maximum support 400W DC spindle motor Support XYZ three axes control, spindle, laser head
1 x CNC Engraving Machine Control Board1 x USB Data Cable</li></ul>

Cantidad de Piezas

País de Origen

Usos Recomendados

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Características Adicionales

Condición

Número de Piezas

Material

Ancho del Producto Ensamblado

Gama Color

Accesorio

Altura del Producto Ensamblado

brand

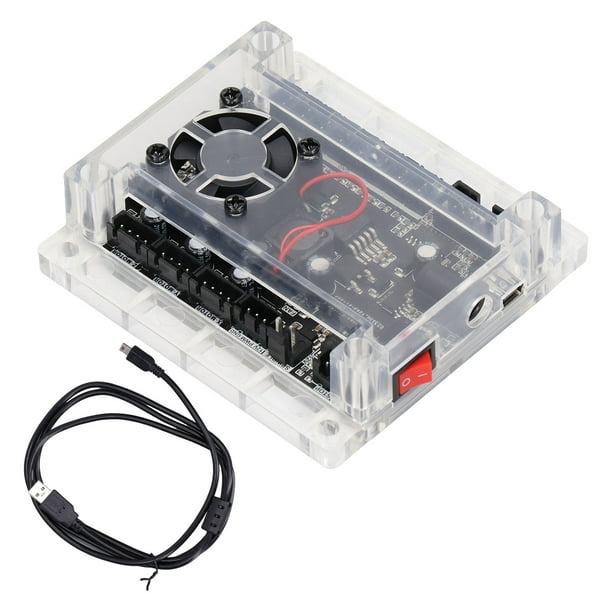

CNC Engraving Machine Control Board 3 Axes for GRBL 1.1F V3.4 USB DIY Small Engraver Controller

1、OFFLINE LASER ENGRAVING: Adopt for GRBL1.1f firmware, possess stable performance. With optional offline module, realize offline tool setting and engraving. Laser directly into the picture for engraving, no programming, no design, simple and convenient 2、ADJUSTABLE POWER: The laser supports PWM or TTL signal control, and the power is adjustable from 0-100%. Spindle supports PWM power 0-100% adjustable. Enhanced spindle drive can support 20000rpm spindle 3、STABLE OVERCURRENT PROTECTION: Provide stepper motor overcurrent protection to avoid damage, upgrade integrated stepper motor drive, 2A high current with high stability. Added power button switch 4、GOOD HEAT DISSIPATION: Professional shell protection, the fan actively dissipates heat, and does not heat up for a long time. Increase the fan port for forced heat dissipation, increase the shell to protect the control board during transportation, and avoid short circuit problems during use 5、SHORT CIRCUIT PROTECTION FUNCTION: Cancel the drive module, use an integrated imported stepping motor drive, with short circuit protection, integrated heat dissipation aluminum alloy 6、AUTOMATICALLY IDENTIFY WITH OPTOCOUPLER ISOLATION: Add offline recognition, can insert offline module and computer at the same time. Offline will automatically identify whether there is computer control. The spindle drive increases the optocoupler isolation, so that the control board generates less heat, and the spindle speed regulation is more linear and safer 7、IMPROVED USB INTERFACE: The original USB interface is patch welding, easy to drop due to transportation collision and improper use, and now it is changed to a plug in, very powerful
Item Type: CNC Engraving Machine Control Board Connection: USB (USB CH340) Software: For GRBL Controller, for UniversalGcodeSender Main Control Chip: For Atmel 328P Spindle Drive Chip: For MOSFET (recommended 24V, current within 10A) Spindle PWM Speed Regulation: Support Support Stepper Motor: 12V, within 1.5A, it is recommended that the maximum current be less than 2A, and heating. (any stepper motor 42, 57) Laser Engraving: Support Power Interface: 5.5-2.5mm DC interface Supports: For GRBL Contol or Candle (3 axes); Laser for Grbl Support System: For Windows XP 7 8 10 Support Laser: 12V 5A maximum Spindle Motor Interface: Maximum support 400W DC spindle motor Support XYZ three axes control, spindle, laser head
1 x CNC Engraving Machine Control Board1 x USB Data Cable
