<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

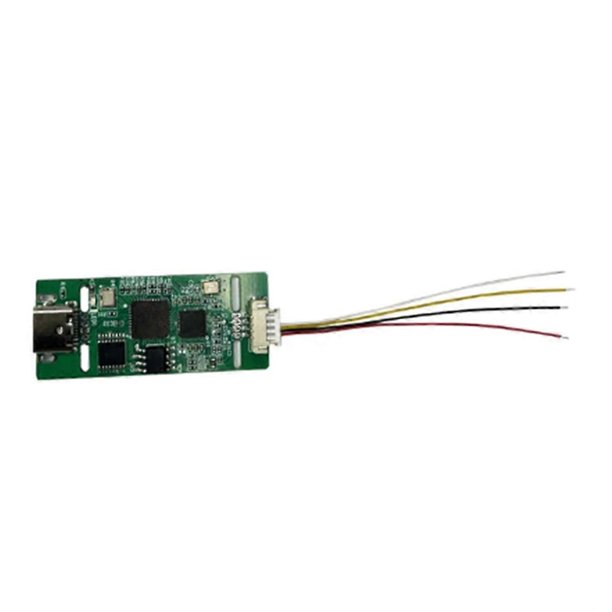

<ul><li>: 1. This product supports AHD video signal and audio input (automatically compatible with PAL and NTSC 720P and 1080P resolution).
2. Through the Type-C interface output to the computer cell phone audio and video capture devices.
3. Compliance with UVC / specifications of the audio and video capture module
4. Compatible with system linux system, Android, MacOS is a plug-and-play, Type-C drive-free HD video capture tool!
Instructions for use:
1.AHD signal source connects to the 1.25*4pin port of the module (from left to right: 5V output, GND, video input, audio input).
2. The TYPE-C port of the module is connected to the computer, cell phone, tablet, etc.
3. Open the capture software on the computer or cell phone to display the screen.
Product parameters: 1.25mm*4pin terminal block
Input signal: AHD 720P/1080P signal (compatible with PAL and NTSC)
Output interface: TYPE-C
Output format: MJPEG YUV422
Video output resolution and frame rate:
In MJPEG format: 1920*1080 (30 frames), 1280*720 (60 frames), 800*600, 720*576, 720*480, 640*480, 480*320, 320*240
In YUY2 format: up to 1920*1080(5 frames),1280*720 (10 frames),720*576 (25 frames), 720*480 (30 frames), 640*480, 480*320, 320*240
Audio output: 48KHZ stereo
Audio and video protocol: standard UVC/
Driver: free installation driver, plug and play
support: /Linux/Android/MACOS
Common acquisition software: OBS/Potplayer ()
Product power consumption: Less than 3 Wat
Material: PC+Metal
colour: green
Package Contents:
1 x module(Type-C)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.</li></ul>
