<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Item Type: Geared Motor

Working Voltage: DC6V

Use Range: DC3-9V

CCM2 DC Motor Governor Parameters:

DC motor regulator CW and CCW control

This governor uses PWM speed control technology, which has the characteristics of high conversion efficiency, wide speed range and stable performance. All of them use imported semiconductor original chips, and the circuits are stable and reliable after a number of tests such as voltage, current, and functions before leaving the factory.

Model: CCM2

Working Voltage: DC 10V-30V

Control Power: 12V x 3A=36W, 24V x 3A=72W, 24V, maximum 120W

Rated Current: 3A

Maximum Current: 5A

PWM Pulse Width Adjustment Range: 5%-95%

Potentiometer: Resistance value B10K, wire length is approx. 20cm / 7.9in, opening approx. 8mm / 0.3in

Output Voltage: About 0-100% of the input voltage

Speed Governor Size: Approx. 74 x 47 x 28mm / 2.9 x 1.9 x 1.1in

Potentiometer is used for speed regulation

CW and CCW switche is used to control forward, reverse, and stop



Voltage V666666666

Rotating Speed RPM1501005040302520105

Rated Torsion Kg.cm0.20.50.725.36.7915.926.5

Rated Current A0.60.60.60.60.60.60.60.60.6

Maximum Torsion Kg.cm0.91.627.51013183045

Stall Current A3.33.33.33.33.33.33.33.33.3</li></ul>

Peso del Producto Ensamblado

Marca

Dimensiones del producto ensamblado

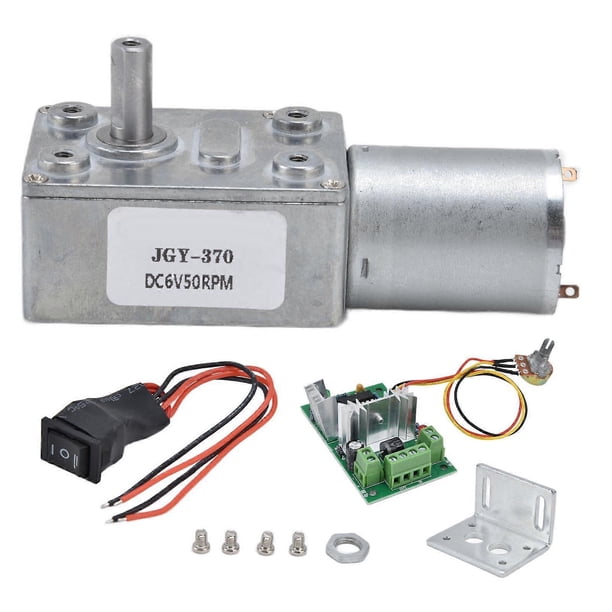

6V Geared Motor DC Turbo Worm Mini Speed Reduction Electric Motors with Governor JGY3706V50RPM

Item Type: Geared Motor

Working Voltage: DC6V

Use Range: DC3-9V

CCM2 DC Motor Governor Parameters:

DC motor regulator CW and CCW control

This governor uses PWM speed control technology, which has the characteristics of high conversion efficiency, wide speed range and stable performance. All of them use imported semiconductor original chips, and the circuits are stable and reliable after a number of tests such as voltage, current, and functions before leaving the factory.

Model: CCM2

Working Voltage: DC 10V-30V

Control Power: 12V x 3A=36W, 24V x 3A=72W, 24V, maximum 120W

Rated Current: 3A

Maximum Current: 5A

PWM Pulse Width Adjustment Range: 5%-95%

Potentiometer: Resistance value B10K, wire length is approx. 20cm / 7.9in, opening approx. 8mm / 0.3in

Output Voltage: About 0-100% of the input voltage

Speed Governor Size: Approx. 74 x 47 x 28mm / 2.9 x 1.9 x 1.1in

Potentiometer is used for speed regulation

CW and CCW switche is used to control forward, reverse, and stop



Voltage V666666666

Rotating Speed RPM1501005040302520105

Rated Torsion Kg.cm0.20.50.725.36.7915.926.5

Rated Current A0.60.60.60.60.60.60.60.60.6

Maximum Torsion Kg.cm0.91.627.51013183045

Stall Current A3.33.33.33.33.33.33.33.33.3
