<div>¡El producto es muy bueno, ¡ creo que te gustará!</div>

<ul><li>1、When the battery is under voltage, disconnect the load and connect the charger. When the battery is over voltage, disconnect the charger and connect the load 2、This battery charging controller has the function of parameters adjustable, power failure memory function 3、The control voltage is 10V‑60V, and with high accuracy of 0.1V 4、This battery charging controller is suitable for storage battery, lithium battery, etc 5、This charging controller protects battery undervoltage, protects battery overcharge, protects load control
<div>
	Specifications:


	This battery charging controller has the function of parameters adjustable, power failure memory function. When
 the battery is under voltage, disconnect the load and connect the
charger. When the battery is over voltage, disconnect the charger and
connect the load.





	Features:

<ul><li>
		When
 the battery is under voltage, disconnect the load and connect the
charger. When the battery is over voltage, disconnect the charger and
connect the load.
	</li><li>
		This battery charging controller has the function of parameters adjustable, power failure memory function.
	</li><li>
		The control voltage is 10V-60V, and with high accuracy of 0.1V.
	</li><li>
		This battery charging controller is suitable for&nbsp;storage battery, lithium battery, etc.
	</li><li>
		This charging controller protects battery undervoltage, protects battery overcharge, protects load control.
	</li></ul>




	Specifications:


	Model: YX815
 Control voltage: 10V-60V
 Control current: 20A
 Control accuracy: 0.1V
 Voltage error: ±0.1V
 Scope: &nbsp;storage battery, lithium battery, etc
 Packing: antistatic bag


	Size: 7.9 x 4.3 x 2.8cm/3.11 x 1.69 x 1.10inch
 Installation size: 76 x 39.5mm/2.99 x 1.56inch


	Weight: 44g



Voltage setting method:
In setting state(digital tube flashes)
S1: up-regulated voltage
S2: down-regulated voltage
S1 undervoltage setting button (charging startup, load stop):
1.Under normal display voltage, press the S1 button to display the charging start(load stop )voltage value.
2.Long
 press the s1 button digital lamp tube flashing, and set charging
startup voltage（load stop） value through s1 and s2 buttons.
S2overvoltage setting button (charging stop, load start):
1.Under normal display voltage, press the S2 button to display the charging stop （load start up）voltage value.
2.Long press s2 button digital lamp tube flashing, through s1 and s2 buttons to set charging stop （load start up）voltage value.
Restore factory Settings:
Under
 the state of electri</div></li></ul>

Cantidad de Piezas

Forma

País de Origen

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Condición

Número de Piezas

Material

Nombre del Modelo Comercial

Ancho del Producto Ensamblado

Gama Color

Color

Número de Modelo

Altura del Producto Ensamblado

brand

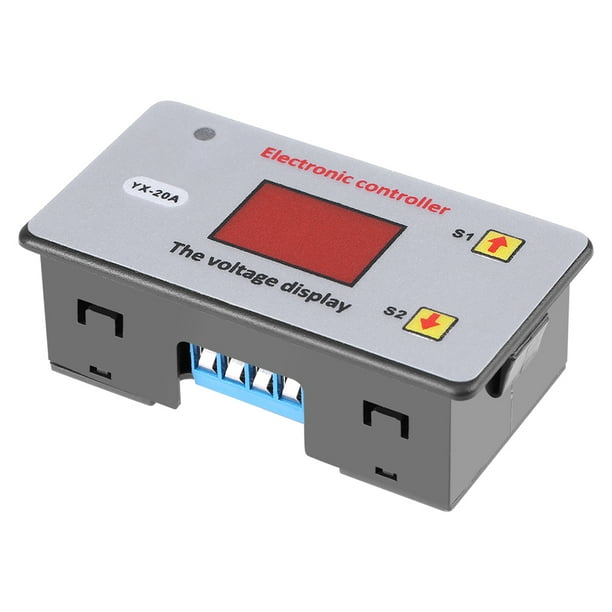

6-48V Battery Charging Controller Module for Undervoltage Control Over discharge Protection

1、When the battery is under voltage, disconnect the load and connect the charger. When the battery is over voltage, disconnect the charger and connect the load 2、This battery charging controller has the function of parameters adjustable, power failure memory function 3、The control voltage is 10V‑60V, and with high accuracy of 0.1V 4、This battery charging controller is suitable for storage battery, lithium battery, etc 5、This charging controller protects battery undervoltage, protects battery overcharge, protects load control
<div>
	Specifications:


	This battery charging controller has the function of parameters adjustable, power failure memory function. When
 the battery is under voltage, disconnect the load and connect the
charger. When the battery is over voltage, disconnect the charger and
connect the load.





	Features:

<ul><li>
		When
 the battery is under voltage, disconnect the load and connect the
charger. When the battery is over voltage, disconnect the charger and
connect the load.
	</li><li>
		This battery charging controller has the function of parameters adjustable, power failure memory function.
	</li><li>
		The control voltage is 10V-60V, and with high accuracy of 0.1V.
	</li><li>
		This battery charging controller is suitable for&nbsp;storage battery, lithium battery, etc.
	</li><li>
		This charging controller protects battery undervoltage, protects battery overcharge, protects load control.
	</li></ul>




	Specifications:


	Model: YX815
 Control voltage: 10V-60V
 Control current: 20A
 Control accuracy: 0.1V
 Voltage error: ±0.1V
 Scope: &nbsp;storage battery, lithium battery, etc
 Packing: antistatic bag


	Size: 7.9 x 4.3 x 2.8cm/3.11 x 1.69 x 1.10inch
 Installation size: 76 x 39.5mm/2.99 x 1.56inch


	Weight: 44g



Voltage setting method:
In setting state(digital tube flashes)
S1: up-regulated voltage
S2: down-regulated voltage
S1 undervoltage setting button (charging startup, load stop):
1.Under normal display voltage, press the S1 button to display the charging start(load stop )voltage value.
2.Long
 press the s1 button digital lamp tube flashing, and set charging
startup voltage（load stop） value through s1 and s2 buttons.
S2overvoltage setting button (charging stop, load start):
1.Under normal display voltage, press the S2 button to display the charging stop （load start up）voltage value.
2.Long press s2 button digital lamp tube flashing, through s1 and s2 buttons to set charging stop （load start up）voltage value.
Restore factory Settings:
Under
 the state of electri</div>
