<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Feature:
1. High Torsion: 3600KV brushless motor 60A ESC combo adopts 4 pole 12 slot high torsion motor design, fully waterproof and suitable for various environments.
2. CNC Machining: The 3600KV brushless motor uses CNC machined 6061 T6 billet aluminum heat sinks, high‑purity copper windings to maximize efficiency, and high speed ABEC5 oversized bearings.
3. Multiple Protections: Brushless motor ESC Set has multiple protection functions, low voltage cut off protection, overheat protection, throttle signal loss protection and motor stall protection.
4. Waterproof Dustproof: 60A waterproof brushless ESC is compatible with sensorless brushless motor, with XT60 plug, waterproof and dustproof, specially designed for RC model car.
5. Durable Materials: Brushless motor ESC combo is made of copper, plastic and alloy materials, proportional braking with 4 speed maximum braking force adjustment and 8 speed resistance braking force adjustment.
Specification:
Item Type: 3600KV Brushless Motor 60A ESC Combo
Material: Copper,Plastic,Aluminum Alloy
Color: Black Red
Motor Model: 3650
KV (RPM/Volt): 3600KV
Wattage: 900W
Maximum Speed: 50000
Maximum Voltage: &lt;13V
Maximum Ampere: 69A
IO: 2.0A
Resistance: 0.0081
Number of Rotor Poles: 4
Motor Diameter:Approx. 36mm / 1.4in
Motor Length:Approx. 50mm / 2.0in(without Shaft)
Motor Shaft Length:Approx. 15mm / 0.6in
Shaft Diameter:Approx. 3.175mm / 0.13in
Connector: 4.0mm Banana Plug
60A ESC:
Continuous Current: 60A
Maximum Current: 320A
Resistance: 0.0007ohm
Battery: 2-3s Cells Lipo
Motor Support: Sensorless Brushless
BEC Output: 5.8V / 3A (Switch Mode)
Product Size:Approx. 50 x 36 x 31mm / 2.0 x 1.4 x 1.2in(without Wire)
Applicable Model: Suitable for 1/10,1/12,1/16 RC Flat Sports Car,Racing Model
Scope of Application: Suitable for Hsp,for Redcat,for Axial Scx10,D90,for Hpi Lamp Installation.
Package List:
1 x 3600KV Brushless Motor1 x 60A Brushless ESC1 x User Manual
Note:
1. Due to manual measurement, please allow 1‑3mm error.2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.3. Please remove the cooling fan before using the ESC in water: please clean and dry it as soon as possible after use to prevent the connector from rusting.</li></ul>

Peso del Producto Ensamblado

Marca

Dimensiones del producto ensamblado

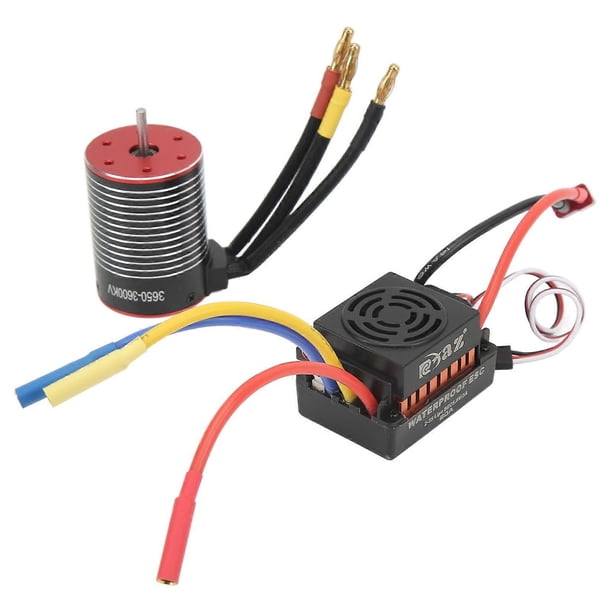

3600KV Brushless Motor 60A ESC Combo High Torsion Waterproof Dustproof Brushless Motor ESC Set for 1/10 for 1/12 for 1/16 RC

Feature:
1. High Torsion: 3600KV brushless motor 60A ESC combo adopts 4 pole 12 slot high torsion motor design, fully waterproof and suitable for various environments.
2. CNC Machining: The 3600KV brushless motor uses CNC machined 6061 T6 billet aluminum heat sinks, high‑purity copper windings to maximize efficiency, and high speed ABEC5 oversized bearings.
3. Multiple Protections: Brushless motor ESC Set has multiple protection functions, low voltage cut off protection, overheat protection, throttle signal loss protection and motor stall protection.
4. Waterproof Dustproof: 60A waterproof brushless ESC is compatible with sensorless brushless motor, with XT60 plug, waterproof and dustproof, specially designed for RC model car.
5. Durable Materials: Brushless motor ESC combo is made of copper, plastic and alloy materials, proportional braking with 4 speed maximum braking force adjustment and 8 speed resistance braking force adjustment.
Specification:
Item Type: 3600KV Brushless Motor 60A ESC Combo
Material: Copper,Plastic,Aluminum Alloy
Color: Black Red
Motor Model: 3650
KV (RPM/Volt): 3600KV
Wattage: 900W
Maximum Speed: 50000
Maximum Voltage: &lt;13V
Maximum Ampere: 69A
IO: 2.0A
Resistance: 0.0081
Number of Rotor Poles: 4
Motor Diameter:Approx. 36mm / 1.4in
Motor Length:Approx. 50mm / 2.0in(without Shaft)
Motor Shaft Length:Approx. 15mm / 0.6in
Shaft Diameter:Approx. 3.175mm / 0.13in
Connector: 4.0mm Banana Plug
60A ESC:
Continuous Current: 60A
Maximum Current: 320A
Resistance: 0.0007ohm
Battery: 2-3s Cells Lipo
Motor Support: Sensorless Brushless
BEC Output: 5.8V / 3A (Switch Mode)
Product Size:Approx. 50 x 36 x 31mm / 2.0 x 1.4 x 1.2in(without Wire)
Applicable Model: Suitable for 1/10,1/12,1/16 RC Flat Sports Car,Racing Model
Scope of Application: Suitable for Hsp,for Redcat,for Axial Scx10,D90,for Hpi Lamp Installation.
Package List:
1 x 3600KV Brushless Motor1 x 60A Brushless ESC1 x User Manual
Note:
1. Due to manual measurement, please allow 1‑3mm error.2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.3. Please remove the cooling fan before using the ESC in water: please clean and dry it as soon as possible after use to prevent the connector from rusting.
