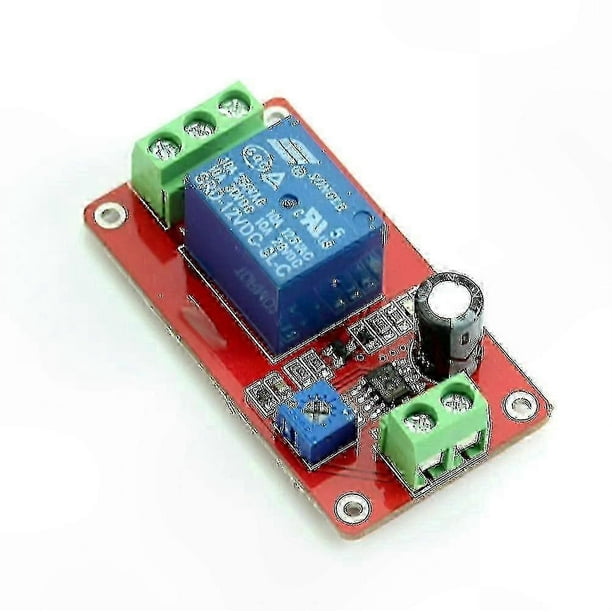

12V DC Programmable Delay Timer Relay Module with 1-20 Second Adjustable Timing Control Switch

The relay does not immediately close after power is connected; it closes only after the delay time has elapsed. The delay time is adjustable from 1 to 20 seconds. Once activated, the relay remains closed as long as power is supplied.
Normally open interface maximum load capacity: AC 0-250V/10A or DC 0-30V/10A
Equipped with a red power indicator light and a blue relay status indicator light
Features one relay channel and includes four mounting holes for easy installation
Main control chip: NE555
Operating voltage: DC 12V
Operating current: less than 100mA when relay is closed, less than 5mA when open
Dimensions: approximately 5.4 x 2.9 x 1.5 cm
Package includes: 1 piece
