<div>¡El producto es muy bueno, ¡ creo que te gustará!</div>

<ul><li>1、IP66 Waterproof and PC: The solar disconnect switch adopts IP66 waterproof box type design, while PC flame retardant material is applied, with sufficient internal space. It adopts the dual arc extinguishing of magnetic interrupter and interrupter grid to effectively suppress the arc. 2、3 Lockable Positions: The DC PV isolation switch knob operator comes with 3 lockable positions to prevent misoperation. The switch switching mechanism, with energy storage spring, quickly realizes switching, and the maximum on off switching time is less than 5ms. 3、Good Heat Dissipation: Our DC PV disconnect switch can work at full load from -40 - +85℃, safe, reliable, good heat dissipation and durable. 4、Wall Mounted: Solar isolation switch adopts wall mounted design, no need for shell installation, flexible installation, adaptable to different specifications of waterproof cable connectors or photovoltaic connectors. 5、Application Scenario: Solar isolation switch is widely used for solar power system RV, ship and grid connected solar system off grid household goods safety design. Used for home solar system, store solar system, etc.
Item Type: PV Disconnect Switch Material: PC Waterproof Rating: IP66 Flame Retardant Grade: UL94V 0 Standard: IEC EN 60947 1 And 3 Rated Voltage: 1000V Rated Current: 32A Uimp (Rated Impulse Withstand Voltage): 8KV Ui (Rated Insulation Voltage): 1500V Ambient Temperature: -40 - +85℃
1 x Solar&nbsp;PV&nbsp;Isolator&nbsp;Switch2 x Gasket4 x Screw</li></ul>

Marca

Peso del Producto Ensamblado

Dimensiones del producto ensamblado

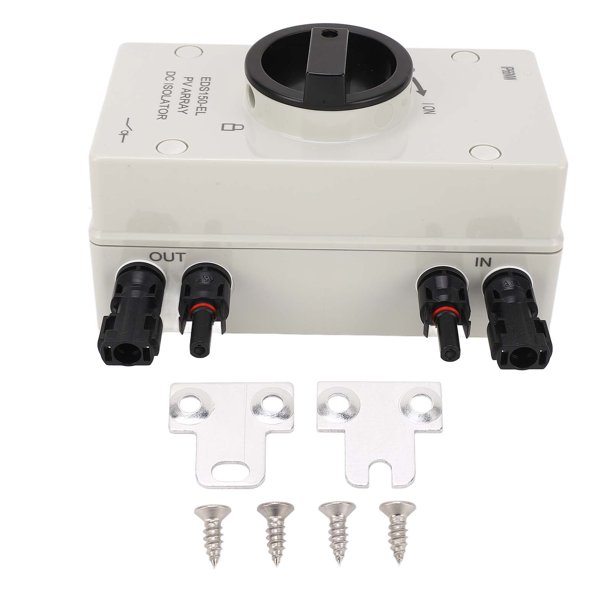

1000V 4P 32A Solar DC Photovoltaic Isolation Switch IP66 Waterproof Solar PV Disconnect Isolator Switch

1、IP66 Waterproof and PC: The solar disconnect switch adopts IP66 waterproof box type design, while PC flame retardant material is applied, with sufficient internal space. It adopts the dual arc extinguishing of magnetic interrupter and interrupter grid to effectively suppress the arc. 2、3 Lockable Positions: The DC PV isolation switch knob operator comes with 3 lockable positions to prevent misoperation. The switch switching mechanism, with energy storage spring, quickly realizes switching, and the maximum on off switching time is less than 5ms. 3、Good Heat Dissipation: Our DC PV disconnect switch can work at full load from -40 - +85℃, safe, reliable, good heat dissipation and durable. 4、Wall Mounted: Solar isolation switch adopts wall mounted design, no need for shell installation, flexible installation, adaptable to different specifications of waterproof cable connectors or photovoltaic connectors. 5、Application Scenario: Solar isolation switch is widely used for solar power system RV, ship and grid connected solar system off grid household goods safety design. Used for home solar system, store solar system, etc.
Item Type: PV Disconnect Switch Material: PC Waterproof Rating: IP66 Flame Retardant Grade: UL94V 0 Standard: IEC EN 60947 1 And 3 Rated Voltage: 1000V Rated Current: 32A Uimp (Rated Impulse Withstand Voltage): 8KV Ui (Rated Insulation Voltage): 1500V Ambient Temperature: -40 - +85℃
1 x Solar&nbsp;PV&nbsp;Isolator&nbsp;Switch2 x Gasket4 x Screw
