<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Features:

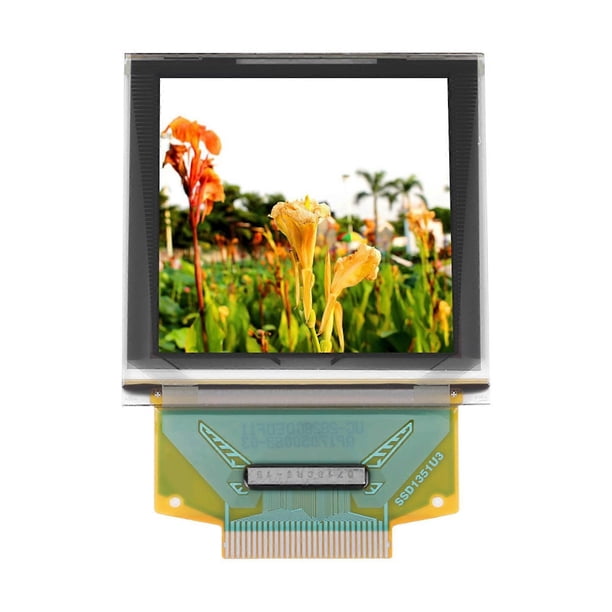

This is a 1.5 inches OLED display module of 128x128 resolution in which the emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current.

Working without backlight, the OLED display module could give out light by itself.

In low ambient light conditions such as a dark room, an OLED screen can achieve a higher contrast ratio than an LCD.

OLED display module also has a much faster response time than an LCD.



The display with small dimension is suitable for MP3, function cellphone, smart health device, etc.





Specifications:

Display Size: 1.5in

Resolution: 128*128

Driver IC: SSD1351

Interface Type: Serial Peripheral Interface/68XX-Series/80XX-Series interface

Pin Quantity: 30Pin

Display Color: Full color

Pixel Size: 0.045*0.194mm

Operating Temperature: -30~70

Working Voltage: 3.5V

Pin Symbol 16 R/W#

1 N.C. (GND) 17 BS0

2 VCC 18 BS1

3 VCOMH 19 CS#

4 VDDIO 20

5 VSL 21 RES#

6 N.C. 22 IREF

7 D7 23 GPIO1

8 D6 24 GPIO0

9 D5 25 N.C.

10 D4 26 VDD

11 D3 27 VCI

12 D2 28 VSS

13 D1 29 N.C.

14 D0 30 N.C. (GND)

15 E/RD#







Package Includes:

1 x OLED Display Module





Note: This kit requires certain professional knowledge and ability, please make sure you know how to wire and use it.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

1.5inch OLED Color Display Graphic Module 128*128 SSD1351 Serial Peripheral Interface

Features:

This is a 1.5 inches OLED display module of 128x128 resolution in which the emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current.

Working without backlight, the OLED display module could give out light by itself.

In low ambient light conditions such as a dark room, an OLED screen can achieve a higher contrast ratio than an LCD.

OLED display module also has a much faster response time than an LCD.



The display with small dimension is suitable for MP3, function cellphone, smart health device, etc.





Specifications:

Display Size: 1.5in

Resolution: 128*128

Driver IC: SSD1351

Interface Type: Serial Peripheral Interface/68XX-Series/80XX-Series interface

Pin Quantity: 30Pin

Display Color: Full color

Pixel Size: 0.045*0.194mm

Operating Temperature: -30~70

Working Voltage: 3.5V

Pin Symbol 16 R/W#

1 N.C. (GND) 17 BS0

2 VCC 18 BS1

3 VCOMH 19 CS#

4 VDDIO 20

5 VSL 21 RES#

6 N.C. 22 IREF

7 D7 23 GPIO1

8 D6 24 GPIO0

9 D5 25 N.C.

10 D4 26 VDD

11 D3 27 VCI

12 D2 28 VSS

13 D1 29 N.C.

14 D0 30 N.C. (GND)

15 E/RD#







Package Includes:

1 x OLED Display Module





Note: This kit requires certain professional knowledge and ability, please make sure you know how to wire and use it.
