<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>This LC v2F module can generate different frequency according to different input voltage, and it can transform 0-10V voltage into 0-10KHz frequency pulse signal.
Operating Voltage: 13.5V-30V
Input Controllable Voltage Range: 0-10V
Output Frequency Range: 0-10KHz
Specification:
Interface definition
VCC: operating power
GND: power ground
IN+: input voltage
IN-: input ground
OCOUT: signal collector output port (if you use it with driver, it can be used)
FOUT: frequency output port (universal frequency output port)
Two independent outputs, OC-OUT is NPN, and FREQ-OUT is IC output. The common cathode end is with the negative GND of the power supply. When common anode connects, it is used with power positive. If the connection is common anode and power supply is 13-24V, please serial connect a 2.7K ohm resistor; if the power supply is 12V, please serial connect a 330 ohm resistor.
Connect the frequency pulse signal to F, and there is a corresponding voltage output at the terminal. Correspondence between input and output: 1V=1KHZ 10V=10KHZ. If there is a deviation, you can adjust the potentiometer on the board to calibrate.
Package Includes:
1 Piece Voltage to Frequency Conversion Module</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

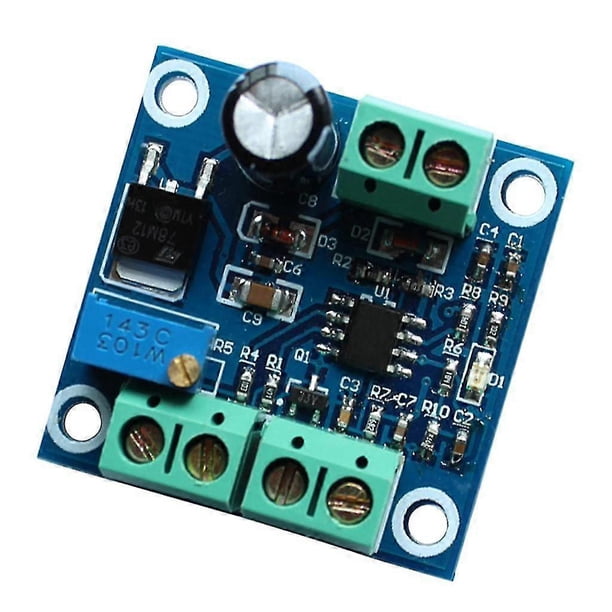

Voltage To Frequency Converter Conversion Module 0-10v To 0-10khz

This LC v2F module can generate different frequency according to different input voltage, and it can transform 0-10V voltage into 0-10KHz frequency pulse signal.
Operating Voltage: 13.5V-30V
Input Controllable Voltage Range: 0-10V
Output Frequency Range: 0-10KHz
Specification:
Interface definition
VCC: operating power
GND: power ground
IN+: input voltage
IN-: input ground
OCOUT: signal collector output port (if you use it with driver, it can be used)
FOUT: frequency output port (universal frequency output port)
Two independent outputs, OC-OUT is NPN, and FREQ-OUT is IC output. The common cathode end is with the negative GND of the power supply. When common anode connects, it is used with power positive. If the connection is common anode and power supply is 13-24V, please serial connect a 2.7K ohm resistor; if the power supply is 12V, please serial connect a 330 ohm resistor.
Connect the frequency pulse signal to F, and there is a corresponding voltage output at the terminal. Correspondence between input and output: 1V=1KHZ 10V=10KHZ. If there is a deviation, you can adjust the potentiometer on the board to calibrate.
Package Includes:
1 Piece Voltage to Frequency Conversion Module
