<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Feature:
1. Excellent Performance: With 0.1℃ measurement accuracy, and 8 times measurement per second, this controller is able to provide with you valid data at anytime.
2. Power Function: This controller supports multiple thermocouple and resistance sensor output and alarm modes.
3. Dual Display: This controller possesses 2 display that the measured temperature and set temperature can be displayed at the same time.
4. Programmable: This temperature controller has 32 programmable steps for ramping, soaking and other logic operations.
5. Wide Application: This controller can be flexibly used in various industrial automation control scenarios. Such as printing, chemical industry, plastics, building materials, home furnishing, packaging, textile, food, metallurgy, etc.
Specification:
Item Type: Temperature Controller
Material: ABS
Power Supply Voltage: DC 24V
Input Signal: The four input signals are compatible, and the adjustment menu parameters can be switched at will.
1. Measuring Range of K Type Thermocouple: - 60 ℃ to 840 ℃ (Plus Cold End Compensation Temperature)
2. PT100 Measuring Range: - 50 to 450 ℃
3. 0 to 10V Analog Input
4. 4 to 20ma Horizontal Analog Input
Installation Dimension: Approx. 44 x 44 x 100mm / 1.73 x 1.73 x 3.94in
Output Signal: Relay Output
PID: Supported
Communication: RS485
Baud Rate: 1.2K 2.4K 4.8K 9.6K 19.2K 38.4K
Alarm Mode:
1. Upper and lower limit alarm
2. Positive deviation and negative deviation alarm
3. Alarm in the section 4. Alarm outside the section
5. No alarm
Accuracy:
Thermocouple: The greater of ± 1.5 ℃ or (± 0.2% FS)
Platinum Resistance: The greater of ± 1 ℃ or (± 0.2% FS)
Temperature Display: 0.1 ℃
Sampling Speed: 8 Times/Second
Program Mode: Support
Number of Program Segments: 32 Segments
Application Scope: Printing, chemical industry, plastics, building materials, home furnishing, packaging, textile, food, metallurgy, etc..
Package List:
1 x
Temperature Controller</li></ul>

Marca

Peso del Producto Ensamblado

Nombre del Fabricante

Dimensiones del producto ensamblado

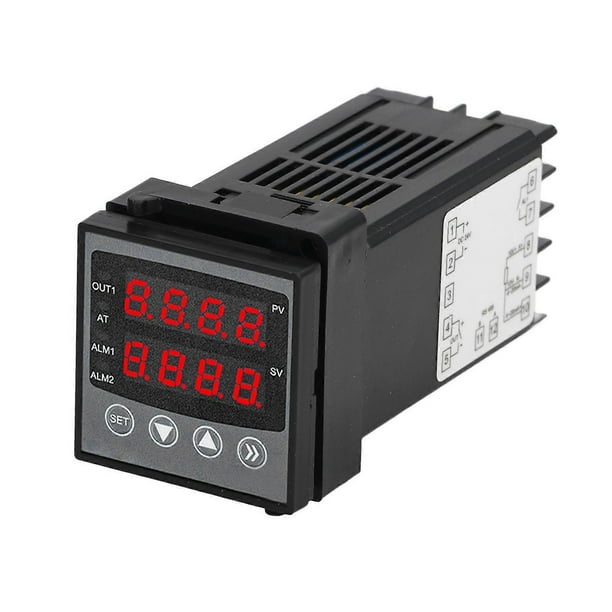

Temperature Controller PID Dual Digital Display Alarm Function Thermostat Temperature Control Device DC 24V

Feature:
1. Excellent Performance: With 0.1℃ measurement accuracy, and 8 times measurement per second, this controller is able to provide with you valid data at anytime.
2. Power Function: This controller supports multiple thermocouple and resistance sensor output and alarm modes.
3. Dual Display: This controller possesses 2 display that the measured temperature and set temperature can be displayed at the same time.
4. Programmable: This temperature controller has 32 programmable steps for ramping, soaking and other logic operations.
5. Wide Application: This controller can be flexibly used in various industrial automation control scenarios. Such as printing, chemical industry, plastics, building materials, home furnishing, packaging, textile, food, metallurgy, etc.
Specification:
Item Type: Temperature Controller
Material: ABS
Power Supply Voltage: DC 24V
Input Signal: The four input signals are compatible, and the adjustment menu parameters can be switched at will.
1. Measuring Range of K Type Thermocouple: - 60 ℃ to 840 ℃ (Plus Cold End Compensation Temperature)
2. PT100 Measuring Range: - 50 to 450 ℃
3. 0 to 10V Analog Input
4. 4 to 20ma Horizontal Analog Input
Installation Dimension: Approx. 44 x 44 x 100mm / 1.73 x 1.73 x 3.94in
Output Signal: Relay Output
PID: Supported
Communication: RS485
Baud Rate: 1.2K 2.4K 4.8K 9.6K 19.2K 38.4K
Alarm Mode:
1. Upper and lower limit alarm
2. Positive deviation and negative deviation alarm
3. Alarm in the section 4. Alarm outside the section
5. No alarm
Accuracy:
Thermocouple: The greater of ± 1.5 ℃ or (± 0.2% FS)
Platinum Resistance: The greater of ± 1 ℃ or (± 0.2% FS)
Temperature Display: 0.1 ℃
Sampling Speed: 8 Times/Second
Program Mode: Support
Number of Program Segments: 32 Segments
Application Scope: Printing, chemical industry, plastics, building materials, home furnishing, packaging, textile, food, metallurgy, etc..
Package List:
1 x
Temperature Controller
