<ul><li>1. The power supply voltage can reach 48VDC
2. The output current can reach 4.2A
3. Optical isolation, the input can share cathode, anode, differential signal, the upper limit of impulse response frequency is 200KHz
4. Low speed, zero vibration, and minimal noise
5. Strong anti-interference ability, can achieve high-precision positioning in the harsh environment of the power grid

Electrical characteristics:
Input power: 24~80V DC power supply, capacity: not less than 200VA. Typical value: Dc36V
Output current: 2.4A~7.2A, 8 levels adjustable, resolution 0.5A
Drive mode: dual-machine constant current PWM drive output.
Insulation resistance: more than the 500M Q under normal temperature and pressure
Insulation strength: 500V/min at normal temperature and pressure.
Environmental requirements:
Cooling : natural cooling.
Use occasions: Avoid dust, oil mist and gas.
Operating temperature: 0 Celsius~+50 Celsius
Environmental humidity: Less than 80%RH, no condensation, no frost
Vibration: the maximum does not exceed 5.7m/s
Product parameter
Product name: DM542 stepper driver
Colour:black
Material:PCB+ABS
Size:12 x 7.8 x 3.5cm

Package Contents:
1 * DM542 Phase Stepper Driver

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.</li></ul>

Marca

Peso del Producto Ensamblado

FabricanteNombre del Fabricante

Dimensiones del producto ensamblado

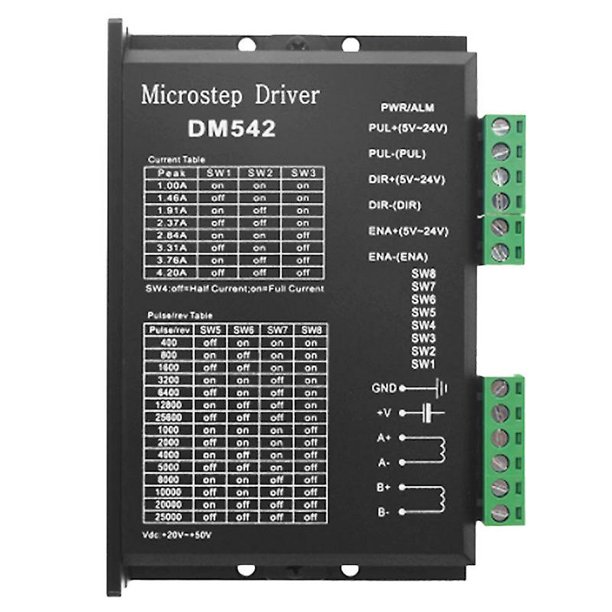

Stepper Motor Driver, DM542 Stepper Motor Driver Dsp Digital Driver Board for Nema 17, Nema 23 ,Etc

1. The power supply voltage can reach 48VDC
2. The output current can reach 4.2A
3. Optical isolation, the input can share cathode, anode, differential signal, the upper limit of impulse response frequency is 200KHz
4. Low speed, zero vibration, and minimal noise
5. Strong anti-interference ability, can achieve high-precision positioning in the harsh environment of the power grid

Electrical characteristics:
Input power: 24~80V DC power supply, capacity: not less than 200VA. Typical value: Dc36V
Output current: 2.4A~7.2A, 8 levels adjustable, resolution 0.5A
Drive mode: dual-machine constant current PWM drive output.
Insulation resistance: more than the 500M Q under normal temperature and pressure
Insulation strength: 500V/min at normal temperature and pressure.
Environmental requirements:
Cooling : natural cooling.
Use occasions: Avoid dust, oil mist and gas.
Operating temperature: 0 Celsius~+50 Celsius
Environmental humidity: Less than 80%RH, no condensation, no frost
Vibration: the maximum does not exceed 5.7m/s
Product parameter
Product name: DM542 stepper driver
Colour:black
Material:PCB+ABS
Size:12 x 7.8 x 3.5cm

Package Contents:
1 * DM542 Phase Stepper Driver

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
