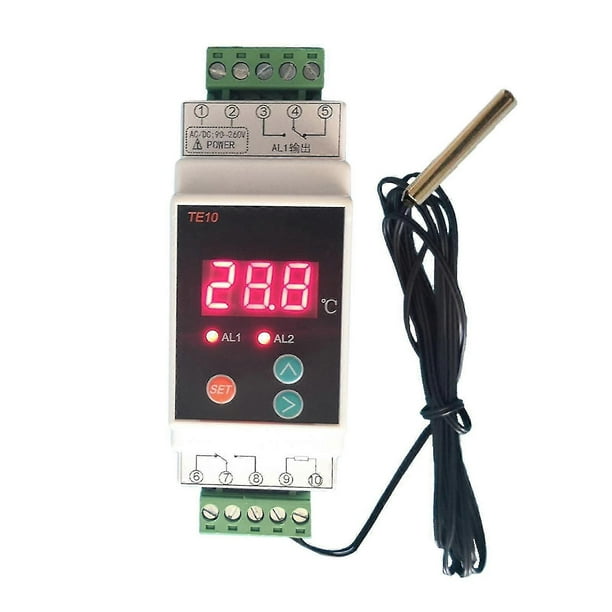

<ul><li>-40~110 Din Thermostat with sensor High/Low Temperature 2 Alarm Relay NO NC COMMON Output 7A/250VAC AC90~260V
Features:
-Strong anti-interference ability, stable performance, simple circuit and high precision; the outer for shell adopts a guide rail casing, which is easy to install and beautiful in appearance.
-And has the function of adjustment and digital filtering,
-Standard 2 relay output function, contact capacity 7A/250VAC.
Specifications:
Power supply: working voltage AC90~260V; power consumption is less than 2W (other power supplies can be customized)
Measuring accuracy: 0.5%FS1 Measuring range -40~110
Display character height: 0.36 inches high brightness red LED (other colors can be customized)
Use environment: -10~60 (relative humidity below 80%)
Dimensions: 110*36 *60 (mm)
Sensor Length: 1.5m
Package included:
1* Din Rail Thermostat
1* Sensor
-------
Code Table:
TY1: Relay 1 output alarm type
0: Upper limit alarm, temperature AL1, the relay is closed, (AL1-HY1), the relay is off.
1: Lower limit alarm, temperature AL1, the relay is closed, (AL1+HY1), the relay is off.
2: Upper and lower limit alarm. Temperature AL1, the relay is closed, HY1, the relay is closed.
AL1: Relay 1 action value
-40.0~130.0
HY1: Relay 1 return difference
-40.0~130.0
TY2: Relay 2 output alarm type
0: Upper limit alarm, temperature AL2, the relay is closed, (AL2-HY2), the relay is off.
1: Lower limit alarm, temperature AL2, the relay is closed, (AL2+HY2), the relay is off.
2: Upper and lower limit alarm. Temperature AL2, the relay is closed, HY2, the relay is closed.
AL2: Relay 2 action value
-40.0~130.0
HY2: Relay 2 return difference
-40.0~130.0
SEC: Relay action delay value
0-999 seconds
When the relay AL1 or AL2 reaches the operating conditions, it will delay the action for SEC seconds. When it is 0, there is no delay.
LC: Temperature deviation correction value
-20.0~20.0 (display value = measurement value + LC)</li></ul>
