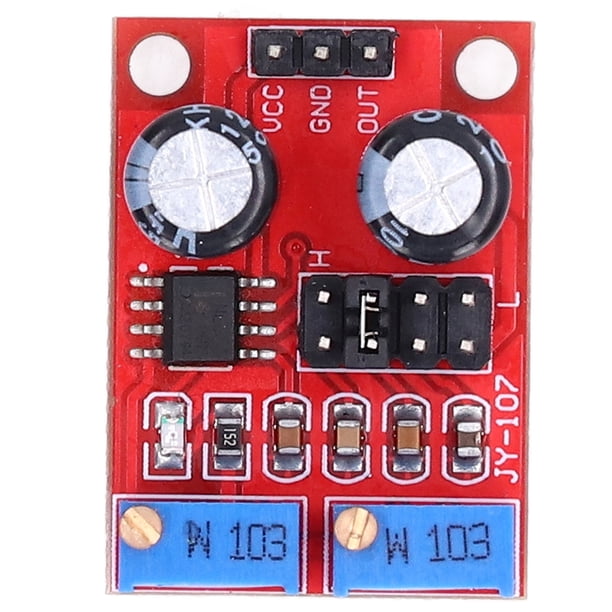

<div>Producto de importación$$Specification:Item Type: Pulse Duty Cycle Adjustable Module$$Main Chip: NE555$$Input Voltage: 5V-15VDC When powered by 5V, the output current can be around 15MA, when powered by 12V, the output current can be around 35MA$$Input Current:  Greater than or equal to 100MA$$Output Amplitude: 4.2V V PP to 11.4V V PP Depending on the input voltage, the output amplitude will be different$$Maximum Output Current:  Greater than or equal to 15MA 5V power supply, when V-PP is greater than 50%,  Greater than or equal to 35MA 12V power supply, when V-PP is greater than 50%$$Output with LED indicator$$Output Frequency Adjustable: T=0.7RA+2RB x C, RA and RB can be adjusted 0-10k$$Low Frequency: C=0.001UF$$Intermediate Frequency: C=0.01UF$$High Frequency: C=1UF$$Higher Frequency: C=100UF$$The output frequency range is optional, making the output frequency more continuously adjustable$$Low Frequency File: 1Hz~50Hz$$Medium Frequency File: 50Hz~1kHz$$Medium And High Frequency File: 1KHz~10kHz$$High Frequency File: 10kHz~200kHz$$Material: Electronic Components$$Package List:5 x Pulse Duty Cycle Adjustable Module<br>$$Producto de importación No hay factura disponible;</div>

<ul><li><ul><li>Indicator Light: The output has LED indication, and clear whether there is output the amount of LED when the level is low, the LED is off when the level is high, and the LED flashes when the frequency is relatively low</li><li>Ideal Wave: There are 4 jumpers and 2 variable resistors on the module, users can adjust the output wave with these components to easily achieve the ideal wave</li></ul></li></ul>
