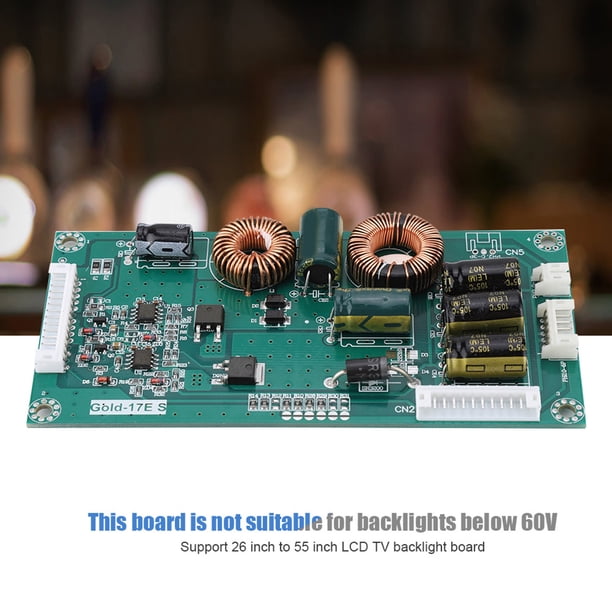

<div>Placa de controlador, placa de controlador LED, placa de controlador de retroiluminación, placa de controlador LED de 26-55 pulgadas, placa de controlador LED DIY</div>

<ul><li>"Producto de importación</li><li>Specification:Features:</li><li> 1. Universal LED LCD TV backlight constant current board.</li><li> 2. Voltage adaptive adjustment.</li><li> 3. Support 26 inch to 55 inch LCD TV backlight board.</li><li> 4. 200mA default output current. The 10MA-1000MA current can be adjusted as needed.</li><li> 5. Suitable for professional level player DIY customization.</li><li> 6. This board is not suitable for backlights below 60V.</li><li> </li><li> Specification:</li><li> Color: green</li><li> Uses: for 26-55 inch LED TVs and monitors</li><li> Input voltage range: 10-26V</li><li> Output voltage range: 65-165V</li><li> Output current: 10-1000MA adjustable</li><li> Size: Approx. 9 x 5.8 x 1 cm / 3.5 x 2.3 x 0.4in</li><li> Weight: approx. 50g</li><li> </li><li> Package list:</li><li> 1 x Driver Board</li><li> </li><li> Precautions:</li><li> The operating voltage of the light bar must be any voltage between 65V and 210. Can't be lower than 65V, if it is lower than 65V, you can choose to buy other products in our store. Can not be higher than 210V, the design limit working voltage condition of this product shall not be higher than 210V. If this voltage is exceeded, the screen may be dark or the lamp may flicker. This product only has constant current, no constant voltage, and the voltage will be automatically adjusted to the corresponding voltage according to the required voltage of the light bar, so you do not need to entangle the voltage measured at no load.</li><li> In view of the fact that many buyers are bought and modified, and the parameters of the machine that needs to be modified are unknown, it is hereby declared that the quality and performance of the products sold in this shop are absolutely no problem, but it is absolutely impossible to guarantee that the goods purchased will be certain. The fact that it can be successfully lit. There are many reasons why it can't match, voltage, power, connections, structures, etc. can cause mismatches.</li><li> General parameters: 65V-210V 200MA 24VIN</li><li> </li><li> Correctly illuminate problems that may be encountered:</li><li> 1. The brightness is not enough, the screen is obviously darker than the original board. At this time, we start from two aspects. First, after connecting the dimming foot, try to adjust the brightness with the remote control. If it can't be solved, test the actual. The voltage of the pin, Note: my product has the highest brightness at 0V, and the brightness is the darkest when the voltage is high. If the voltage range of the analog voltage mode is between 0V-5V or 0V-3.3V, if the voltage is always high The voltage cannot be reduced and should be adjusted. If it is a PWM signal, the voltage is stable at 3.3V. At this time, if the light is adjusted to the brightest or the requirement is not met, the second scheme must be implemented. Second, adjust the resistance on the board to increase the current to meet the requirements.</li><li> </li><li> In view of the fact that many buyers do not understand the topology of the LED driver board, the lack of understanding of its working principle directly leads to the consequences of not being able to use it correctly! Hereby, our company briefly introduces the current popular topology solutions. There are three main types of topologies: boost, buck, boost-buck.</li><li> 1. The boost topology means a boost type. Interpretation: The constant current plate using such a scheme requires the load voltage Vout to be higher than the power input<br>Producto de importación No hay factura disponible;"</li></ul>

Características Adicionales

Memoria Interna

Condición

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

Placa de controlador de retroiluminación placa de controlador 17S S Ajuste adaptativo para TV LCD de 26-55 pulgadas

"Producto de importación$$Specification:Features:$$ 1. Universal LED LCD TV backlight constant current board.$$ 2. Voltage adaptive adjustment.$$ 3. Support 26 inch to 55 inch LCD TV backlight board.$$ 4. 200mA default output current. The 10MA-1000MA current can be adjusted as needed.$$ 5. Suitable for professional level player DIY customization.$$ 6. This board is not suitable for backlights below 60V.$$ $$ Specification:$$ Color: green$$ Uses: for 26-55 inch LED TVs and monitors$$ Input voltage range: 10-26V$$ Output voltage range: 65-165V$$ Output current: 10-1000MA adjustable$$ Size: Approx. 9 x 5.8 x 1 cm / 3.5 x 2.3 x 0.4in$$ Weight: approx. 50g$$ $$ Package list:$$ 1 x Driver Board$$ $$ Precautions:$$ The operating voltage of the light bar must be any voltage between 65V and 210. Can't be lower than 65V, if it is lower than 65V, you can choose to buy other products in our store. Can not be higher than 210V, the design limit working voltage condition of this product shall not be higher than 210V. If this voltage is exceeded, the screen may be dark or the lamp may flicker. This product only has constant current, no constant voltage, and the voltage will be automatically adjusted to the corresponding voltage according to the required voltage of the light bar, so you do not need to entangle the voltage measured at no load.$$ In view of the fact that many buyers are bought and modified, and the parameters of the machine that needs to be modified are unknown, it is hereby declared that the quality and performance of the products sold in this shop are absolutely no problem, but it is absolutely impossible to guarantee that the goods purchased will be certain. The fact that it can be successfully lit. There are many reasons why it can't match, voltage, power, connections, structures, etc. can cause mismatches.$$ General parameters: 65V-210V 200MA 24VIN$$ $$ Correctly illuminate problems that may be encountered:$$ 1. The brightness is not enough, the screen is obviously darker than the original board. At this time, we start from two aspects. First, after connecting the dimming foot, try to adjust the brightness with the remote control. If it can't be solved, test the actual. The voltage of the pin, Note: my product has the highest brightness at 0V, and the brightness is the darkest when the voltage is high. If the voltage range of the analog voltage mode is between 0V-5V or 0V-3.3V, if the voltage is always high The voltage cannot be reduced and should be adjusted. If it is a PWM signal, the voltage is stable at 3.3V. At this time, if the light is adjusted to the brightest or the requirement is not met, the second scheme must be implemented. Second, adjust the resistance on the board to increase the current to meet the requirements.$$ $$ In view of the fact that many buyers do not understand the topology of the LED driver board, the lack of understanding of its working principle directly leads to the consequences of not being able to use it correctly! Hereby, our company briefly introduces the current popular topology solutions. There are three main types of topologies: boost, buck, boost-buck.$$ 1. The boost topology means a boost type. Interpretation: The constant current plate using such a scheme requires the load voltage Vout to be higher than the power input<br>Producto de importación No hay factura disponible;"
