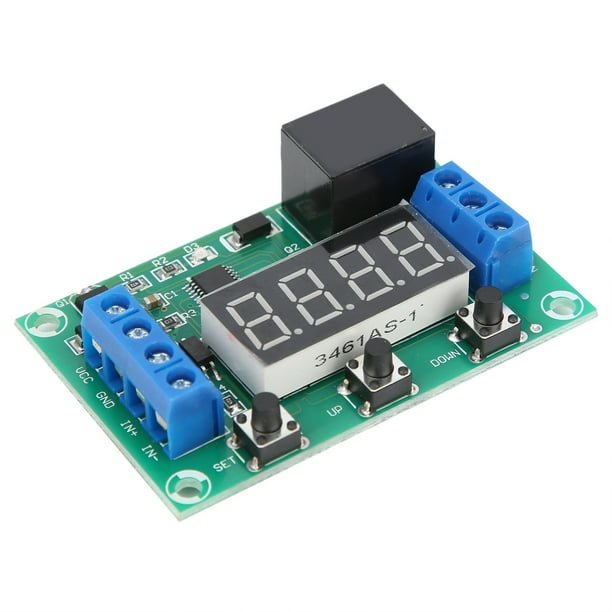

Name: Módulo de retardo del temporizador tablero de control de relé de tiempo programable módulo de interruptor ajustable 31 para suministros industriales de relé de retardo de ANGGREK Otros
Brand: Anggrek
SKU: 00691817692528
Availability: OutOfStock

Walmart US Ecommerce Website

GENERAL MERCHANDISE

PHARMACY

GROCERIES

VUDU

SPARK


ADVERTISING

SAVINGS CATCHER

GIFTCARDS

INHOME

AFFILIATE

ONEAPP

LOTUS

HELP

SMART_REORDER

GROCERY

CONV_COMMERCE

GlobalAlertBar baja la app - 080726

title_shipToHome_not_available

Silla Alta 4 en 1 D'Bebe Grow With Me Verde

Pantalla inteligente Alexa 8 3era Gen

title_shipToHome_date_delivery

Pañales premium Rascals Etapa 4 Unisex  136 piezas

Paquete 3X2 Nautica Voyage 100 ML Edt Spray Nautica

Goggle De Natación Voit Paw Patrol Rubble Kids

Desbrozadora Eléctrica AKSI Maxtool 300 W 390801

Collar Cristal Swarovski Angelic + Kit De Regalo

Pañales premium Rascals Etapa 5 Unisex  128 piezas

SET Halloween 4pzs dama

Desbrozadora Desmalezadora Kingsman Gasolina 52cc 2.5hp Ergonomica

COLLAR SWAROVSKI TENIS CORAZONES BLANCOS ARIANA GRANDE + KIT DE REGALO

Mesa Didáctica KIDDOS con Juego de Bloques y Silla

Dragon Pharma Venom Inferno Tu Marido Moises 40 Servicios Brazo De Limon

Pañales premium Rascals Etapa 3 Unisex  144 piezas

Arena para gatos Catit Go Natural con cáscara de guisante 5.58 kg

Desbrozadora a gasolina HUSKY HUS-HKD6300 63cc 3hp

Paraguas Invertido Automático con Filtro UV Idea Nuova Bicolor

Motosierra Gasolina 20puLG 52cc 2.5hp + Accesorios Husky

Pañales premium Rascals Etapa 6 Unisex  120 piezas

Juego de edredón Andency King Size Beige, 3 piezas, ligero

Perfume Guess Woman 4 pzs Dama

COLLAR CRISTALES SWAROVSKI GEMA MULTI COLOR + KIT DE REGALO

Soporte de reparación de motor V8 Zulema de acero inoxidable negro

Pañales premium Rascals Etapa 7 Unisex  104 piezas

Complementos para tu compra

A Customer Also Viewed- P13n July 21, 2023

MTZ Team | Brand Box - Item Page

MTZ Team | Marquee 1  Item Page

MTZ Team | Marquee 2  Item Page

MTZ Team | Skyline Item Page

Productos Recomendados

MTZ Team | Sponsored Carousels - Product Page

New Item Page - Reviews Placeholder Module, Wednesday, August 23, 2023, 12:41:20:28 pm

Product Description Placeholder Module, Monday, February 13, 2023, 11:53:20:01 am

Product Specifications Placeholder Module, Monday, February 13, 2023, 11:55:48:74 am

Product Warranty Placeholder Module, Monday, February 13, 2023, 11:57:01:93 am

Refurbished Info Placeholder Module, Monday, February 13, 2023, 11:56:19:46 am

SellersSecondaryBuyBox Module, Monday, February 13, 2023, 11:52:40:61 am

<div>Producto de importación$$Specification:Condition:  $$Item Type: Time Relay Control Module$$Material: Plastic$$Color: As picture shown$$Model: JY-SJ13$$Optional Supply Voltage: DC5V, DC12V, DC24V$$Maximum Relay Control Current: 20A$$Instructions for  Use:$$Setting of Working Parameters:$$Press and hold the SET button without letting go. After 0.5 seconds, the display shows P-XX, press UP and DOWN to change the working mode. After selecting the working mode, short press the SET key to enter the A time setting, the screen displays Axxx, press the UP and DOWN keys to modify the A time parameter, press the ↑ and ↓ keys shortly to add or subtract 1, long press to quickly add or subtract 10, press The S key can set the position of the decimal point. After setting the A time, press the SET button to set the B time, and the screen displays bxxx. At this time, press the UP and DOWN buttons to modify the B time parameter, press the UP and DOWN buttons to shortly press to add or subtract 1, and long press to quickly add or subtract 10. Press the S4 key to set the position of the decimal point. After setting the B time, press the SET key again to enter CXXX, press the SET key again to enter dXXX, and press the SET key again to exit the setting state and save all parameters.$$The above settings such as B time or other time have no effect, no need to set, press SET to skip.$$P2 is the stop and start function triggered as described below. The individual functions are invalid.$$The meaning of the decimal point position:$$Ax.xx The decimal point is in the hundred, and the time range is 0.01~9.99 seconds$$Axx.x The decimal point is in the tenth place, and the time range is 0.1~99.9 seconds$$Axxx. The decimal point is in the ones place, and the time range is 1~999 seconds$$Axxx has no decimal point, the time range is 1~999 minutes$$Turn off the display: In the non-setting state, press the S key to turn off the display, and then press it again to turn it on again.$$Operating Mode:$$P-00: Invalid skip$$P-01: The relay is disconnected after power-on or triggered, and the relay is closed after a delay of time A$$P-02: Pull-in after power-on or trigger, the relay is disconnected after delay A time$$P-03: Jog mode, pull-in with signal, disconnect without signal$$P-04: Self-locking mode, the relay state flip once after each trigger$$P-05: After triggering, the relay pulls in and stops after a delay of time A. Repeated triggering is not allowed during the delay period$$P-06: After triggering, the relay is closed, and it will stop after a delay of A time. Repeated triggering during the delay period will re-timing$$P-07: After triggering, the relay is closed, and it stops after a delay of A second. Repeated triggering during the delay period, the time will accumulate$$P-08: After triggering, the relay is closed, and it will stop after a delay of A second, and it can stop immediately after triggering again during the delay.$$P-09: After triggering, the relay is closed. After the signal disappears, the delay will stop for A second, and the trigger will restart during the delay.$$P-10: After power-on, pull-in time A, disconnect time B, infinite $$P-11: When there is a continuous signal, pull in A time, disconnect B time, infinite , stop immediately after the signal disappears$$P-12: Trigger<br>Producto de importación No hay factura disponible;</div>

<ul><li><ul><li>Múltiples funciones, un total de 31 modos de trabajo. La corriente de control máxima del relé es 20 A</li><li>Múltiples voltajes de suministro son opcionales: DC5V, DC 12V, DC24V, que pueden satisfacer sus diferentes necesidades</li><li>El terminal de salida está aislado del circuito mediante un relé, que puede controlar aparatos eléctricos de bajo voltaje, corriente continua, etc., y también puede controlar líneas de 220V.§§</li></ul></li></ul>

País de Origen

Ancho del Producto Ensamblado

Altura del Producto Ensamblado

Contenido del Empaque

Color

Modelo / Estilo / Tipo

Material

Longitud del Producto Ensamblado

Peso del Producto Ensamblado

Módulo de retardo del temporizador tablero de control de relé de tiempo programable módulo de interruptor ajustable 31 para suministros industriales de relé de retardo de ANGGREK Otros

<ul><li>Múltiples funciones, un total de 31 modos de trabajo. La corriente de control máxima del relé es 20 A</li><li>Múltiples voltajes de suministro son opcionales: DC5V, DC 12V, DC24V, que pueden satisfacer sus diferentes necesidades</li><li>El terminal de salida está aislado del circuito mediante un relé, que puede controlar aparatos eléctricos de bajo voltaje, corriente continua, etc., y también puede controlar líneas de 220V.§§</li></ul>
