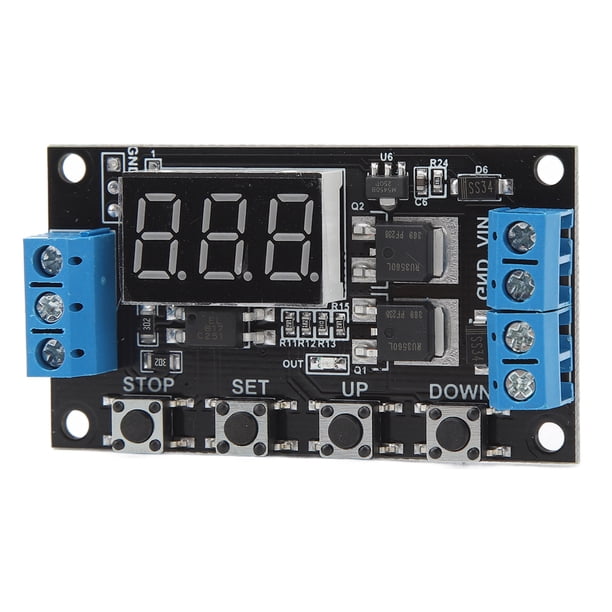

<div>Producto de importación$$Specification:Item Type: Time Delay Relay Module$$Material: PCB$$Weight: Approx. 19g/0.7oz$$Voltage Range: 5V to 30V$$Trigger Signal Source: high  trigger DC 3.0V to 24V signal ground and system ground not common to improve the anti interference ability of the system can also be self short circuited common ground$$Output Capacity: DC DC 5V to 30V, room temperature continuous current 15A, power 400W. Under the condition of auxiliary heat dissipation, the maximum current can  30A.$$Static Current: 20mA $$Working Current: 50mA$$Service Life: unlimited switch$$Operating Temperature: minus40 to 85 degrees Celsius $$Function: With optocoupler isolation, enhance anti interference ability, industrial grade circuit board, even after setting parameters can be remembered forever$$$$Timing range$$0.1 seconds minimum to 999 minutes maximum adjustable continuously$$How to select the timing range:$$After setting the parameter values in the mode selection interface, press STOP to select the timing range:$$XXX. Decimal point in the one place, timing range: 1 second to 999 seconds$$XX.X decimal point in ten, timing range: 0.1 seconds to 99.9 seconds$$X.X.X. The decimal point is on. The timing ranges from 1 minute to 999 minutes$$For example, if you want to set OP to 32 seconds, move the decimal point to the tens place. The nixie tube displays 03.2 Parameter description :OP on time, CL off time, number of  LOP 1 to 999, "--" stands for infinite $$These parameters are independent of each other, but all modes share these parameters. For example, if P1 sets the on off time OP to 5 seconds, and the user wants to switch to P2 mode, then when P2 sets the corresponding parameter, OP will also be 5 second$$Press the SET key on the main interface display 000, and OPCL, LOP and corresponding time XXX will be displayed$$If there is only OPfor example, P1 time in the mode, then pressing SET will only show OP and the corresponding time$$If there is OP, CL, LOPfor example, P2, P3, then pressing SET will display OP and the corresponding time, CL and the corresponding time, LOP and the corresponding number of times;$$After setting the mode, you can easily view the parameters SET in the current mode by pressing the Set key on the main interface, which is very convenient!$$$$How to set parameters$$1. Determine the working mode of the module$$2. Based on the working mode of the module, the current worker blinks on the main screen when the module is powered on "Long press the SET key for 2 seconds and release" to enter the mode selection interface. Press the UP and DOWN keys to select the mode to be set P0 to P 15$$3. Select a mode to be SET for example, P3 and press Set to set related parameters$$The set parameters will blink OP on time, CL off time, LOP cycle times "--" represents infinite cycles, adjust parameter values through UP and DOWN, support long press  increase or decrease and short press increase or decrease 1 unit. After setting the parameter value, press the STOP button to select the decimal point position and select the timing range 0.1 second to 999 minutes. Press the SET key to set the  parameter of the current mode. The process is the same as above$$4. Select the mode to be SET for example, P15 and press the Set key to set the corresponding mode parameter,<br>Producto de importación No hay factura disponible;</div>

<ul><li><ul><li>Gran rendimiento: este módulo de relé de retardo se puede ajustar continuamente desde 0,1 segundos como mínimo hasta 999 minutos como máximo, realizando el circuito de alta frecuencia, encendido y apagado rápido y frecuente, tiempos de conmutación infinitos</li><li>DC 5V a 30V: este módulo de control de ciclo de relé de retardo de tiempo Utiliza un voltaje amplio de 5 a 30 V, se puede utilizar en la mayoría de los equipos, es muy conveniente y práctico</li></ul></li></ul>

Características Adicionales

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

brand

Módulo de Relé de Retardo de Tiempo ANGGREK 5V 12V 24V Baja Resistencia Interna

<ul><li>Gran rendimiento: este módulo de relé de retardo se puede ajustar continuamente desde 0,1 segundos como mínimo hasta 999 minutos como máximo, realizando el circuito de alta frecuencia, encendido y apagado rápido y frecuente, tiempos de conmutación infinitos</li><li>DC 5V a 30V: este módulo de control de ciclo de relé de retardo de tiempo Utiliza un voltaje amplio de 5 a 30 V, se puede utilizar en la mayoría de los equipos, es muy conveniente y práctico</li></ul>
