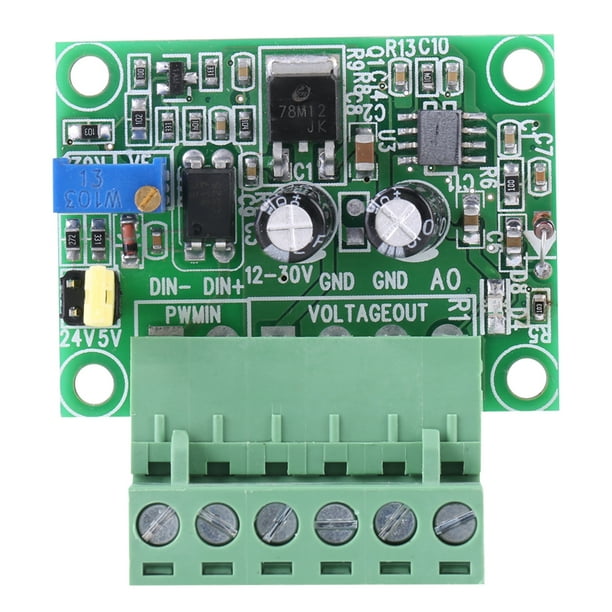

Name: Módulo convertidor PWM 13KHZ 010V Se?al PWM a voltaje Módulo convertidor de se?al analógica digital ajustable PLC Unbranded GS02567
Brand: Unbranded
SKU: 00666794809276
Availability: OutOfStock

Walmart US Ecommerce Website

GENERAL MERCHANDISE

PHARMACY

GROCERIES

VUDU

SPARK


ADVERTISING

SAVINGS CATCHER

GIFTCARDS

INHOME

AFFILIATE

ONEAPP

LOTUS

HELP

SMART_REORDER

GROCERY

CONV_COMMERCE

GlobalAlertBar baja la app - 080726

title_shipToHome_not_available

Temporizador digital Inteprter con pantalla LED Blanco

Artículos similares que te pueden gustar

A Customer Also Viewed- P13n July 21, 2023

MTZ Team | Brand Box - Item Page

MTZ Team | Marquee 1  Item Page

MTZ Team | Marquee 2  Item Page

MTZ Team | Skyline Item Page

Productos Recomendados

MTZ Team | Sponsored Carousels - Product Page

New Item Page - Reviews Placeholder Module, Wednesday, August 23, 2023, 12:41:20:28 pm

Product Description Placeholder Module, Monday, February 13, 2023, 11:53:20:01 am

Product Specifications Placeholder Module, Monday, February 13, 2023, 11:55:48:74 am

Product Warranty Placeholder Module, Monday, February 13, 2023, 11:57:01:93 am

Refurbished Info Placeholder Module, Monday, February 13, 2023, 11:56:19:46 am

SellersSecondaryBuyBox Module, Monday, February 13, 2023, 11:52:40:61 am

<div>PWM convierte se?ales digitales en se?al analógica (0 a 10 V).</div>

<ul><li>Specification: Condition: 100% brand new and high quality Current: Max. 12mA Power supply input voltage: 12-30V Size: Approx. 5 x 4.5cm / 1.97 x 1.77inch Weight: 20g Quantity: 1pc Using method: PWM signal input frequency range: 1KHZ-3KHZ PWM signal input level range: 4.5V to 10V peak to peak level, jumper inserted at 5V. This type signal mainly for conventional industrial control card (such as for MACH3 board), for 5V the CPU interface. 12 to 24V peak to peak level, jumper inserted at 24V. This type signal mainly for conventional PLC interface 0-10V analog voltage output explanation: When the signal input port is not connected, the output port gives 0V. The first time when we power on this module, we better calibrate it: find a 50% duty ratio signal, connect to DIN-, DIN+, the amplitude matches corresponding jumper. When frequency is at 1kHz ~ 3kHz, use a multi-meter to test AO, GND. The meter should be showing around 5.4V. We adjust the potentiometer on the converter module to make multi-meter shows about 5.4V. After this is done, we have calibrated and matched pulse signal with this converter module. &nbsp;The module has a definition of 0.1V. Output current 10mA. If duty ratio is in opposite to voltage, we can select PWM output pin STEP LOW / ACTIVE for MACH3 software. Package Included: 1 x PWM Signal to Voltage Converter Note: After power-up, when there is no input signal, the output is 0V. There is output only when there is input. <div>

 Descripcion corta: Producto de importación
Garante: No hay garantía disponible
Condiciones de Garantía: Este producto no cuenta con garantía, consultar términos y condiciones para envios internacionales
Garantía: 3
Caracteristicas clave: Producto de importación No hay factura disponible

</div></li></ul>

Marca

Color

Peso del Producto Ensamblado

Material

Dimensiones del producto ensamblado

Módulo convertidor PWM 13KHZ 010V Se?al PWM a voltaje Módulo convertidor de se?al analógica digital ajustable PLC Unbranded GS02567

Specification: Condition: 100% brand new and high quality Current: Max. 12mA Power supply input voltage: 12-30V Size: Approx. 5 x 4.5cm / 1.97 x 1.77inch Weight: 20g Quantity: 1pc Using method: PWM signal input frequency range: 1KHZ-3KHZ PWM signal input level range: 4.5V to 10V peak to peak level, jumper inserted at 5V. This type signal mainly for conventional industrial control card (such as for MACH3 board), for 5V the CPU interface. 12 to 24V peak to peak level, jumper inserted at 24V. This type signal mainly for conventional PLC interface 0-10V analog voltage output explanation: When the signal input port is not connected, the output port gives 0V. The first time when we power on this module, we better calibrate it: find a 50% duty ratio signal, connect to DIN-, DIN+, the amplitude matches corresponding jumper. When frequency is at 1kHz ~ 3kHz, use a multi-meter to test AO, GND. The meter should be showing around 5.4V. We adjust the potentiometer on the converter module to make multi-meter shows about 5.4V. After this is done, we have calibrated and matched pulse signal with this converter module. &nbsp;The module has a definition of 0.1V. Output current 10mA. If duty ratio is in opposite to voltage, we can select PWM output pin STEP LOW / ACTIVE for MACH3 software. Package Included: 1 x PWM Signal to Voltage Converter Note: After power-up, when there is no input signal, the output is 0V. There is output only when there is input. <div>

 Descripcion corta: Producto de importación
Garante: No hay garantía disponible
Condiciones de Garantía: Este producto no cuenta con garantía, consultar términos y condiciones para envios internacionales
Garantía: 3
Caracteristicas clave: Producto de importación No hay factura disponible
