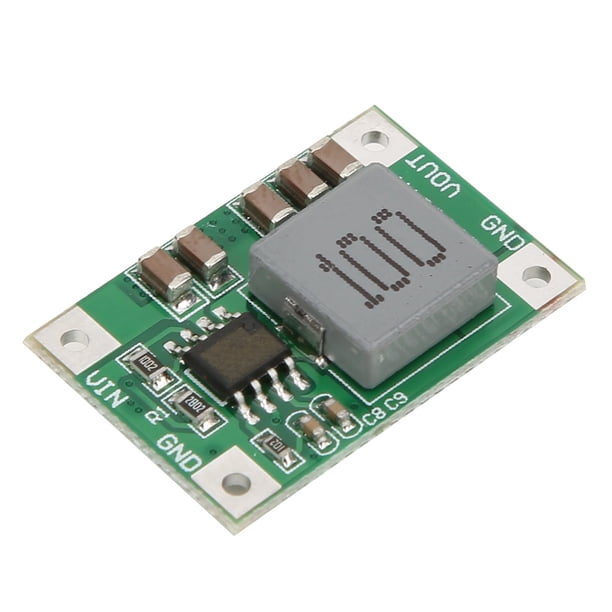

Name: Módulo convertidor buck 2 uds módulo reductor de 5-18V a 3/3 3v 37/42 v 5v 6V convertidor Buck de Motor ND1805TA5-18V a 3V ANGGREK Otros
Brand: Anggrek
SKU: 00648944605457
Availability: OutOfStock

Walmart US Ecommerce Website

GENERAL MERCHANDISE

PHARMACY

GROCERIES

VUDU

SPARK


ADVERTISING

SAVINGS CATCHER

GIFTCARDS

INHOME

AFFILIATE

ONEAPP

LOTUS

HELP

SMART_REORDER

GROCERY

CONV_COMMERCE

GlobalAlertBar baja la app - 080726

title_shipToHome_not_available

Cable Calibre 12 THW-LS / THHW-LS Iusa  100m Blanco

title_shipToHome_date_delivery

Refrigerador 10 Pies Midea Blue Steel Top Mount

Router Portátil Inalámbrico Quamtum MIFI HS1 BAIT

Microfono De Condensador De Estudio Rode Nt1 5ta Generacion

Extension USO RUDO Igoto NARANJA Exterior 16Awg 30M

Alambre THW-LS/THHW-LSCERoHS IUSA 100 M Rojo 10 AWG

Regulador de Voltaje Koblenz ER -2000

Refrigerador Hisense 7 Pies Plateado RR63D6WGX

TENIS NIÑO DC SHOES ADBS3003686DW SIMI ROJO 17-22

Lona Impermeable Reforzada AKSI Polietileno 3x3m Verde

Repetidor Steren COM-852

Regulador KOBLENZ RS-1410 8 Contactos 1410VA 700Watts

Protector de Voltaje Steren 920-010

Cable Calibre 12 THW-LS / THHW-LS Iusa  100m Negro

Regulador de Voltaje Steren 1000 Watts modelo REG-1050

Refrigerador 14 Pies Mabe con Despachador Black Mate

Lona Impermeable Reforzada Polietileno Maxtool 6x12m Roja

Compensador y regulador de voltaje de 2000 W para electrodomésticos Steren 920-200

Cable USB A a USB C Ugreen 480 Mbps Reforzado de 1 m color negro

Regulador ER-2300 VA Koblenz Negro 1000w

Supresor De Picos 125v 15a 1 Entrada 270j Sp1 Surtek

Cable THW-LS/THHW-LS CE RoHS IUSA 8 AWG en Caja 100 M Rojo

Regulador Koblenz ER-2550 1 Pieza

Refrigerador 29 Pies LG French Door Acero Inoxidable

Complementos para tu compra

A Customer Also Viewed- P13n July 21, 2023

MTZ Team | Brand Box - Item Page

MTZ Team | Marquee 1  Item Page

MTZ Team | Marquee 2  Item Page

MTZ Team | Skyline Item Page

Productos Recomendados

MTZ Team | Sponsored Carousels - Product Page

New Item Page - Reviews Placeholder Module, Wednesday, August 23, 2023, 12:41:20:28 pm

Product Description Placeholder Module, Monday, February 13, 2023, 11:53:20:01 am

Product Specifications Placeholder Module, Monday, February 13, 2023, 11:55:48:74 am

Product Warranty Placeholder Module, Monday, February 13, 2023, 11:57:01:93 am

Refurbished Info Placeholder Module, Monday, February 13, 2023, 11:56:19:46 am

SellersSecondaryBuyBox Module, Monday, February 13, 2023, 11:52:40:61 am

<div>Producto de importación$$Specification:Item Type: Step-Down Module Specificationoptional: $$3V: Input DC 5 ~ 18V, output DC 3V$$3.3V: Input DC 5 ~ 18V, output DC 3.3V$$3.7V: Input DC 5 ~ 18V, output DC 3.7V$$4.2V: Input DC 5 ~ 18V, output DC 4.2V$$5V: Input DC 6 ~ 18V, output DC 5V$$6V: Input DC 7 ~ 18V, output DC 6V$$Working Frequency: 500KHZ$$Conversion Efficiency: 77-93%$$Static Working Current: 216-18mA$$Operating Temperature: –40 degrees Celsius  to + 85 degrees Celsius $$Size: Approx. 27 x 18 x 5mm / 1.1 x 0.7 x 0.2in$$How to Drive A Motor : $$1. Motor drive$$2. Positive and negative series diodes$$Package List:2 x Step-Down Module$$Note:<div>This is a voltage step-down conversion module, and the following conditions must be observed when using it:</div><div>1. The input voltage cannot be higher than the nominal voltage, otherwise the module will be burned</div><div>2. The input power must be greater than the output power, otherwise the output voltage will be less than the nominal voltage.</div><div>3. The output load cannot be greater than the nominal load, otherwise the output voltage will be less than the nominal voltage.</div><div>4. This is a high power module. Be sure to use a thick enough wire and make  contact.</div><br>Producto de importación No hay factura disponible;</div>

<ul><li><ul><li>The maximum output current is 4A, and the short-term maximum output current is 5A</li><li>DC-DC step-down conversion module, the conversion efficiency is 77-93%</li><li>With thermal shutdown, input undervoltage protection, overcurrent protection and output short circuit protection function</li></ul></li></ul>

Marca

Color

Peso del Producto Ensamblado

Material

Dimensiones del producto ensamblado

Módulo convertidor buck 2 uds módulo reductor de 5-18V a 3/3 3v 37/42 v 5v 6V convertidor Buck de Motor ND1805TA5-18V a 3V ANGGREK Otros

<ul><li>The maximum output current is 4A, and the short-term maximum output current is 5A</li><li>DC-DC step-down conversion module, the conversion efficiency is 77-93%</li><li>With thermal shutdown, input undervoltage protection, overcurrent protection and output short circuit protection function</li></ul>
