<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Feature:

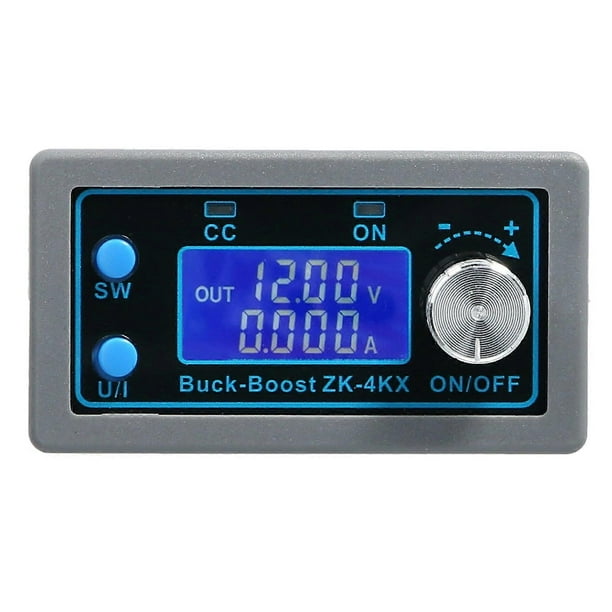

1. The LCD can display voltage input and output, output current, output power, output capacity, and output time.
2. Numerical control adjustment is accurate and fast, can increase and decrease voltage, output voltage can be adjusted arbitrarily from 0.5‑30V, and limit current can be adjusted arbitrarily from 0‑4A.
3. The input terminal is protected against reverse connection, and the reverse connection will not burn.
4. The output terminal is anti‑backflow, and there is no need to add an anti‑backflow diode when charging the battery.
5. The module can be set to turn on/off by default, with low output ripple and π‑type filtering.
6. After the module's working parameters exceed the protection threshold, the output will be automatically turned off, the heat sink is thickened, and the heat dissipation effect is good
Specification:
Item Type: Boost Power Supply Module
Model: ZK-4KX
Main Material: ABS+Aluminum
Input Voltage: 5.5-30V
Output Voltage: 0.5-30V
Output Current: Can work stably at 3A for a long time, and can get 4A with enhanced heat dissipation
Output Power: Natural heat dissipation 35W, enhanced heat dissipation 50W
Voltage Display Resolution: 0.01V
Current Display Resolution: 0.0-0.4A
Conversion Efficiency: About 88%
Soft Start: Yes (it may fail when the module with high power load is started)
Protection Mechanism:
Input anti-reverse connection;
Output anti-backflow;
Input Undervoltage Protection: 4.8-30V adjustable, default 4.8V
Output Overvoltage Protection: 0.5-31V adjustable, default 31V
Output Overcurrent Protection: 0 -4.1A adjustable, default 4.1A
Output Over Power Protection: 0 -50W adjustable, default 50W
Over Temperature Protection: 80-110℃ adjustable, default 110℃
Timeout Protection: 0 -100h adjustable, closed by default
Over-capacity Protection: 0 -60Ah adjustable, closed by default
Working Frequency: 180KHZ
LWH: Approx. 79 x 43 x 26mm / 3.1 x 1.7 x 1in
Panel Cut-Out Size: Approx. 71 x 39mm / 2.8 x 1.5in
.
Package List:
1 x Boost Power Supply Module</li></ul>

Marca

Nombre del Fabricante

Peso del Producto Ensamblado

Material

Dimensiones del producto ensamblado

Module d'alimentation Boost DC programmable et réglable, tension constante et courant constant ZK-4KX

Feature:
1. The LCD can display voltage input and output, output current, output power, output capacity, and output time.
2. Numerical control adjustment is accurate and fast, can increase and decrease voltage, output voltage can be adjusted arbitrarily from 0.5‑30V, and limit current can be adjusted arbitrarily from 0‑4A.
3. The input terminal is protected against reverse connection, and the reverse connection will not burn.
4. The output terminal is anti‑backflow, and there is no need to add an anti‑backflow diode when charging the battery.
5. The module can be set to turn on/off by default, with low output ripple and π‑type filtering.
6. After the module's working parameters exceed the protection threshold, the output will be automatically turned off, the heat sink is thickened, and the heat dissipation effect is good
Specification:
Item Type: Boost Power Supply Module
Model: ZK-4KX
Main Material: ABS+Aluminum
Input Voltage: 5.5-30V
Output Voltage: 0.5-30V
Output Current: Can work stably at 3A for a long time, and can get 4A with enhanced heat dissipation
Output Power: Natural heat dissipation 35W, enhanced heat dissipation 50W
Voltage Display Resolution: 0.01V
Current Display Resolution: 0.0-0.4A
Conversion Efficiency: About 88%
Soft Start: Yes (it may fail when the module with high power load is started)
Protection Mechanism:
Input anti-reverse connection;
Output anti-backflow;
Input Undervoltage Protection: 4.8-30V adjustable, default 4.8V
Output Overvoltage Protection: 0.5-31V adjustable, default 31V
Output Overcurrent Protection: 0 -4.1A adjustable, default 4.1A
Output Over Power Protection: 0 -50W adjustable, default 50W
Over Temperature Protection: 80-110℃ adjustable, default 110℃
Timeout Protection: 0 -100h adjustable, closed by default
Over-capacity Protection: 0 -60Ah adjustable, closed by default
Working Frequency: 180KHZ
LWH: Approx. 79 x 43 x 26mm / 3.1 x 1.7 x 1in
Panel Cut-Out Size: Approx. 71 x 39mm / 2.8 x 1.5in
.
Package List:
1 x Boost Power Supply Module
