<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Specification:

Model: LD-600S

Rated current: 0.3A/0.8A

US Type: 120V,60Hz

Input: 220~240V ac, 50/60Hz, 0.8A

Output: 25~150W Incandescent Lamps / Tungslen Filament Lamp

EU Output: 3-25W LED Driver / LED light / LED Bulb

TypeUS/EU

Switch Type: 3 way touch dimming dimming/ON OFF

Size48.2*32*16mm

Approval: TUV/EMC/CE/SAA


Touch switch connection:

Black with wire eared conductor

Red line connects one of the light bulbs

Brown wire connector wire L pole

The blue line is a common line, and the other line of the bulb and the plug line N pole are connected.


A Small transparent touch switch head:

White line: light line (the foot line on the board)

Long foot: positive (white line on the board)

Short foot: negative (black line on the board)


B Plastic touch switch head:

Middle foot: touch the foot

+: positive

-:negative electrode



Package included1 x Switch touch


Note:

1.Under the influence of light and the display, the color difference may decrease slightly.

2.Due to manual measurement, please allow size differences about 1-3cm. Thank you for your understanding</li></ul>

Marca

Peso del Producto Ensamblado

Nombre del Fabricante

Dimensiones del producto ensamblado

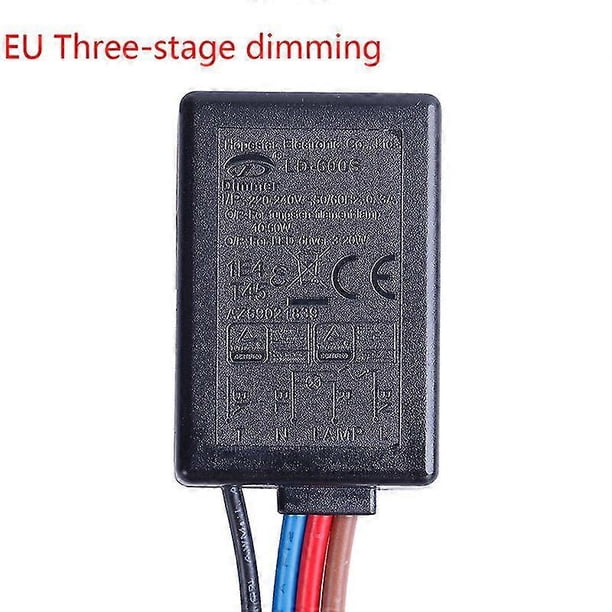

Ld-600s Build-in 3 Way Finger Touch Dimmer On/off Switch Us/eu

Specification:

Model: LD-600S

Rated current: 0.3A/0.8A

US Type: 120V,60Hz

Input: 220~240V ac, 50/60Hz, 0.8A

Output: 25~150W Incandescent Lamps / Tungslen Filament Lamp

EU Output: 3-25W LED Driver / LED light / LED Bulb

TypeUS/EU

Switch Type: 3 way touch dimming dimming/ON OFF

Size48.2*32*16mm

Approval: TUV/EMC/CE/SAA


Touch switch connection:

Black with wire eared conductor

Red line connects one of the light bulbs

Brown wire connector wire L pole

The blue line is a common line, and the other line of the bulb and the plug line N pole are connected.


A Small transparent touch switch head:

White line: light line (the foot line on the board)

Long foot: positive (white line on the board)

Short foot: negative (black line on the board)


B Plastic touch switch head:

Middle foot: touch the foot

+: positive

-:negative electrode



Package included1 x Switch touch


Note:

1.Under the influence of light and the display, the color difference may decrease slightly.

2.Due to manual measurement, please allow size differences about 1-3cm. Thank you for your understanding
