<div>¡El producto es muy bueno, ¡ creo que te gustará!</div>

<ul><li>1、The switch consists of base, cover and arc extinguishing chamber, which are all made of arc resistant plastic. 2、The static contacts are directly mounted on the base. Each arc extinguishing chamber has two parts of the inner one and the outer one, which adopt multi-plate metal arc extinguisher to enhance the arc extinguisher ability and the contact life. 3、NT type fuse link is installed inside the cover. The cover can rotate in a fan shape along the support parts, with large electrical isolation distance to meet the requirements of the isolator switch. The cover can be easily removed from the base, making it easy to mount and replace the fuse link. 4、There are two groups of mounting holes on the base to meet the requirements of installation inside various switch cabinets or on the panel. 5、Auxiliary contacts can be installed on the two sides of the switch as needed to emit the signal indicating the state of the switch.
<div><div>Item Type: Disconnect Switch<br>Model: HR6-400/310<br>Rated Insulation Voltage: 660V<br>Conventional Heating Current: 400A<br>Rated Operating Current: 380V: 400A, 660V: 315A<br>Rated Limit Short Circuit Current: 380V: 100KA, 660V: 50KA<br>Maximum Expected Peak Current: 100KA<br>Pollution Level: 3<br>Installation Category: III<br>Material: Copper, Brass (Optional)</div></div>
1 x Disconnect Switch</li></ul>

Cantidad de Piezas

País de Origen

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Condición

Número de Piezas

Material

Número de polos

Ancho del Producto Ensamblado

Gama Color

Color

Número de Modelo

Altura del Producto Ensamblado

Marca

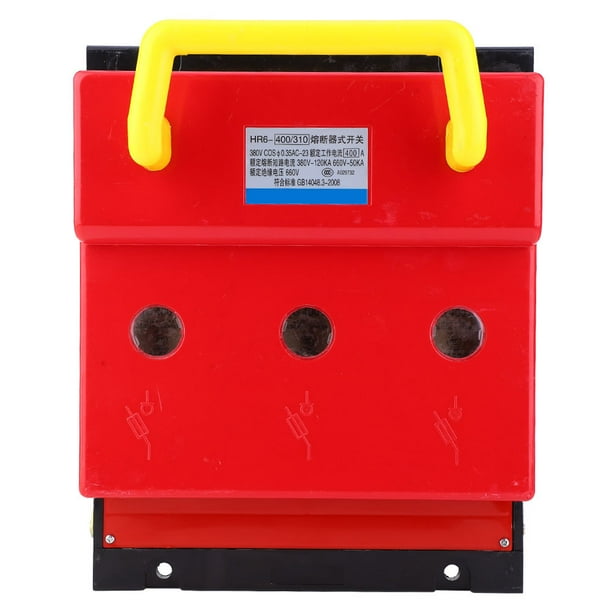

HR6-400/310 400A Fuse Disconnect Switch Isolator Disconnector AC 380/660VBrass

1、The switch consists of base, cover and arc extinguishing chamber, which are all made of arc resistant plastic. 2、The static contacts are directly mounted on the base. Each arc extinguishing chamber has two parts of the inner one and the outer one, which adopt multi-plate metal arc extinguisher to enhance the arc extinguisher ability and the contact life. 3、NT type fuse link is installed inside the cover. The cover can rotate in a fan shape along the support parts, with large electrical isolation distance to meet the requirements of the isolator switch. The cover can be easily removed from the base, making it easy to mount and replace the fuse link. 4、There are two groups of mounting holes on the base to meet the requirements of installation inside various switch cabinets or on the panel. 5、Auxiliary contacts can be installed on the two sides of the switch as needed to emit the signal indicating the state of the switch.
<div><div>Item Type: Disconnect Switch<br>Model: HR6-400/310<br>Rated Insulation Voltage: 660V<br>Conventional Heating Current: 400A<br>Rated Operating Current: 380V: 400A, 660V: 315A<br>Rated Limit Short Circuit Current: 380V: 100KA, 660V: 50KA<br>Maximum Expected Peak Current: 100KA<br>Pollution Level: 3<br>Installation Category: III<br>Material: Copper, Brass (Optional)</div></div>
1 x Disconnect Switch
