<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Item Type: Flexible Coil Current Sensor

Material: ABS

Color: As shown in the picture

Model: ETCR-200FA

Application: AC current detection



FunctionDetection of AC leakage current, large current, high order harmonic current, complex waveform current, transient inrush current, phase, electric energy, power, power factor, etc.

Detection methodFlexible coil CT: The output signal is the differentiation of current with respect to time. By integrating the output voltage signal, the input current can be truly restored

Coil diameter7.5mm

Quantity process0A~10000A~higher

Resolution10mA

Accuracy class1.0%FS (50Hz/60Hz; 232, below 70%RH, the wire is at the center of the coil)

Phase error0.1(50Hz/60Hz; 232)

Output Interface3.5mm audio frequency plug/BNC plug/tap

Electric field interferenceNo hysteresis effect, no interference from external electric field

Wire positionThe wire to be tested is at the center of the coil, and the position error affects 0.3%FS

Current frequency45Hz~70Hz (frequency of measured current)

Response frequency0.1Hz~1MHz

Line voltageLine test below AC 1000V

Working temperature and humidity-20~50; below 80%rh

Storage temperature and humidity-10~60; below 70%rh

Dielectric strengthAC 2000V/rms (both ends of the coil after unlocking and unfolding)

Suitable for safety regulationsCAT IV 600V, CAT III 1000V</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

brand

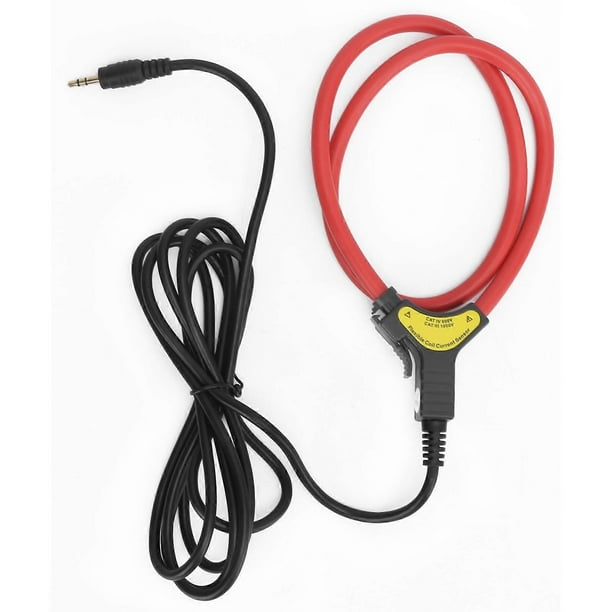

ETCR-200FA Flexible Coil Current Sensor Multifunctional AC Leakage Current Sensor Probe Accessory

Item Type: Flexible Coil Current Sensor

Material: ABS

Color: As shown in the picture

Model: ETCR-200FA

Application: AC current detection



FunctionDetection of AC leakage current, large current, high order harmonic current, complex waveform current, transient inrush current, phase, electric energy, power, power factor, etc.

Detection methodFlexible coil CT: The output signal is the differentiation of current with respect to time. By integrating the output voltage signal, the input current can be truly restored

Coil diameter7.5mm

Quantity process0A~10000A~higher

Resolution10mA

Accuracy class1.0%FS (50Hz/60Hz; 232, below 70%RH, the wire is at the center of the coil)

Phase error0.1(50Hz/60Hz; 232)

Output Interface3.5mm audio frequency plug/BNC plug/tap

Electric field interferenceNo hysteresis effect, no interference from external electric field

Wire positionThe wire to be tested is at the center of the coil, and the position error affects 0.3%FS

Current frequency45Hz~70Hz (frequency of measured current)

Response frequency0.1Hz~1MHz

Line voltageLine test below AC 1000V

Working temperature and humidity-20~50; below 80%rh

Storage temperature and humidity-10~60; below 70%rh

Dielectric strengthAC 2000V/rms (both ends of the coil after unlocking and unfolding)

Suitable for safety regulationsCAT IV 600V, CAT III 1000V
